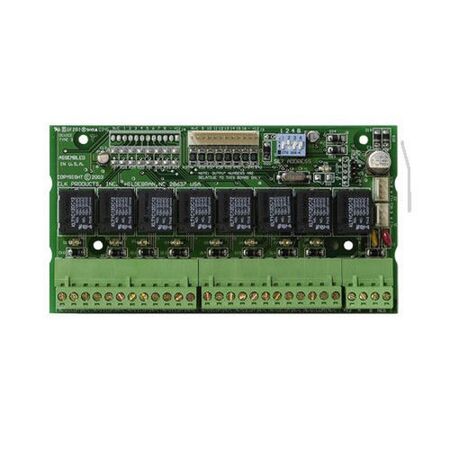

M1 Output Expander 16 Outputs | 8 Relay 8 Voltage | 12 VDC by Ness
M1 output expander with 16 outputs (8 relay, 8 voltage) — ideal for home automation and security systems. Built for seamless integration with M1 control panels, featuring efficient power management and diagnostic LED display.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: M1-XOVR 16 OUTPUT EXPANDER 8 RELAY 8 V
Brand: Ness
SKU: 101-212
Alternatively Known As: M1 Output Expander, M1 Relay Module, M1 Voltage Output Module
Technical Specifications
- Voltage Outputs: 12 VDC @ 50 mA each
- Relay Outputs: SPDT rated for 7 Amps @ 28VDC, 10 Amps @ 125 VAC
- Wire Harness Length: 300mm
- Operating Power Range: 9 to 14 VDC
- Current Draw: 65 mA Nom., 330 mA Max.
- Dimensions (H x L x W): 19mm x 82.5mm x 152mm
- Weight: 0.5 kg
Key Features
- Adds 16 outputs (8 voltage, 8 relays) to M1 Control panels.
- Operates from 4-wire data bus.
- Up to 12 output expanders may be used for a total of 208 outputs.
- Voltage outputs can be converted to relays using M1RB Relay Board.
- Status LED with diagnostic display.
Professional Installation Requirements
- Professional installation by a qualified technician is recommended for optimal performance.
Applications
- Home automation systems
- Security systems
- Industrial control systems
Standards & Compliance
- Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
- Efficient power management reduces energy consumption.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The M1-XOVR 16 Output Expander is available now for immediate purchase. Ideal for enhancing automation systems.
