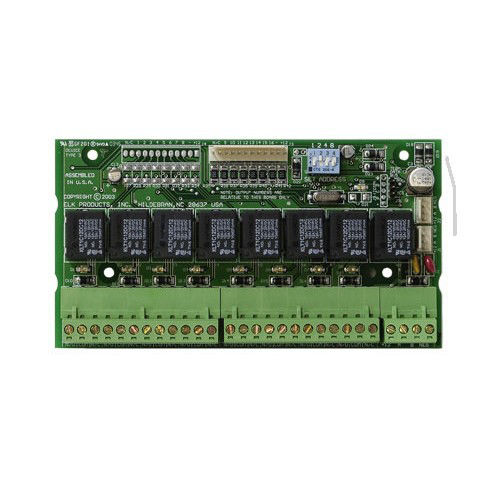

M1 Output Expander 16 Outputs 8 Relay 8 Voltage 12VDC Ness

BRAND: Ness
SKU: 101-212
$317.10 List price: $422.80
+ −
30 Days Return Electricians Unlock Trade Access
Ness M1 output expander features 16 outputs, 8 relay, 8 voltage and 12VDC operation. Ideal for expanding M1 alarm systems.

Alternatively Known As: ELK-M1XOVR, Ness M1 8-Relay/8-Voltage Output Expander

Technical Specifications
  • Output Configuration: 8 voltage outputs and 8 SPDT relay outputs
  • Voltage Outputs: 12 VDC at 50 mA maximum per output
  • Relay Contact Rating: 7 A at 28 VDC; 10 A at 125 VAC
  • Operating Voltage Range: 9–14 VDC
  • Typical Current Draw: 65 mA
  • Maximum Current Draw: 330 mA
  • Data Bus: Four-wire M1 data bus
  • Wire Harness: 12-conductor flying-lead harness, approximately 300 mm
  • Addressing: DIP switch address settings
  • Expansion Capacity: Up to 12 output expanders on a compatible M1 system
  • Status Indication: Diagnostic status LED
  • Compatibility: Ness M1 and compatible ELK M1 Gold/M1EZ8 control panels
  • Dimensions (H x L x W): 19mm x 152mm x 83mm
  • Weight: 0.2 kg
Key Features
  • Adds 16 programmable outputs to compatible M1 alarm control panels
  • Combines eight low-current 12 VDC outputs with eight SPDT relay outputs
  • Relay outputs can switch higher-current loads than the voltage outputs
  • Voltage outputs can be converted to relay outputs using compatible relay boards
  • Connects through the M1 four-wire data bus
  • DIP switch addressing supports multiple expanders
  • Diagnostic LED provides module status information
  • Designed for enclosure or structured wiring plate mounting
Professional Installation Requirements
  • Installation should be performed by a suitably qualified security-alarm technician. Follow the Ness M1 installation instructions, observe data-bus termination requirements and isolate power before wiring. Any connection to mains-voltage loads must be completed by a licensed electrical contractor.
Applications
  • Expanding programmable outputs on Ness M1 security alarm systems
  • Controlling low-current indicators, relays, locks and automation devices
  • Switching auxiliary security, access-control and building-automation loads
  • Adding relay-controlled outputs to compatible M1 Gold or M1EZ8 installations
Standards & Compliance
  • AS/NZS 2201.1:2007 is applicable to the design, installation, commissioning and maintenance of intruder alarm systems incorporating control equipment; product-specific compliance should be confirmed from the installation documentation.
Environmental Benefits
  • Operates from a low-voltage 12 VDC security-system supply rather than requiring a dedicated mains supply
  • Electronic expansion can extend the useful capability of an existing alarm controller, reducing the need for complete system replacement
  • Ness publishes RoHS compliance information for its product range; confirm model-specific documentation where formal RoHS evidence is required
Warranty Information

Ness manufactured or supplied products are covered by a 3-year warranty from the date of purchase, unless otherwise specified. Warranty claims require proof of purchase and return through an authorised Ness channel.

Available Now

Available through Ness and authorised Australian security-system distributors, subject to current product range and distributor stock.
