M1 304MHz Radio Receiver | Multi-Channel | 144 Devices | Compact Design by Ness
M1 304MHz radio receiver with multi-channel support for up to 144 wireless transmitters—ideal for security and automation systems. Built for seamless integration, with compact design and easy installation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

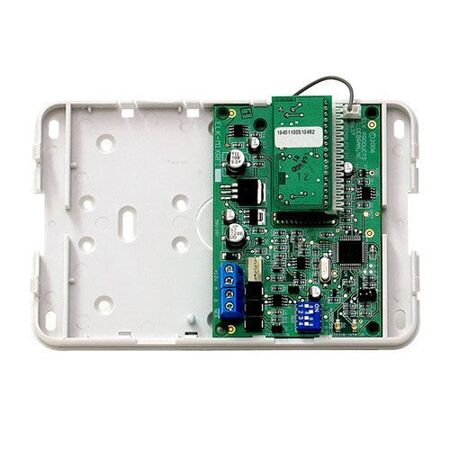

Product Name/Title: M1 304MHz RADIO RECEIVER
Brand: Ness
SKU: 101-258
Alternatively Known As: Ness M1RF Receiver, Ness Wireless Receiver, Ness Radio Receiver
Technical Specifications
- Max. radio devices: 144
- Device types: Keys and/or detectors
- Protocol: Ness proprietary; 24-bit non-encrypted and/or 56-bit encrypted
- Receiver type: Superheterodyne
- Frequency: 303.875MHz (Other frequencies available for other countries)
- Bandwidth (3dB): 800kHz
- Sensitivity: > -100dB
- Operating voltage: 9-14V
- Dimensions (H x L x W): 50mm x 100mm x 100mm
- Weight: 0.5 kg
Key Features
- Multi-channel Receiver for up to 144 Wireless Transmitters.
- Operates on the 4-Wire Data Bus.
- DIP Switch Address Settings.
- Flash Memory for Firmware Updating.
- Status and Diagnostic LED.
- On-Board EOL Bus Termination Jumper.
- Supplied in easy to mount equipment housing.
Professional Installation Requirements
- Professional installation by a qualified technician is recommended for optimal performance.
Applications
- Security: Integration with Ness proprietary radio transmitting devices.
- Automation: Enhancing wireless communication in security systems.
Standards & Compliance
- Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
- Reduces the need for hard wiring, minimizing material waste and installation impact.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Ness M1 304MHz Radio Receiver is available now for immediate purchase. Ideal for enhancing security systems with wireless capabilities.
