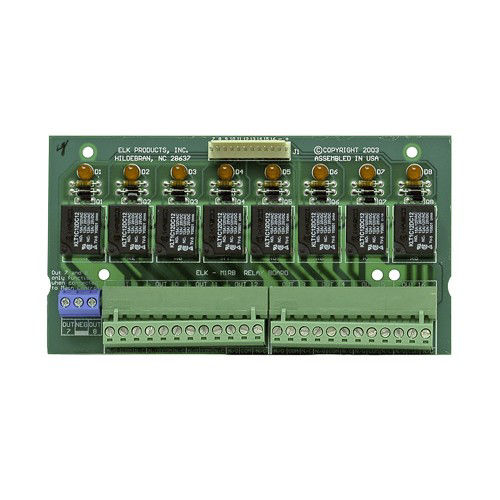

M1 Relay Board 8 Form C 8 Channel SPDT Relays Ness
Ness M1 relay board features 8 Form C outputs, 8 channels and SPDT relays. Ideal for M1 alarm system switching.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Ness M1 Relay Board, M1RB Output Relay Board, 8-Way Form C Relay Board, 101-213 Relay Board
Technical Specifications
- Relay Outputs: 8 Form C SPDT dry-contact relays
- Contact Rating: 12 A at 28 VDC and 125 VAC
- Operating Voltage: 12 VDC nominal
- Current Draw: 0 mA idle; 250 mA maximum
- Coil Protection: Diode protection across relay coils
- Connection: 12-conductor plug-in wiring harness
- Harness Length: 600 mm
- Terminals: Removable plug-in terminal blocks
- Status Indication: LED indicator for each relay
- Compatibility: Ness M1, M1G, M1XOV and M1XOVR systems
- Weight Basis: Approximate estimate; manufacturer publishes dimensions but not product weight
- Dimensions (H x L x W): 19mm x 152mm x 82.5mm
- Weight: 0.18 kg
Key Features
- Eight independently controlled SPDT Form C relay outputs
- Dry contacts suitable for switching separate AC or DC loads within the rated limits
- Converts compatible M1 low-current voltage outputs into relay outputs
- LED status indicators on all eight relays
- Removable plug-in terminal blocks simplify servicing
- Supplied 600 mm, 12-conductor wiring harness
- Designed for mounting inside compatible Ness M1 enclosures using board glides
- Suitable for general-purpose alarm, access-control and automation switching
Professional Installation Requirements
- Installation should be performed by a qualified alarm or security technician. Any wiring that switches 125 VAC or forms part of a fixed electrical installation must be completed and verified by a licensed electrician in accordance with applicable Australian electrical requirements.
Applications
- Expanding Ness M1 alarm systems with additional relay outputs
- Switching access-control locks, indicators and auxiliary alarm equipment
- Controlling lighting, automation interfaces and other low-voltage loads
- General-purpose AC or DC switching within the relay contact ratings
Standards & Compliance
- AS/NZS 2201.1 is relevant to the design, installation and maintenance of associated intruder alarm systems; Ness does not state product-specific compliance for the relay board
- AS/NZS 3000:2018 may apply where the relay contacts are used within a fixed electrical installation; product-specific compliance is not stated by the manufacturer
Environmental Benefits
- Ness publishes a RoHS certificate of compliance for its product range, supporting restriction of hazardous substances
- Relay-based expansion can extend the service life of a compatible M1 alarm installation by adding switching capacity without replacing the control panel
- Durable PCB, relay and terminal-board construction can reduce replacement waste over the operating life of the system
Warranty Information
Ness manufactured or supplied products are covered by a 3-year warranty from the date of purchase, unless otherwise specified. Warranty claims are subject to Ness terms and conditions.
Available Now
Available through Ness and authorised Australian security-equipment distributors, subject to current product range and distributor stock.
