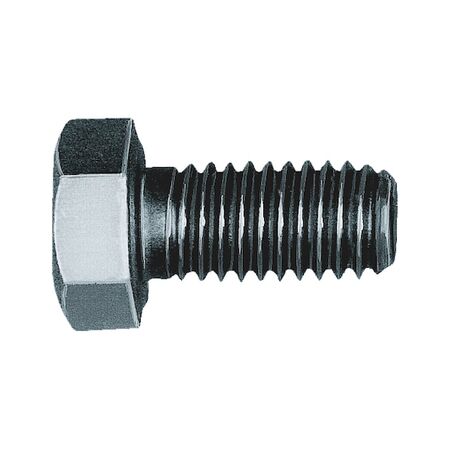

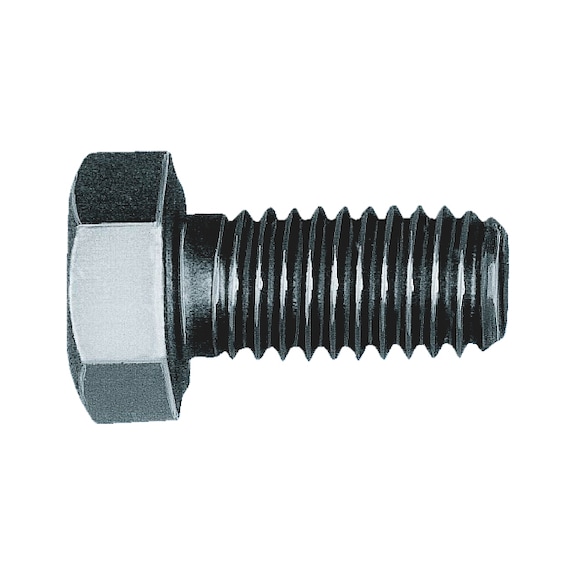

M10 x 1.25 Zinc Plated Steel Hexagon Head Bolt | 25mm Length | High Strength 8.8 | Corrosion Resistant | by Wurth
The M10 x 1.25 Zinc Plated Steel Hexagon Head Bolt is designed for high-strength applications, featuring a fine pitch full thread for secure fastening. Ideal for automotive and industrial use, this bolt ensures reliable performance with its corrosion-resistant zinc plating and RoHS compliance, making it a perfect choice for mechanical fastening needs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: M10 x 1.25 Zinc Plated Steel Hexagon Head Bolt | 25mm Length | High Strength 8.8 | Corrosion Resistant | by Wurth
Brand: Wurth
SKU: 601025
Alternatively Known As: Metric Hex Bolt M10 Fine Thread, Zinc Plated Hex Head Bolt, M10 x 1.25 Bolt
Technical Specifications
- Thread type x nominal diameter x pitch (d1): M10 x 1.25
- Length (l1): 25 mm
- Head height (k1): 6.4 mm
- Material: Steel
- Property class: 8.8
- Surface: Zinc plated
- Head type: Hexagon head
- Drive type: Outer hexagon
- External drive (s1): WS14
- Thread type: Metric thread
- Pitch: 1.25 mm
- Thread form: Fine pitch thread
- Thread design: Full thread
- Product class: A
- RoHS-compliant: Yes
- Dimensions (H x L x W): 6.4mm x 25mm x 10mm
- Weight: 0.1 kg
Key Features
- Steel 8.8 property class for high strength
- Zinc plated surface for corrosion resistance
- Hexagon head with outer hexagon drive (WS14) for easy tightening
- Fine pitch full thread design for secure fastening
- RoHS-compliant ensuring environmental safety
Professional Installation Requirements
- Installation by a qualified technician or mechanic is recommended to ensure proper torque and secure fastening.
Applications
- Automotive: Suitable for a wide range of Japanese vehicles and equipment
- Industrial: Machinery assembly and maintenance
- General: Mechanical fastening requiring fine pitch metric bolts
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- RoHS-compliant material reduces hazardous substances
- Zinc plating extends product life reducing waste and replacement frequency
Warranty Information
Wurth provides warranty against manufacturing defects as per company policy.
Available Now
The Wurth M10 x 1.25 Zinc Plated Steel Hexagon Head Bolt 25mm is available now for immediate purchase. Ideal for automotive, industrial, and mechanical fastening applications.
