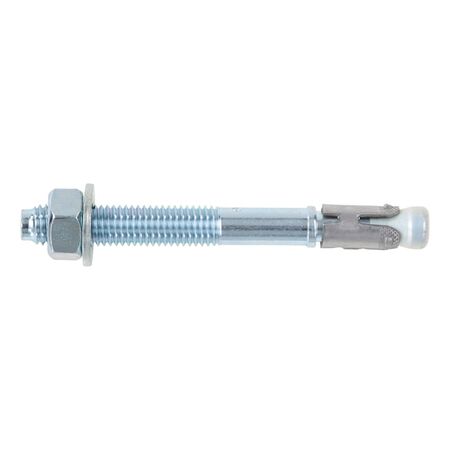

M10 Anchor Bolt | High Load Capacity | Zinc Plated Steel | @Pack of 50 | by Wurth
M10 Anchor Bolt designed for high load capacity and zinc-plated for corrosion resistance—ideal for heavy steel structures and fence systems. This anchor bolt offers immediate load-bearing capacity with no waiting times, making it perfect for professional installations that require reliability and efficiency.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Metric anchor diameter: M10
- Anchor length: 110 mm
- Attachment height (t fix): 30 mm
- Max. attachment height reduced (t fix, red): 50 mm
- Effective anchoring depth (h ef): 60 mm
- Effective anchoring depth reduced (h ef, red): 40 mm
- Width across flats: 17 mm
- Nominal drill-bit diameter (d 0): 10 mm
- Drill hole depth (h 1): 75 mm
- Drill hole depth reduced (h 1, red): 55 mm
- Material: Steel
- Surface: Zinc plated
- Torque during anchoring (T inst): 25 Nm
- Through-hole in the component to be connected (d f): 12 mm
- Approval: ETA-99/0011
- Fire resistance: F30, F60, F90, F120 (M8-M16) according to DIN 4102-2
- Dimensions (H x L x W): 110mm x 110mm x 17mm
- Weight: 0.5 kg
Key Features
- Bolt anchor for high loads in cracked and non-cracked concrete
- Steel, zinc-plated for corrosion resistance
- Immediate load-bearing capacity with no waiting times
- Time-saving in-place installation
- Reduced effective anchorage depth
- Minimised drilling for time-saving
- Versatile applications
- Proof of Performance ETA-99/0011 for individual fixing points
- Seismic performance category C1 and C2 (M8-M20)
- Fire resistance ratings F30, F60, F90, F120 according to DIN 4102-2
- Fire resistance R30, R60, R90, R120 TR020 included in ETA-99/0011
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure correct drilling, setting torque, and compliance with structural requirements.
Applications
- Heavy steel structures
- Fence systems
- Post support brackets
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Durable steel construction reduces need for frequent replacements
- Zinc plating provides corrosion resistance extending product life
Warranty Information
Warranty details available upon request from Wurth; typically includes coverage against manufacturing defects.
Available Now
The Wurth Fixanchor W FAZ S ANC W FAZ S A2K M10X110 is available for immediate purchase, ideal for heavy steel structures, fence systems, and post support brackets.
