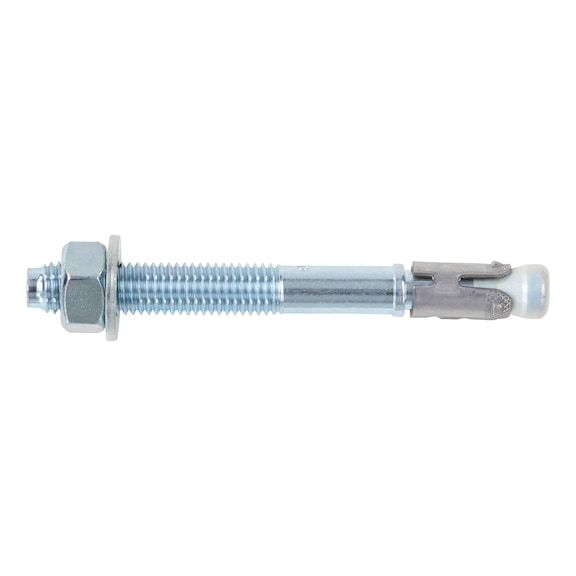

M10 Bolt Anchor | Zinc Plated Steel | High Load Capacity | @Pack of 50 | by Wurth
M10 Bolt Anchor designed for high load applications in cracked and non-cracked concrete. Made from zinc-plated steel, it offers immediate load-bearing capacity with no waiting times, making it ideal for heavy steel structures, fence systems, and post support brackets. This anchor is engineered for durability and corrosion resistance, ensuring long-lasting performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Metric anchor diameter: M10
- Anchor length: 130 mm
- Attachment height: 50 mm
- Max. attachment height reduced: 70 mm
- Effective anchoring depth: 60 mm
- Effective anchoring depth reduced: 40 mm
- Width across flats: 17 mm
- Nominal drill-bit diameter: 10 mm
- Drill hole depth: 75 mm
- Drill hole depth reduced: 55 mm
- Material: Steel
- Surface: Zinc plated
- Torque during anchoring: 25 Nm
- Through-hole in component to be connected: 12 mm
- Approval: ETA-99/0011
- Fire resistance: F30, F60, F90, F120 (M8-M16) per DIN 4102-2
- Dimensions (H x L x W): 130mm x 130mm x 17mm
- Weight: 0.5 kg
Key Features
- Bolt anchor for high loads in cracked and non-cracked concrete
- Steel, zinc-plated for corrosion resistance
- Immediate load-bearing capacity with no waiting times
- Time-saving in-place installation
- Reduced effective anchorage depth
- Minimised drilling for time-saving
- Versatile applications
- Proof of Performance ETA-99/0011 for individual fixing points
- Seismic performance category C1 and C2 (M8-M20)
- Fire resistance ratings F30, F60, F90, F120 according to DIN 4102-2
- Fire resistance R30, R60, R90, R120 included in ETA-99/0011
Professional Installation Requirements
- Installation should be performed by qualified professionals following manufacturer guidelines and relevant Australian standards to ensure safety and performance.
Applications
- Heavy steel structures
- Fence systems
- Post support brackets
Standards & Compliance
- AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Durable steel construction reduces need for frequent replacements
- Zinc plating extends product life, reducing waste
Warranty Information
Warranty details available upon request from Wurth; typically covers manufacturing defects.
Available Now
The Wurth Fixanchor W FAZ S ANC W FAZ S A2K M10x130 Bolt Anchor 50 PCS is available for immediate purchase, ideal for heavy steel structures, fence systems, and post support brackets.
