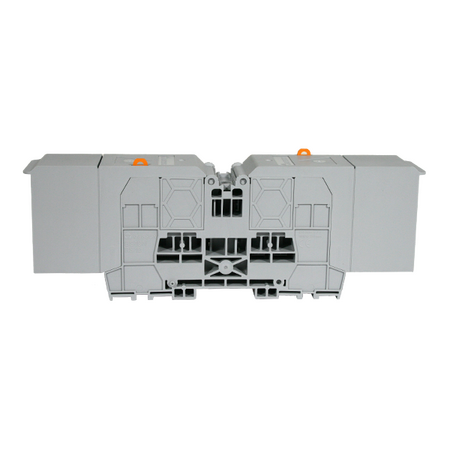

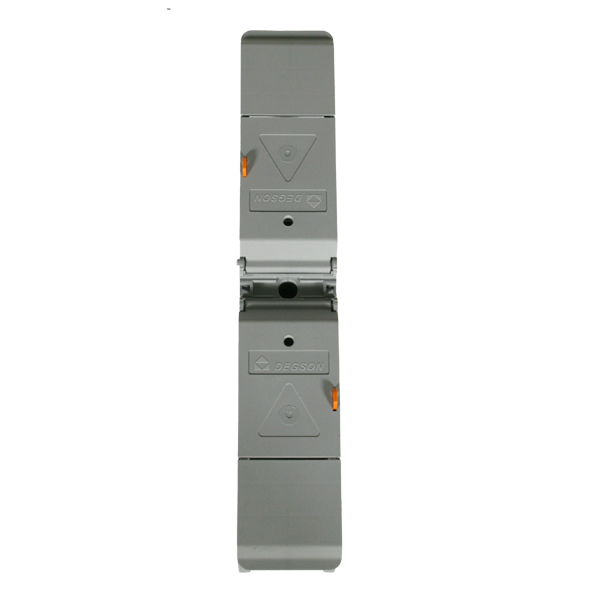

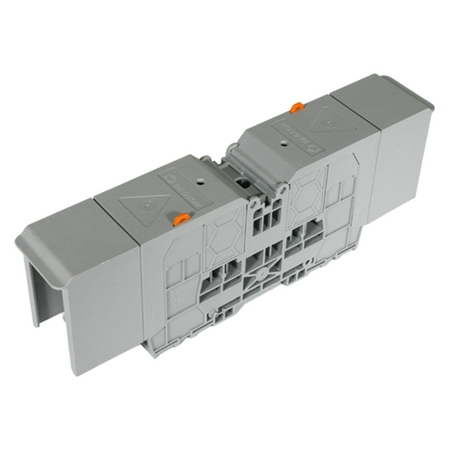

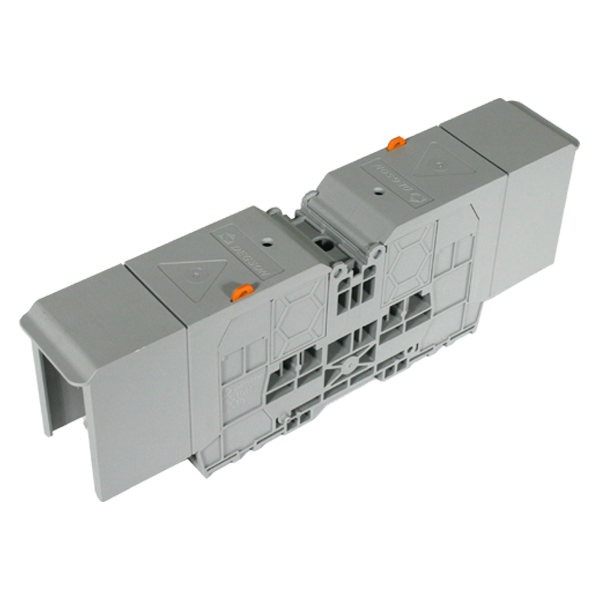

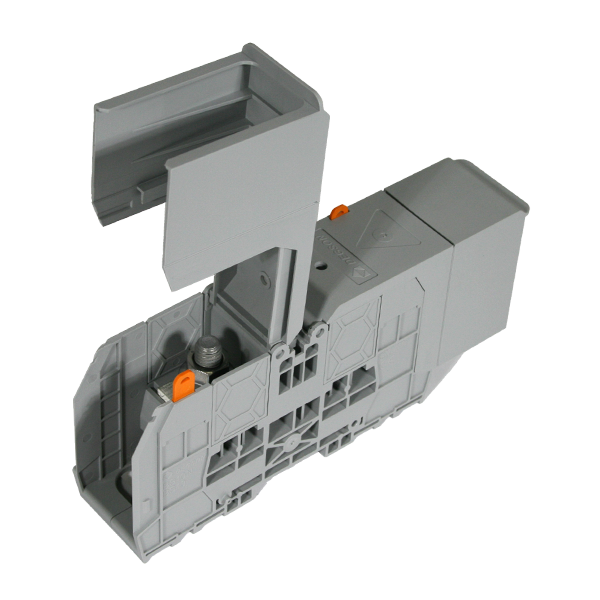

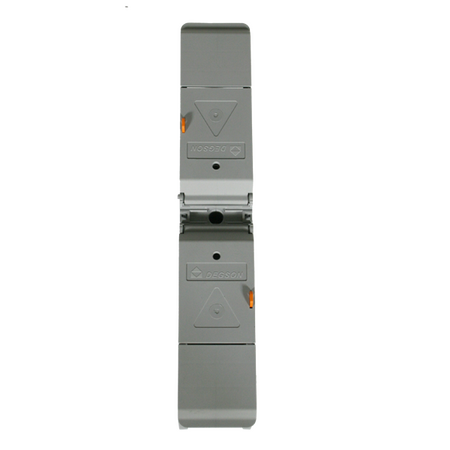

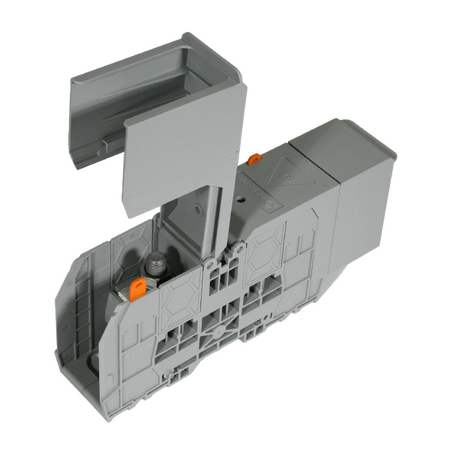

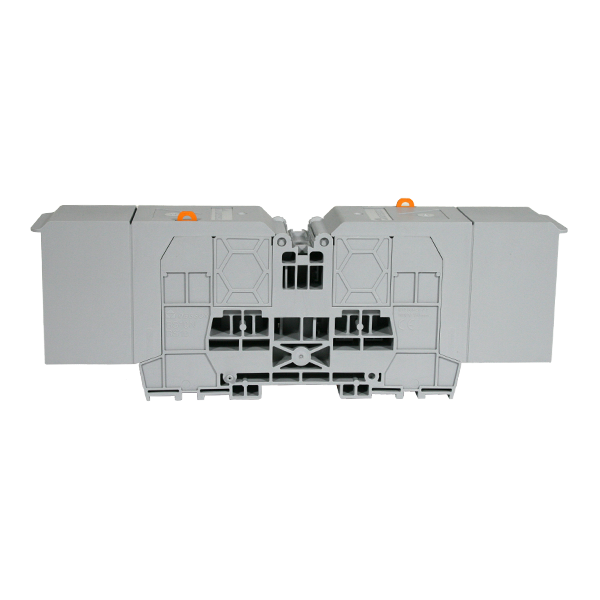

M10 Bolt Connection Power Terminal 150mm2 | 309A Current Rating | Secure M10 Bolt Size | Pack of 5 by Eltech
M10 bolt connection power terminal with a high current rating of 309A and designed for 150mm2 cable size—ideal for industrial and commercial electrical connections. Built for reliable performance, with secure M10 bolt size and packaged in convenient boxes of 5 units.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: M10 Bolt Connection Power Terminal 150mm2 309A
Brand: Eltech
SKU: BS10-GY
Alternatively Known As: M10 Power Terminal, M10 Bolt Terminal, 150mm2 Power Connector, High Current Terminal
Technical Specifications
- Current Rating: 309A
- Bolt Size: M10
- Cable Size Compatibility: 150mm2
- MOQ: 1 unit
- Box Quantity: 5 units
- Dimensions (H x L x W): 20mm x 100mm x 50mm
- Weight: 0.1 kg
Key Features
- High current capacity of 309A
- M10 bolt size for secure and reliable connections
- Designed for 150mm2 cable size
- Packaged in boxes of 5 units
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards.
Applications
- Electrical connections in automation and control systems
- Power distribution and terminal connections in industrial equipment
- Suitable for use in electrical panels and switchboards
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable construction reduces need for frequent replacements, minimizing waste
- Supports efficient electrical connections reducing energy loss
Warranty Information
Standard manufacturer warranty applies. Please refer to Eltech for specific warranty details.
Available Now
The Eltech M10 Bolt Connection Power Terminal 150mm2 309A is available now for immediate purchase. Ideal for industrial and commercial electrical connection applications.
