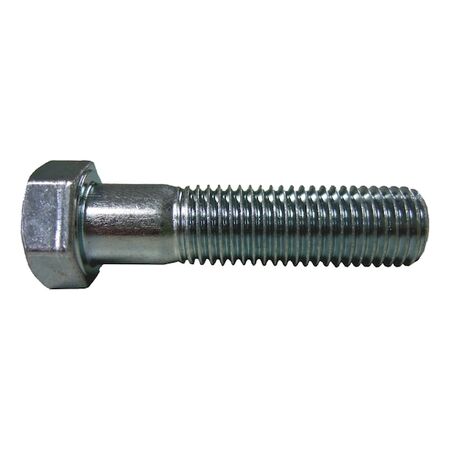

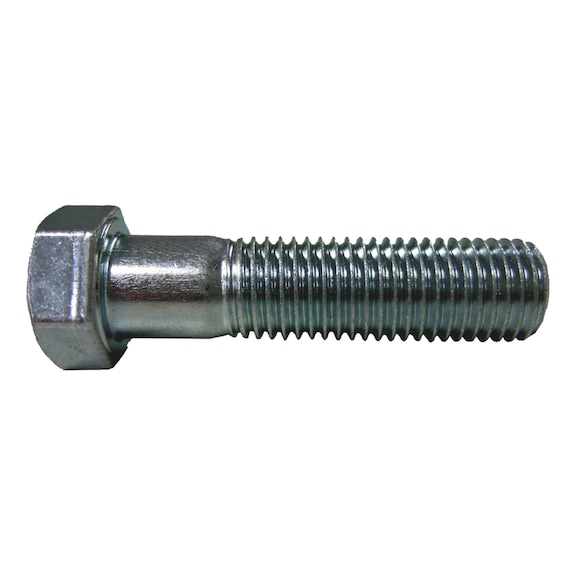

M10 Fine Thread Zinc Plated Hex Head Bolt | Steel 8.8 | RoHS Compliant | by Wurth
The M10 Fine Thread Zinc Plated Hex Head Bolt is designed for high-strength fastening in automotive and industrial applications. With a property class of 8.8 and a corrosion-resistant zinc plated surface, this bolt ensures durability and reliability. Ideal for qualified technicians, it features a hexagon head for secure tightening and complies with AS/NZS 1252 standards, making it perfect for a variety of mechanical and assembly tasks.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: M10 Fine Thread Zinc Plated Hex Head Bolt | Steel 8.8 | RoHS Compliant | by Wurth
Brand: Wurth
SKU: 601050
Alternatively Known As: Metric Hex Bolt M10 Fine Thread, Zinc Plated Hex Head Bolt, DIN 961 Equivalent Bolt
Technical Specifications
- Thread type x nominal diameter x pitch (d1): M10 x 1.25
- Length (l1): 50 mm
- Head height (k1): 6.4 mm
- Material: Steel
- Property class: 8.8
- Surface: Zinc plated
- Head type: Hexagon head
- Drive type: Outer hexagon
- External drive (s1): WS14
- Thread type: Metric thread
- Pitch: 1.25 mm
- Thread form: Fine pitch thread
- Thread design: Partial thread
- Shank diameter: 10 mm
- Thread length (metric thread): 26 mm
- Product class: A
- RoHS-compliant: Yes
- Dimensions (H x L x W): 6.4mm x 50mm x 14mm
- Weight: 0.1 kg
Key Features
- Steel 8.8 property class for high strength
- Zinc plated surface for corrosion resistance
- Hexagon head with outer hexagon drive (WS14) for secure tightening
- Fine pitch metric thread (M10 x 1.25) with partial thread design
- RoHS-compliant ensuring environmental safety
Professional Installation Requirements
- Installation by a qualified technician or mechanic is recommended to ensure proper torque and safety.
Applications
- Automotive: Suitable for a wide range of Japanese vehicles and equipment
- Industrial: General fastening applications requiring fine pitch metric bolts
- Mechanical: Equipment assembly and maintenance requiring high strength bolts
Standards & Compliance
- Complies with AS/NZS 1252 for metric bolts and screws
Environmental Benefits
- RoHS-compliant material reduces hazardous substances
- Zinc plating extends product life reducing waste and replacement frequency
Warranty Information
Wurth provides warranty against manufacturing defects as per company policy.
Available Now
The Wurth M10 x 1.25 Zinc Plated Steel Hexagon Head Bolt 50mm is available for immediate purchase, ideal for automotive and industrial fastening applications.
