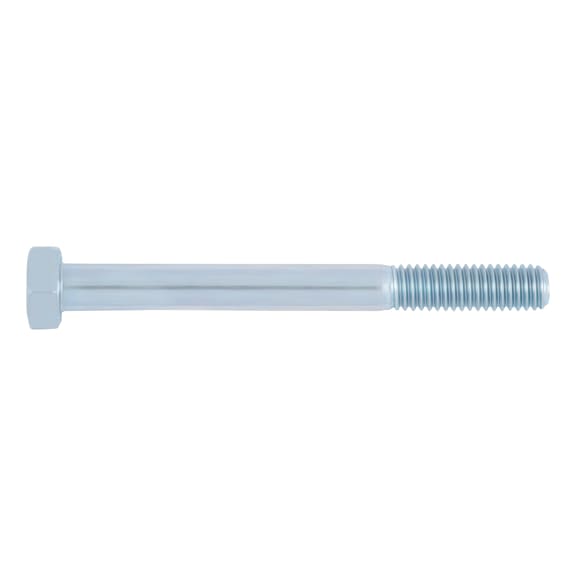

M10 Hex Bolt | 40mm Length | Zinc Plated | Property Class 8.8 | by Wurth
The M10 Hex Bolt is designed for secure fastening in mechanical, construction, and automotive applications. With a 40mm length and a zinc plated surface for corrosion resistance, this high-strength steel bolt meets property class 8.8 standards, ensuring durability and reliability. Ideal for both industrial and domestic settings, it features a partial thread design for enhanced grip and stability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: M10 Hex Bolt | 40mm Length | Zinc Plated | Property Class 8.8 | by Wurth
Brand: Wurth
SKU: 531040
Alternatively Known As: Hex bolt M10, Metric hex bolt, Zinc plated hex bolt, Partial thread bolt
Technical Specifications
- Thread type x nominal diameter (d1): M10
- Length (l1): 40 mm
- Head height (k1): 7 mm
- External drive (s1): WS17
- Standards: DIN 931
- Material: Steel
- Property class: 8.8
- Surface: Zinc plated
- Head type: Hexagon head
- Drive type: Outer hexagon
- Thread type: Metric thread
- Thread form: Standard metric thread
- Thread design: Partial thread
- Thread length (metric thread) (b): 30 mm
- Product class: A
- RoHS-compliant: Yes
- Dimensions (H x L x W): 7mm x 40mm x 10mm
- Weight: 0.1 kg
Key Features
- Hexagon head with outer hexagon drive for easy tightening
- Partial metric thread design for secure fastening
- Zinc plated surface for corrosion resistance
- Made from high strength steel with property class 8.8
- RoHS-compliant ensuring environmental safety
Professional Installation Requirements
- Installation by a qualified tradesperson or technician is recommended to ensure proper torque and secure fastening.
Applications
- Mechanical assembly
- Construction fastening
- Automotive repairs
- General purpose fastening in industrial and domestic settings
Standards & Compliance
- AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- RoHS-compliant material reduces hazardous substances
- Zinc plating extends product life reducing waste
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
The Wurth M10 x 40mm Hexagon Head Bolt is available for immediate purchase, ideal for mechanical, construction, and automotive fastening applications.
