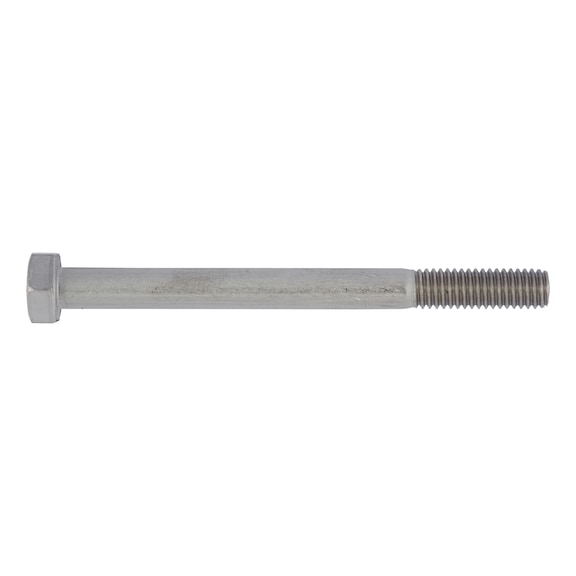

M10 Hex Bolt | Stainless Steel A4 | Hexagon Head | RoHS Compliant | by Wurth
The M10 Hex Bolt is crafted from stainless steel A4, ensuring excellent corrosion resistance and durability. With a hexagon head and outer hexagon drive, it allows for easy tightening, making it ideal for general fastening applications in construction, machinery, and automotive sectors. This bolt features a partial metric thread design for secure fastening and is RoHS-compliant, ensuring environmental safety.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: M10 Hex Bolt | Stainless Steel A4 | Hexagon Head | RoHS Compliant | by Wurth
Brand: Wurth
SKU: 901040
Alternatively Known As: M10 Hex Bolt, Stainless Steel Hex Bolt, Metric Hex Head Bolt, M10 x 40 Bolt
Technical Specifications
- Thread type x nominal diameter (d1): M10
- Length (l1): 40 mm
- Head height (k1): 7 mm
- External drive (s1): WS17
- Standards: DIN 931
- Material: Stainless steel A4
- Property class: 70
- Surface: Plain
- Head type: Hexagon head
- Drive type: Outer hexagon
- Thread type: Metric thread
- Thread form: Standard metric thread
- Thread design: Partial thread
- Thread length (metric thread) (b): 26 mm
- Product class: A
- RoHS-compliant: Yes
- Dimensions (H x L x W): 7mm x 40mm x 10mm
- Weight: 0.1 kg
Key Features
- Hexagon head with outer hexagon drive for easy tightening
- Made from stainless steel A4 for excellent corrosion resistance
- Partial metric thread design for secure fastening
- RoHS-compliant ensuring environmental safety
Professional Installation Requirements
- Installation by a qualified professional is recommended to ensure proper torque and secure fastening.
Applications
- General fastening applications in construction, machinery, automotive, and industrial equipment
- Suitable for use in environments requiring corrosion resistance
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Made from stainless steel which is recyclable and durable, reducing the need for frequent replacements
Warranty Information
Warranty against manufacturing defects as per Wurth standard terms and conditions.
Available Now
The Wurth M10 x 40mm Stainless Steel Hexagon Head Bolt is available for immediate purchase, ideal for construction, machinery, and industrial fastening applications.
