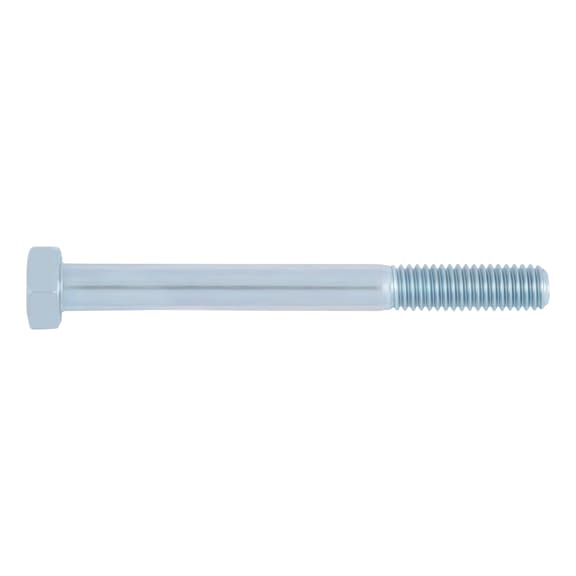

M10 Hexagon Head Bolt | Zinc Plated | Property Class 8.8 | by Wurth
The M10 Hexagon Head Bolt is designed for strong fastening in mechanical assemblies and construction applications. With a zinc plated surface for corrosion resistance and a property class of 8.8, this steel bolt ensures durability and reliability. Ideal for automotive and machinery repairs, it features a partial metric thread design for secure fastening, making it a must-have for any tradesperson.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: M10 Hexagon Head Bolt | Zinc Plated | Property Class 8.8 | by Wurth
Brand: Wurth
SKU: 531050
Alternatively Known As: Hex bolt M10, Zinc plated hex bolt, Metric hex bolt, Steel hex bolt M10x50
Technical Specifications
- Thread type x nominal diameter (d1): M10
- Length (l1): 50 mm
- Head height (k1): 7 mm
- External drive (s1): WS17
- Standards: DIN 931
- Material: Steel
- Property class: 8.8
- Surface: Zinc plated
- Head type: Hexagon head
- Drive type: Outer hexagon
- Thread type: Metric thread
- Thread form: Standard metric thread
- Thread design: Partial thread
- Thread length (metric thread) (b): 26 mm
- Product class: A
- RoHS-compliant: Yes
- Dimensions (H x L x W): 7mm x 50mm x 10mm
- Weight: 0.1 kg
Key Features
- Hexagon head with outer hexagon drive for easy tightening
- Partial metric thread design for secure fastening
- Zinc plated surface for corrosion resistance
- Made from high strength steel with property class 8.8
- RoHS-compliant ensuring environmental safety
Professional Installation Requirements
- Installation by a qualified tradesperson or technician is recommended to ensure proper torque and secure fastening.
Applications
- Mechanical assemblies requiring strong fastening
- Construction and structural applications
- Automotive and machinery repairs
Standards & Compliance
- Complies with AS/NZS 1252 – High tensile bolts for structural engineering
Environmental Benefits
- RoHS-compliant material reduces hazardous substances
- Zinc plating extends product life reducing waste
Warranty Information
Standard manufacturer warranty against defects in material and workmanship.
Available Now
The Wurth M10 x 50mm Hexagon Head Bolt is available for immediate purchase, ideal for construction, mechanical, and automotive fastening applications.
