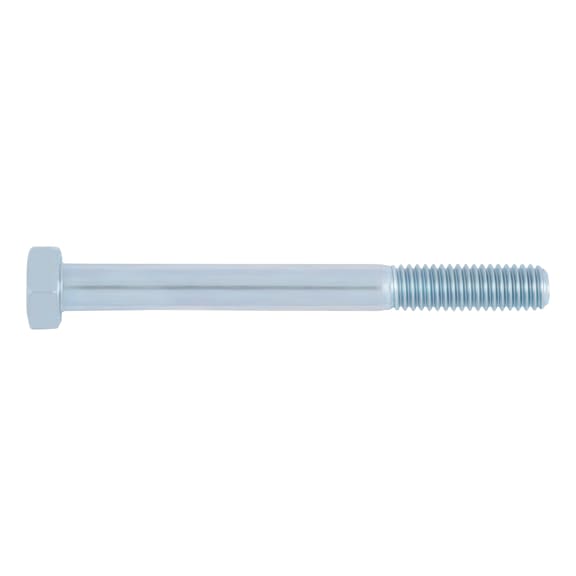

M10 Hexagon Head Bolt | Zinc Plated | Property Class 8.8 | by Wurth
The M10 Hexagon Head Bolt is designed for secure fastening in mechanical assembly, construction, and automotive repairs. With a zinc plated surface for corrosion resistance and a property class of 8.8 for high strength, this bolt ensures durability and reliability in various applications. Ideal for both industrial and DIY projects, it meets RoHS compliance for environmental safety.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: M10 Hexagon Head Bolt | Zinc Plated | Property Class 8.8 | by Wurth
Brand: Wurth
SKU: 531060
Alternatively Known As: Hex bolt M10, Zinc plated hex bolt, Metric hex bolt, Steel hex bolt M10x60
Technical Specifications
- Thread type x nominal diameter (d1): M10
- Length (l1): 60 mm
- Head height (k1): 7 mm
- External drive (s1): WS17
- Standards: DIN 931
- Material: Steel
- Property class: 8.8
- Surface: Zinc plated
- Head type: Hexagon head
- Drive type: Outer hexagon
- Thread type: Metric thread
- Thread form: Standard metric thread
- Thread design: Partial thread
- Thread length (metric thread) (b): 26 mm
- Product class: A
- RoHS-compliant: Yes
- Dimensions (H x L x W): 7mm x 60mm x 10mm
- Weight: 0.1 kg
Key Features
- Hexagon head with outer hexagon drive for easy tightening
- Partial metric thread design for secure fastening
- Zinc plated surface for corrosion resistance
- Made from steel with property class 8.8 for high strength
- RoHS-compliant ensuring environmental safety
Professional Installation Requirements
- Installation by a qualified tradesperson or technician is recommended to ensure proper torque and secure fastening.
Applications
- Mechanical assembly
- Construction fastening
- Automotive repairs
- General purpose fastening in industrial and DIY projects
Standards & Compliance
- AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- RoHS-compliant material reduces hazardous substances
- Zinc plating extends product life reducing waste
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
The Wurth M10 x 60mm Hexagon Head Bolt is available for immediate purchase, ideal for construction, mechanical, and general fastening applications.
