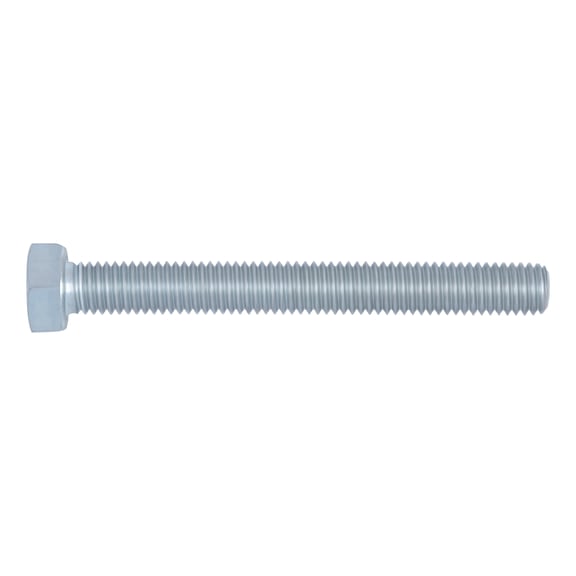

M10 Hexagon Head Bolt | Zinc Plated | Property Class 8.8 | by Wurth
The M10 Hexagon Head Bolt is designed for strong fastening in mechanical assemblies, construction, and automotive applications. Made from high-strength steel with a zinc plated surface for 48 hours of corrosion protection, this bolt features a full metric thread for secure fastening. RoHS-compliant, it ensures environmental safety while providing reliable performance in demanding conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: M10 Hexagon Head Bolt | Zinc Plated | Property Class 8.8 | by Wurth
Brand: Wurth
SKU: 571020
Alternatively Known As: Hex bolt M10, Metric hex bolt, Zinc plated hex bolt, Steel hex bolt M10x20
Technical Specifications
- Thread type x nominal diameter (d1): M10
- Length (l1): 20 mm
- Head height (k1): 6.4 mm
- External drive (s1): WS17
- Standards: DIN 933
- Material: Steel
- Property class: 8.8
- Surface: Zinc plated
- Corrosion protection period: 48 h
- Head type: Hexagon head
- Drive type: Outer hexagon
- Thread type: Metric thread
- Thread form: Standard metric thread
- Thread design: Full thread
- Product class: A
- RoHS-compliant: Yes
- Dimensions (H x L x W): 6.4mm x 20mm x 10mm
- Weight: 0.1 kg
Key Features
- Hexagon head with outer hexagon drive for easy tightening
- Full metric thread for secure fastening
- Zinc plated surface providing 48 hours corrosion protection
- Made from high-strength steel with property class 8.8
- RoHS-compliant ensuring environmental safety
Professional Installation Requirements
- Installation by a qualified tradesperson or technician is recommended to ensure proper torque and secure fastening.
Applications
- Mechanical assemblies requiring strong fastening
- Construction and structural applications
- Automotive and machinery repairs
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- RoHS-compliant material reduces hazardous substances
- Zinc plating extends product life reducing waste
Warranty Information
Warranty against manufacturing defects as per Wurth standard policy.
Available Now
The Wurth M10 x 20mm Hexagon Head Bolt is available for immediate purchase, ideal for mechanical, construction, and automotive fastening applications.
