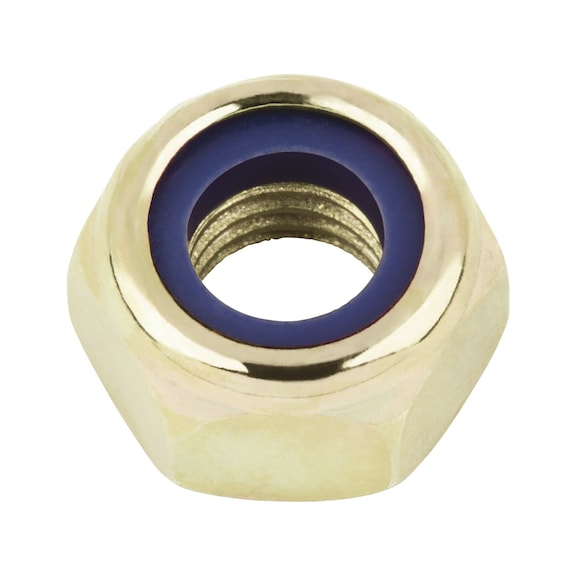

M10 Lock Nut | Zinc Plated Yellow | Polyamide Ring for Secure Fastening | Low Form Design | by Wurth
The M10 Lock Nut is designed for secure fastening in mechanical assemblies, featuring a zinc plated yellow surface for corrosion resistance and a polyamide ring that prevents loosening. Ideal for automotive, machinery, and industrial applications, this nut ensures high strength and reliability in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: M10 Lock Nut | Zinc Plated Yellow | Polyamide Ring for Secure Fastening | Low Form Design | by Wurth
Brand: Wurth
SKU: 37010
Alternatively Known As: M10 Lock Nut, Nylon Insert Nut, Polyamide Ring Nut, Zinc Plated Lock Nut
Technical Specifications
- Thread type x nominal diameter (D): M10
- Height (m1): 10 mm
- External drive (s1): WS17
- Standards: DIN 985
- Material: Steel
- Property class: 10I
- Surface: Zinc plated yellow
- RoHS-compliant: No
- Form: Low
- Locking device operating principle: Clamping part polyamide ring
- Locking function: Locking against loosening by clamping
- Dimensions (H x L x W): 10mm x 17mm x 17mm
- Weight: 0.1 kg
Key Features
- Locking against loosening by clamping with polyamide ring
- Zinc plated yellow surface for corrosion resistance
- Low form design for compact fastening
- Steel material with property class 10I for high strength
Professional Installation Requirements
- Installation by a qualified technician or engineer is recommended to ensure proper torque and secure fastening.
Applications
- Mechanical assemblies requiring secure fastening
- Automotive and machinery applications
- Industrial equipment and construction
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Zinc plating provides corrosion resistance extending product life and reducing waste
Warranty Information
Standard manufacturer warranty applies.
Available Now
The Wurth M10 Zinc Plated Steel Lock Nut with Polyamide Ring is available now for immediate purchase. Ideal for mechanical, automotive, and industrial fastening applications.
