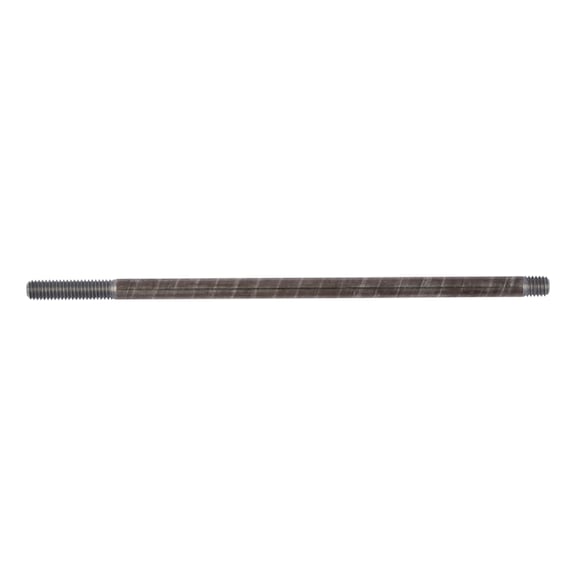

M10 Metric Stud Bolt | 30 mm Length | Steel Construction | DIN 939 Compliant | by Wurth
The M10 Metric Stud Bolt is designed for secure fastening in mechanical assemblies, automotive repairs, and construction applications. With a 30 mm length and a robust steel construction, this bolt meets DIN 939 standards and is RoHS-compliant, ensuring safety and durability in various industrial settings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: M10 Metric Stud Bolt | 30 mm Length | Steel Construction | DIN 939 Compliant | by Wurth
Brand: Wurth
SKU: 2501030
Alternatively Known As: Metric Stud Bolt M10, Threaded Stud M10x30, DIN 939 Stud Bolt, Steel Threaded Rod
Technical Specifications
- Thread type x nominal diameter (d1): M10
- Length (l1): 30 mm
- Thread length (metric thread) (l2): 23 mm
- Thread length 2 (metric thread) (l3): 12 mm
- Standards: DIN 939
- Material: Steel
- Property class: 5.8
- Surface: Plain
- RoHS-compliant: Yes
- Head type: Without head
- Drive type: Without drive
- Thread type: Metric thread
- Pitch: 1.5 mm
- Thread form: Standard metric thread
- Shank diameter: 10 mm
- Product class: A
- Dimensions (H x L x W): 30mm x 30mm x 10mm
- Weight: 0.1 kg
Key Features
- M10 nominal diameter with 30 mm length
- Metric thread with 1.5 mm pitch
- Made from steel with property class 5.8 for strength
- Plain surface finish
- Complies with DIN 939 standard
- RoHS-compliant
- Headless design without drive for specific fastening applications
Professional Installation Requirements
- Installation by a qualified technician or tradesperson is recommended to ensure proper fastening and safety.
Applications
- Mechanical assemblies requiring secure fastening
- Automotive repairs and manufacturing
- Construction and structural applications
- General industrial fastening needs
Standards & Compliance
- AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- RoHS-compliant ensuring reduced hazardous substances
- Durable steel construction promotes long product life reducing waste
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
The Wurth M10 x 30mm Metric Threaded Stud Bolt is available for immediate purchase, ideal for mechanical, automotive, and construction fastening applications.
