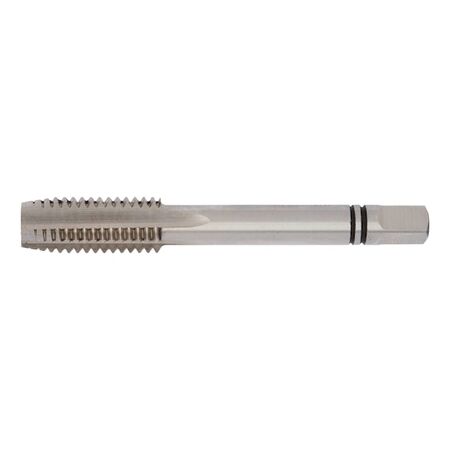

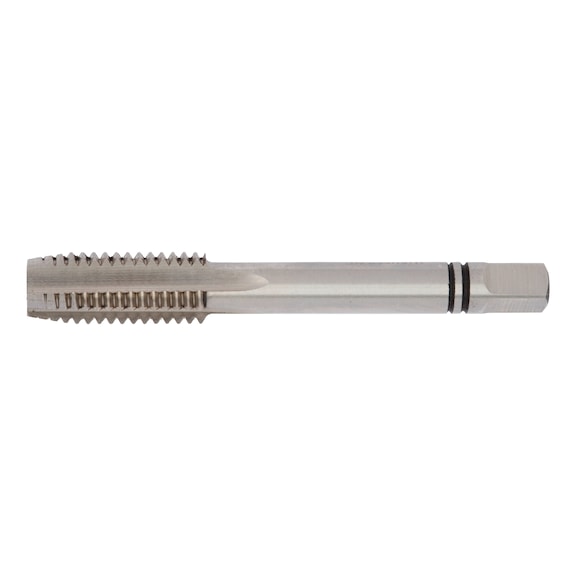

M10 Thread Tap | HSS Material | Trim Cut Form D | DIN 352 Compliant | by Wurth
The M10 Thread Tap is designed for precise thread cutting in machining applications, featuring high-speed steel (HSS) construction and a trim cut form D for optimal performance. Ideal for producing metric ISO standard threads in both through and blind holes, this durable tap is suitable for use with steel, non-ferrous metals, and cast iron materials up to 800 N/mm² strength.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: M10 Thread Tap | HSS Material | Trim Cut Form D | DIN 352 Compliant | by Wurth
Brand: Wurth
SKU: 640210
Alternatively Known As: M10 Thread Tap, Metric Thread Cutter, HSS Thread Tap, Second Tap M10
Technical Specifications
- Type description: Second tap
- Standards: DIN 352
- Thread type x nominal diameter: M10
- Pitch: 1.5 mm
- Length: 70 mm
- Thread length (metric thread): 24 mm
- Shank diameter: 7 mm
- Size of square: 5.5 mm
- Core hole diameter: 8.5 mm
- Material: HSS
- Thread type: Metric thread
- Dimensions (H x L x W): 70mm x 70mm x 7mm
- Weight: 0.1 kg
Key Features
- Trim cut form D for precise thread cutting
- Complies with DIN 13 for metric ISO standard threads
- Suitable for through holes and blind holes
- High-speed steel (HSS) material for durability
Professional Installation Requirements
- Use by trained machinists or professionals experienced in thread cutting is recommended for safety and precision.
Applications
- Machining: Producing metric ISO standard threads by hand in through holes and blind holes
- Suitable for steel, non-ferrous metals, and cast iron material groups up to 800 N/mm² strength
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable HSS material reduces frequency of replacement, minimizing waste
Warranty Information
Standard manufacturer warranty applies.
Available Now
The Wurth M10 HSS Second Tap Thread Cutter is available now for immediate purchase. Ideal for machining applications requiring precise metric thread cutting.
