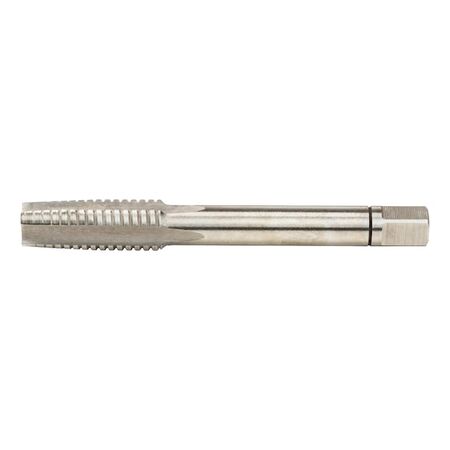

M10 Thread Tap | Taper Cut Form A | HSS Material | DIN 352 Compliant | by Wurth
The M10 Thread Tap is designed for precise thread cutting, featuring a taper cut form A and high-speed steel (HSS) construction for durability. Ideal for machining applications, it produces metric ISO standard threads in steel, non-ferrous metals, and cast iron. Complying with DIN 352 standards, this tap is perfect for both through and blind holes, ensuring reliable performance for professionals.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: M10 Thread Tap | Taper Cut Form A | HSS Material | DIN 352 Compliant | by Wurth
Brand: Wurth
SKU: 640110
Alternatively Known As: M10 Thread Tap, Metric Thread Cutter, Taper Tap M10
Technical Specifications
- Type description: Taper tap
- Standards: DIN 352
- Thread type x nominal diameter: M10
- Pitch: 1.5 mm
- Length: 70 mm
- Thread length (metric thread): 24 mm
- Shank diameter: 7 mm
- Size of square: 5.5 mm
- Core hole diameter: 8.5 mm
- Material: HSS
- Thread type: Metric thread
- Dimensions (H x L x W): 70mm x 70mm x 7mm
- Weight: 0.1 kg
Key Features
- Trim cut form A for precise thread cutting
- Complies with DIN 352 standard
- High-speed steel (HSS) material for durability
- Metric thread type with M10 nominal diameter and 1.5 mm pitch
Professional Installation Requirements
- Use by trained machinists or professionals experienced in thread cutting for best results and safety.
Applications
- Machining: Producing metric ISO standard threads by hand
- Suitable for steel, non-ferrous metals, and cast iron materials up to 800 N/mm² strength
- Use in through holes and blind holes
Standards & Compliance
- AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Durable HSS material reduces frequency of replacement and waste
Warranty Information
Standard manufacturer warranty applies.
Available Now
The Wurth Taper Tap M10 Thread Cutter is available now for immediate purchase. Ideal for machining applications requiring precise metric thread cutting.
