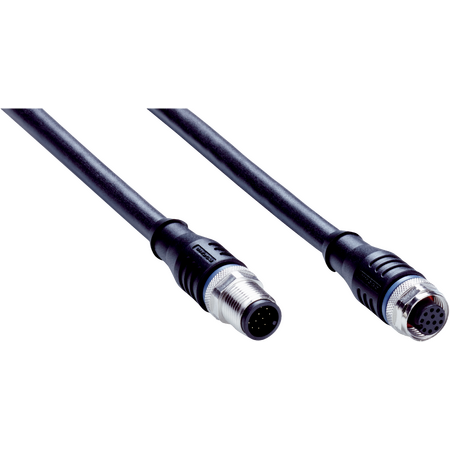

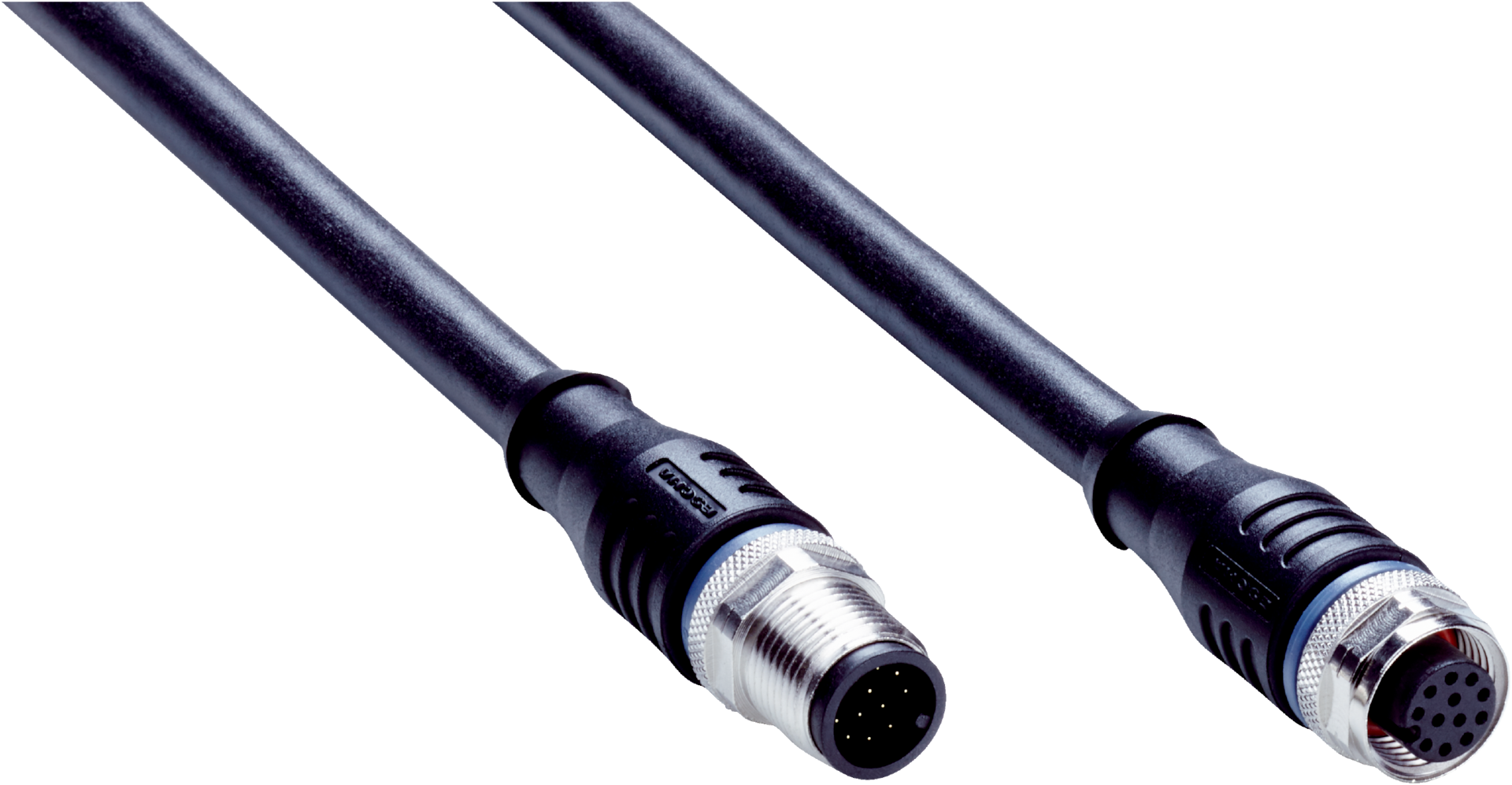

M12 12-Pin Extension Cable | Shielded PUR | IP67/IP69K Rated | by SICK
The M12 12-pin extension cable is designed for robust sensor and actuator connectivity in industrial automation. Featuring female and male straight connectors, this shielded PUR cable is halogen-free and rated IP67/IP69K for superior protection against dust and water. Ideal for harsh environments, it supports drag chain operation and robot connectivity, ensuring reliable performance in demanding applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: M12 12-pin extension cable, Sensor actuator cable, Shielded PUR cable
Technical Specifications
- Connection type head A: Female connector, M12, 12-pin, straight
- Connection type head B: Male connector, M12, 12-pin, straight
- Connector material: TPU
- Cable length: 2.7 m
- Cable type: 12-wire, shielded, PUR, halogen-free
- Cable diameter: 7.5 mm
- Conductor cross section: 0.14 mm², 2 x 2 x 0.14 mm²
- Shielding: Shielded
- Tightening torque: 1 Nm
- Bending radius flexible use: > 12 x cable diameter
- Bending radius stationary position: > 5 x cable diameter
- Operating temperature flexible use: -30 °C to +90 °C
- Operating temperature stationary position: -40 °C to +90 °C
- Current loading: 1.5 A
- Traversing speed: 1.7 m/s
- Travelling distance: 5 m
- Acceleration: ≤ 5 m/s²
- Signal type: Sensor/actuator cable
- Enclosure rating: IP67 / IP69K
- Dimensions (H x L x W): 10mm x 2700mm x 10mm
- Weight: 0.1 kg
Key Features
- Female and male M12, 12-pin straight connectors
- Shielded 12-wire PUR cable, halogen-free
- High bending radius for flexible and stationary use
- IP67/IP69K rated for protection against dust and water
- Suitable for harsh industrial environments
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Drag chain operation
- Zones with oils and lubricants
- Robot connectivity
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free cable jacket reduces environmental impact in case of disposal or fire.
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK YF2A2B-025UD3M2A2B sensor/actuator extension cable is available for immediate purchase, ideal for industrial automation and robotic applications.
