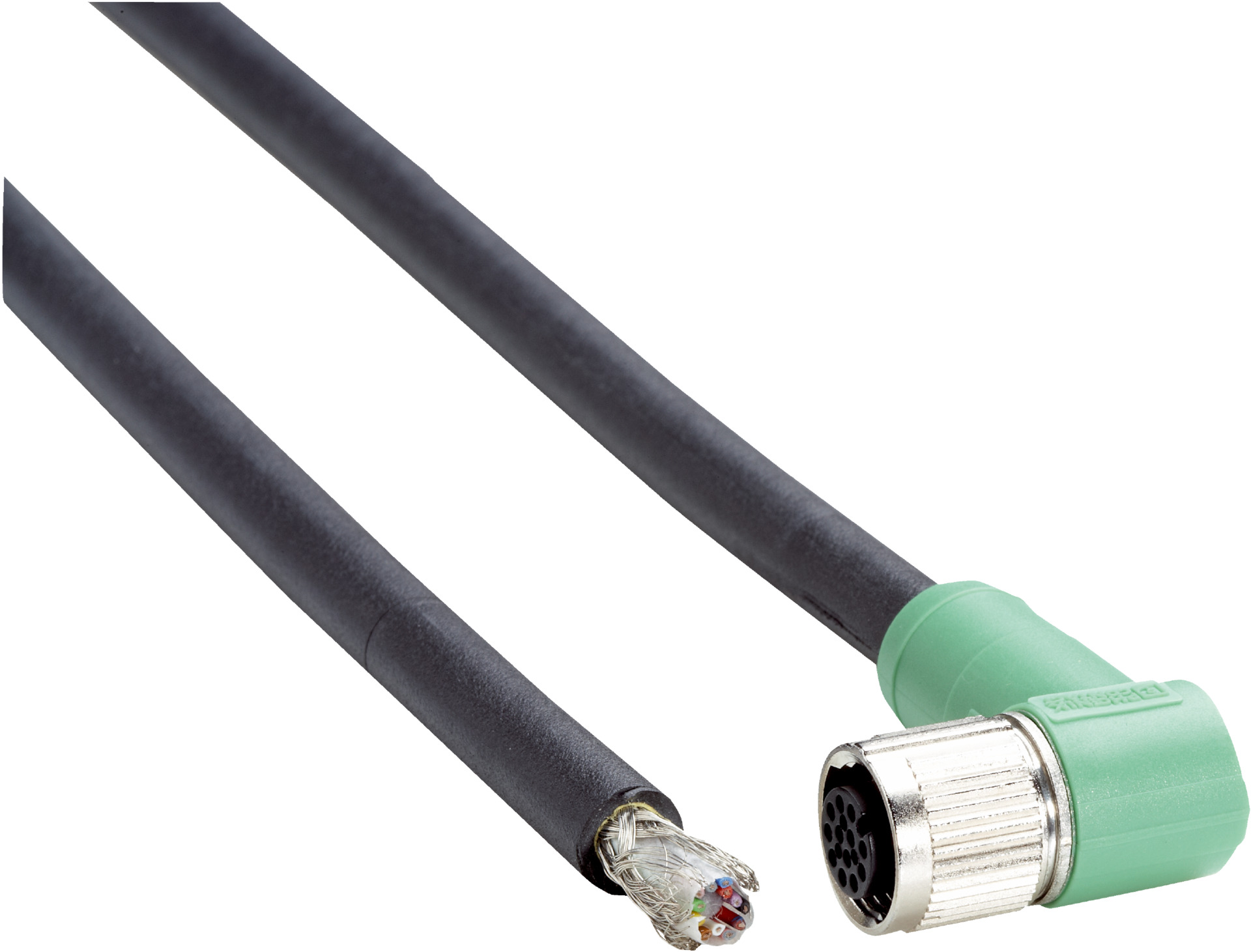

M12 12-Pin Female Connector Cable | 2m Length | Shielded & Halogen-Free | IP65/IP67/IP69K Rated | by SICK
The M12 12-pin female connector cable is designed for industrial automation and control systems, featuring a 2m length and a durable, halogen-free PUR jacket. With a high protection rating of IP65, IP67, and IP69K, this shielded cable ensures reliable signal transmission in demanding environments, making it ideal for factory equipment requiring SSI signal cables.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Female connector, M12, 12-pin, angled, A-coded
- Connection type head B: Flying leads
- Cable length: 2 m
- Cable wires: 12-wire
- Cable jacket material: PUR, halogen-free
- Cable jacket color: Black
- Cable diameter: 8.5 mm
- Conductor cross section: 12 x 0.14 mm²
- Shielding: Shielded
- Bending radius flexible use: > 10 x cable diameter
- Bending radius stationary position: > 6 x cable diameter
- Reference voltage: ≤ 30 V
- Signal type: SSI
- Enclosure rating: IP65 / IP67 / IP69K
- Dimensions (H x L x W): 20mm x 2000mm x 20mm
- Weight: 0.1 kg
Key Features
- Female connector, M12, 12-pin, angled, A-coded
- 2 m length, 12-wire PUR cable, halogen-free
- Shielded cable with black PUR jacket
- High protection rating: IP65, IP67, IP69K
- Flexible bending radius > 10 x cable diameter for flexible use
- Stationary bending radius > 6 x cable diameter
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician familiar with industrial signal cabling and connectors to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation and control systems
- Signal transmission in machinery
- Factory equipment requiring SSI signal cables
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free PUR jacket reduces environmental impact during disposal
- Durable and shielded design extends product life and reduces waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's warranty policy for details.
Available Now

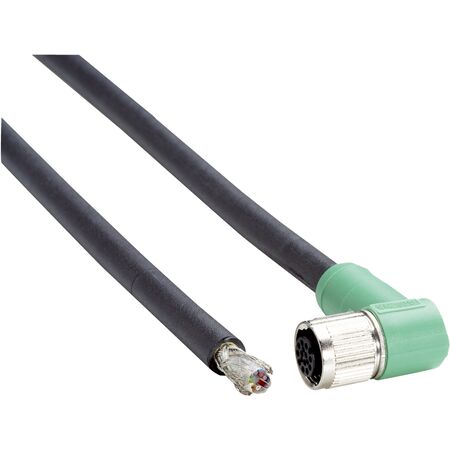

The SICK DOL-1212-W02MAC1 cable is available for immediate purchase, ideal for industrial automation and control system applications.
