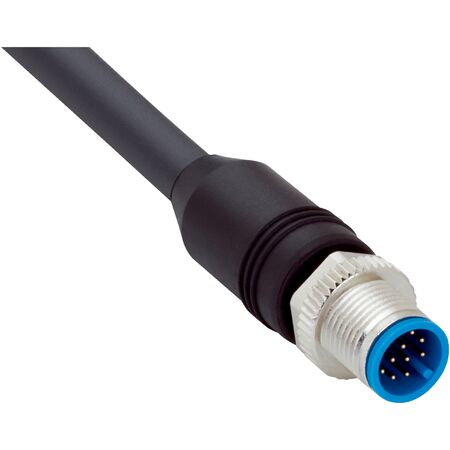

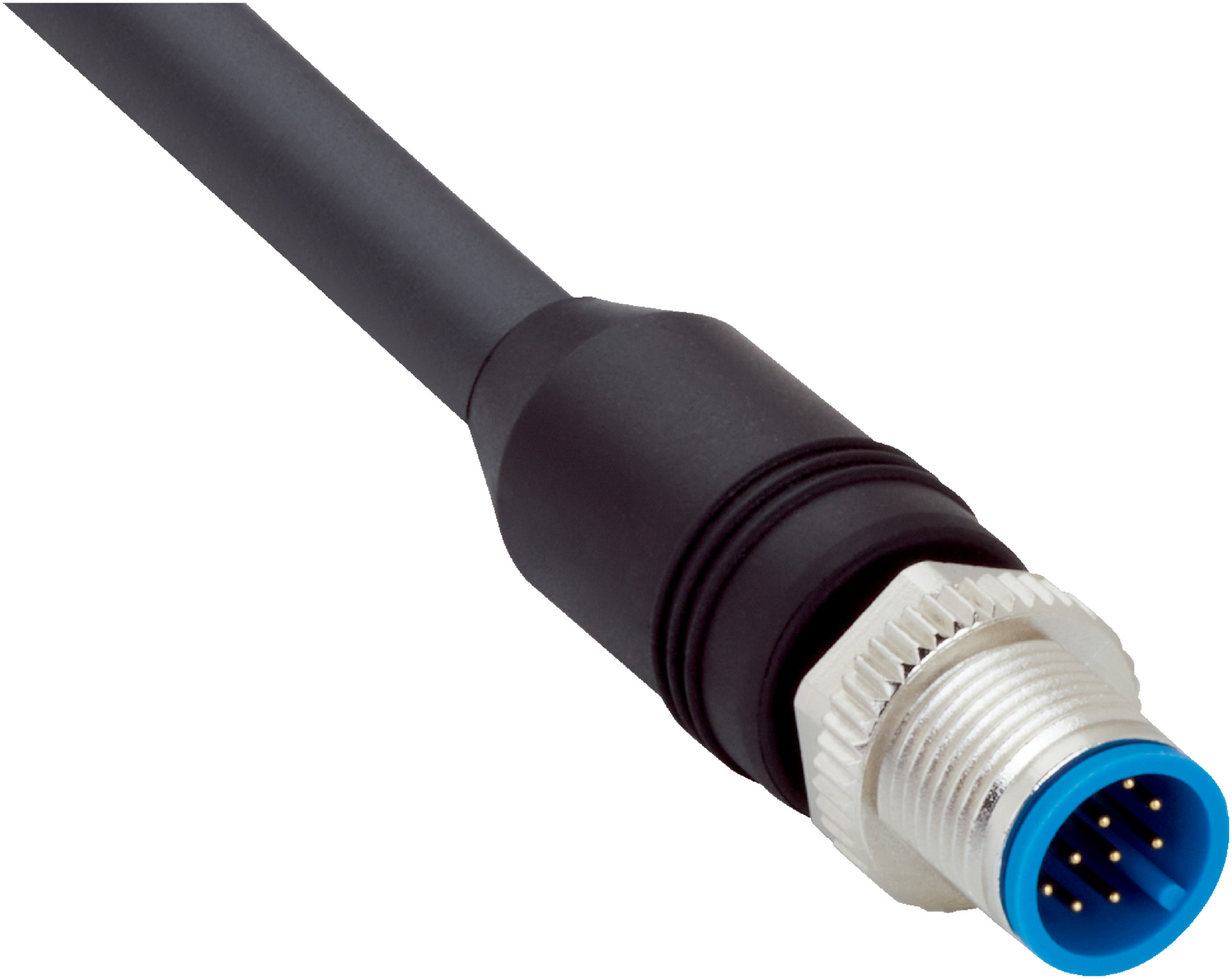

M12 12-Pin Sensor Actuator Cable | 10m Length | IP65/IP66K/IP67 Rated | by SICK
The M12 12-Pin Sensor Actuator Cable is designed for robust industrial applications, featuring a 10m PUR halogen-free cable with a male connector and flying leads. With an IP65/IP66K/IP67 enclosure rating, it ensures reliable performance in harsh environments, making it ideal for robotics and drag chain operations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Male connector, M12, 12-pin, straight, A-coded
- Connection type head B: Flying leads
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Tightening torque: 0.6 Nm
- Cable length: 10 m
- Cable type: 12-wire, PUR, halogen-free
- Cable diameter: 7.2 mm
- Conductor cross section: 2 x 2 x 0.14 mm²
- Shielding: Shielded
- Bending radius: Flexible use > 10 x cable diameter, Stationary position > 5 x cable diameter, Drag chain operation > 10 x cable diameter
- Bending cycles: 5,000,000
- Rated impulse voltage: 0.8 kV
- Current loading: 1.5 A
- Traversing speed: 3.3 m/s
- Travelling distance: 5 m
- Acceleration: ≤ 5 m/s²
- Signal type: Sensor/actuator cable
- Torsion force: 1 m
- Torsion cycles: 500,000
- Cycles per minute: 35
- Enclosure rating: IP65 / IP66K / IP67
- Operating temperature: Flexible use –25 °C to +80 °C, Stationary position –40 °C to +80 °C, Drag chain operation –25 °C to +80 °C, Head –25 °C to +85 °C
- Contamination rating: 3
- Overvoltage category: III
- Dimensions (H x L x W): 13mm x 10000mm x 13mm
- Weight: 0.3 kg
Key Features
- Male connector, M12, 12-pin, straight, A-coded on head A
- Flying leads on head B
- Screw connection locking plug connector
- TPU connector material with black color
- Zinc die-cast, nickel-plated locking nut
- 10 m PUR halogen-free cable with 12 wires
- Shielded cable with 7.2 mm diameter
- High bending radius suitable for flexible use, stationary position, and drag chain operation
- High bending cycles up to 5,000,000 and torsion cycles up to 500,000
- Operating temperature range from -40 °C to +85 °C depending on use
- Enclosure rating IP65 / IP66K / IP67 for robust protection
- Overvoltage category III
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician familiar with sensor and actuator cable connections to ensure proper functionality and safety.
Applications
- Uncontaminated zones
- Zones with oils and lubricants
- Robot applications
- Drag chain operation
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free PUR jacket reduces environmental impact during disposal
- Durable design minimizes replacement frequency and waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK YM2A2B-100UD3XLEAX sensor/actuator cable is available for immediate purchase, ideal for industrial automation, robotics, and drag chain applications.
