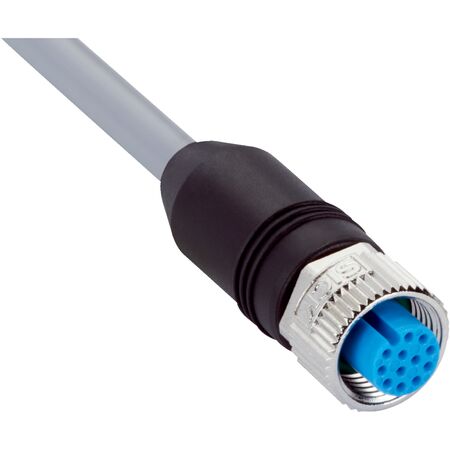

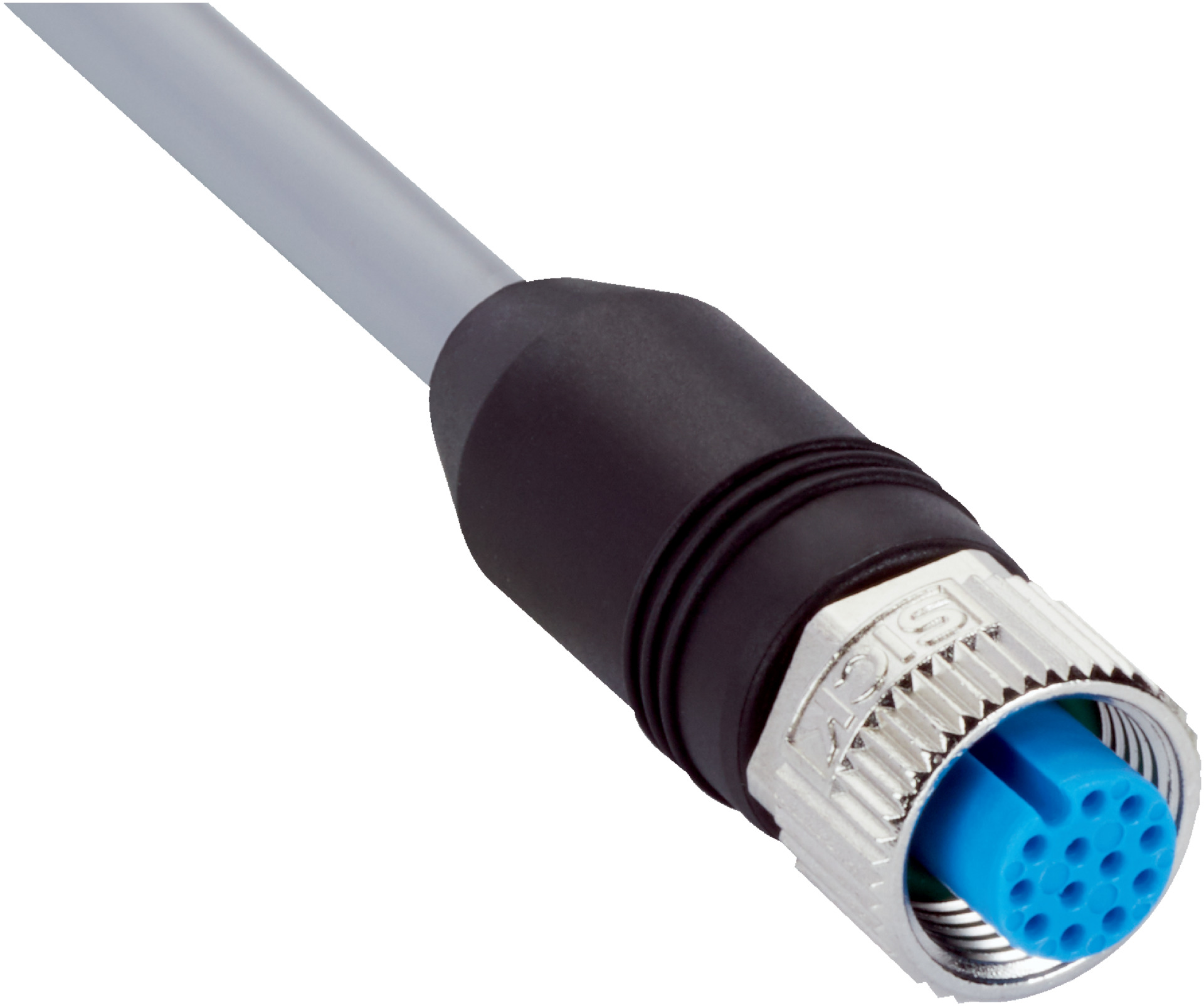

M12 12-Pin Sensor Cable | 10m Length | IP65/IP66/IP67 Rated | TPU Material | by SICK
The M12 12-pin sensor cable is designed for reliable connections in industrial automation, featuring a 10m length and IP65/IP66/IP67 enclosure ratings for protection against dust and water. Ideal for harsh environments with chemical exposure, this cable ensures durability and safety with its flame retardant TPU material and screw connection locking plug.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Female connector, M12, 12-pin, straight, A-coded
- Connection type head B: Flying leads
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Seal material: FKM
- Tightening torque: 0.6 Nm
- Cable: 10 m, 12-wire, PVC jacket
- Cable diameter: 6 mm
- Conductor cross section: 0.14 mm²
- Shielding: Unshielded
- Nominal voltage, cable: 300 V AC
- Test voltage, cable: 2000 V AC
- Rated impulse voltage: 0.8 kV
- Current loading: 1.5 A
- Signal type: Sensor/actuator cable
- Application: Zones with chemicals
- Enclosure rating: IP65 / IP66 / IP67
- Operating temperature: Flexible use –5 °C to +85 °C, Stationary position –30 °C to +80 °C, Head –25 °C to +85 °C
- Contamination rating: 3
- Insulation resistance: 100 MΩ
- Overvoltage category: III
- Specific insulation resistance: 30 mΩ
- Thermal resistance: Flame retardant according to UL 1581 VW1 / CSA FT1 / IEC 60332-1-2
- Dimensions (H x L x W): 6mm x 10000mm x 13mm
- Weight: 0.2 kg
Key Features
- Female connector, M12, 12-pin, straight, A-coded
- Flying leads with screw connection locking plug
- Connector made of TPU with zinc die-cast, nickel-plated locking nut
- Cable length 10 m, 12-wire, PVC jacket in gray color
- Unshielded cable with 0.14 mm² conductor cross section
- Bending radius: Flexible use > 10 x cable diameter, Stationary position > 5 x cable diameter
- Operating temperature range: Flexible use –5 °C to +85 °C, Stationary position –30 °C to +80 °C
- Enclosure rating IP65 / IP66 / IP67 for protection against dust and water
- Flame retardant cable according to UL 1581 VW1 / CSA FT1 / IEC 60332-1-2
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor cabling and electrical safety standards.
Applications
- Industrial automation zones with chemical exposure
- Sensor and actuator connections in harsh environments
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable and flame retardant materials reduce replacement frequency and waste
- High insulation resistance and robust design minimize electrical faults and energy loss
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy.
Available Now
The SICK YF2A1B-100VH1XLEAX sensor/actuator cable is available for immediate purchase, ideal for industrial automation and chemical zone applications.
