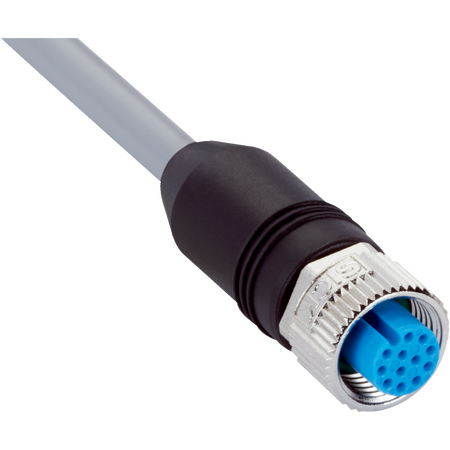

M12 12-Pin Sensor Cable | 5m Length | IP65/IP66/IP67 Rated | TPU Connector | by SICK
The M12 12-pin sensor cable is designed for reliable connections in industrial automation, featuring a 5m length and IP65/IP66/IP67 protection. With a female connector and durable TPU material, it ensures optimal performance in uncontaminated zones and chemical environments, making it ideal for sensor and actuator applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: M12 12-pin sensor cable, actuator cable with M12 connector, industrial sensor cable 5m, SICK sensor cable YF2A1B
Technical Specifications
- Connection type head A: Female connector, M12, 12-pin, straight, A-coded
- Connection type head B: Flying leads
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Seal material: FKM
- Tightening torque: 0.6 Nm
- Cable length: 5 m
- Cable wires: 12-wire, PVC jacket
- Cable diameter: 6 mm
- Conductor cross section: 0.14 mm²
- Shielding: Unshielded
- Bending radius flexible use: > 10 x cable diameter
- Bending radius stationary position: > 5 x cable diameter
- Nominal voltage: 300 V AC
- Test voltage: 2000 V AC
- Rated impulse voltage: 0.8 kV
- Current loading: 1.5 A
- Signal type: Sensor/actuator cable
- Application: Uncontaminated zones, zones with chemicals
- Enclosure rating: IP65 / IP66 / IP67
- Operating temperature flexible use: –5 °C to +85 °C
- Operating temperature stationary position: –30 °C to +80 °C
- Operating temperature head: –25 °C to +85 °C
- Contamination rating: 3
- Insulation resistance: 100 MΩ
- Overvoltage category: III
- Thermal resistance: Flame retardant according to UL 1581 VW1 / CSA FT1 / IEC 60332-1-2
- Dimensions (H x L x W): 6mm x 5000mm x 13mm
- Weight: 0.1 kg
Key Features
- Female connector, M12, 12-pin, straight, A-coded
- Flying leads with 5 m, 12-wire PVC cable
- Screw connection locking plug
- Connector made of TPU with black color
- Locking nut made of zinc die-cast, nickel-plated
- Seal material FKM for enhanced sealing
- Cable diameter 6 mm with conductor cross section 0.14 mm²
- Unshielded cable design
- Flame retardant cable according to UL 1581 VW1 / CSA FT1 / IEC 60332-1-2
- Operating temperature range: Flexible use –5 °C to +85 °C, Stationary position –30 °C to +80 °C, Head –25 °C to +85 °C
- Enclosure rating IP65 / IP66 / IP67 for robust protection
- Nominal voltage 300 V AC, test voltage 2000 V AC
- Current loading 1.5 A
- Overvoltage category III
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor cabling and electrical safety standards.
Applications
- Industrial automation sensor and actuator connections
- Use in uncontaminated zones and zones with chemicals
- Suitable for environments requiring IP65/IP66/IP67 protection
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Flame retardant cable reduces fire risk in industrial environments
- Durable materials extend product life reducing waste
- Compliant with China RoHS for restricted hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK YF2A1B-050VH1XLEAX sensor/actuator cable is available for immediate purchase, ideal for industrial automation and sensor connection applications.
