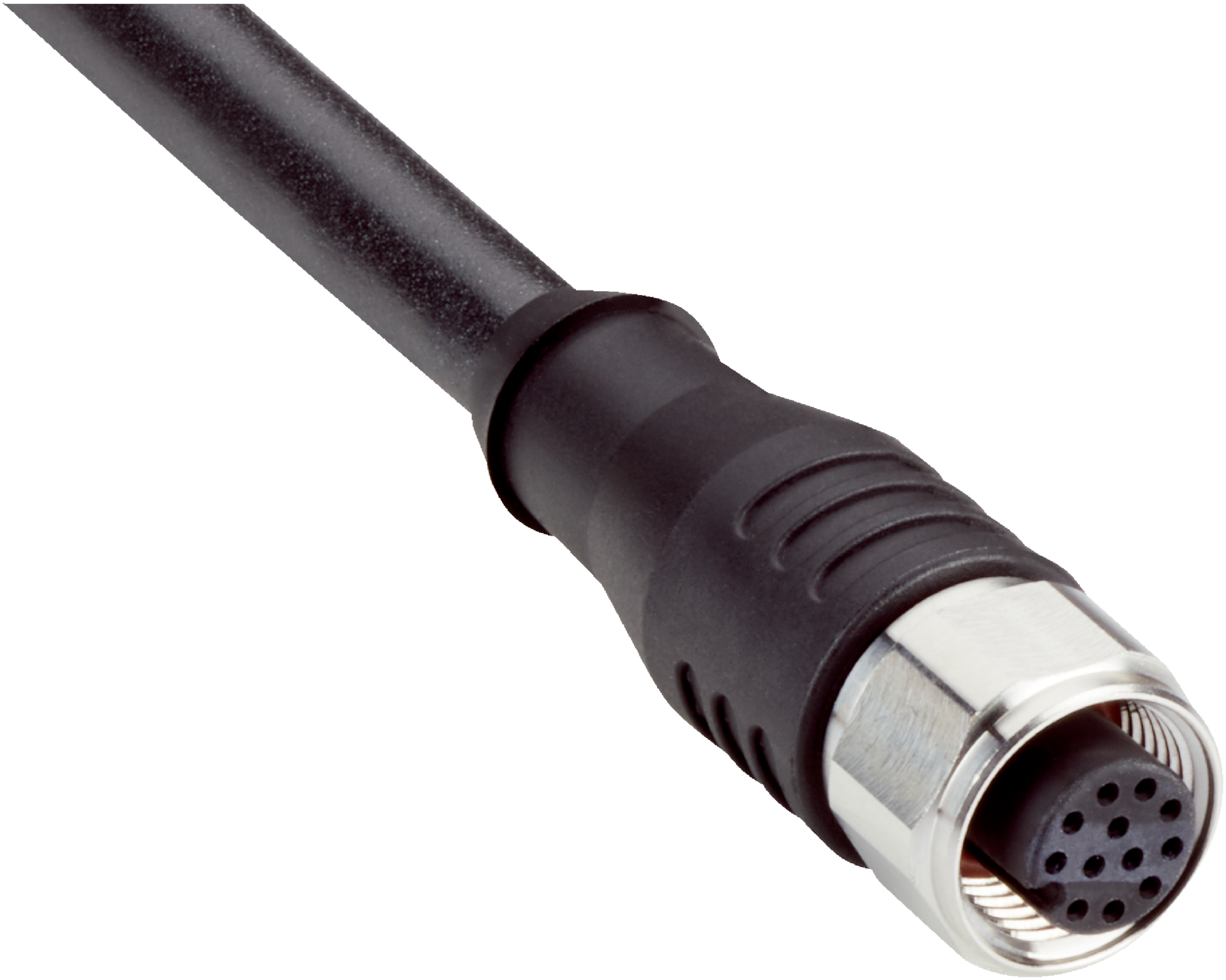

M12 12-Pin Sensor Cable | 5m Length | PUR Jacket | Shielded | by SICK
The M12 12-pin sensor cable is designed for reliable connections in industrial automation, featuring a 5m length and a durable black/matte PUR jacket. Ideal for outdoor sensor and actuator applications, this shielded cable ensures signal integrity and is perfect for environments with oils and lubricants. With a special wiring feature of swapped pins 1 and 2, it meets the needs of various installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: M12 12-pin sensor cable, PUR sensor cable, actuator cable with M12 connector
Technical Specifications
- Connection type head A: Female connector, M12, 12-pin, straight, A-coded
- Connection type head B: Flying leads
- Cable length: 5 m
- Cable wires: 12-wire
- Cable jacket material: PUR
- Cable jacket color: Black/matte
- Cable diameter: 7.5 mm
- Conductor cross section: 0.14 mm²
- Shielding: Shielded
- Locking nut material: Stainless steel (V4A/1.4404)
- Signal type: Sensor/actuator cable
- Special feature: Pin 1 and pin 2 swapped over
- Bending radius flexible use: > 12 x cable diameter
- Bending radius stationary position: > 5 x cable diameter
- Dimensions (H x L x W): 10mm x 5000mm x 10mm
- Weight: 0.2 kg
Key Features
- Female connector, M12, 12-pin, straight, A-coded
- Flying leads connection type
- Stainless steel locking nut (V4A/1.4404)
- 5 m length, 12-wire PUR cable
- Black/matte PUR jacket
- Shielded cable for signal integrity
- Pin 1 and pin 2 swapped over for special wiring needs
- Flexible use bending radius > 12 x cable diameter
- Stationary position bending radius > 5 x cable diameter
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Drag chain operation
- Zones with oils and lubricants
- Robotics
- Outdoor sensor and actuator connections
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable PUR jacket reduces need for frequent replacements, minimizing waste
- Shielded cable reduces electromagnetic interference, improving system efficiency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy.
Available Now

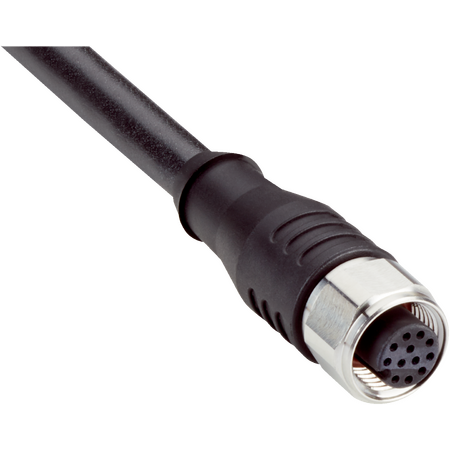

The SICK YF2A6B-050S01XLEAX sensor/actuator cable is available for immediate purchase, ideal for industrial automation and outdoor sensor applications.
