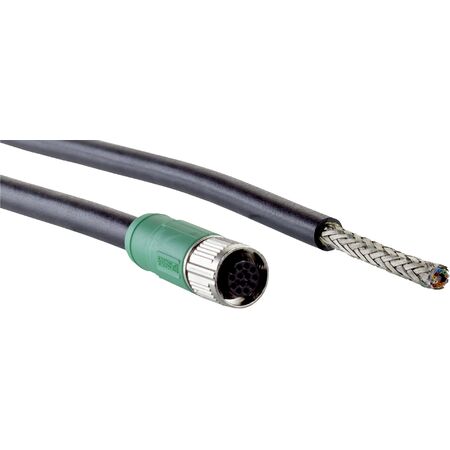

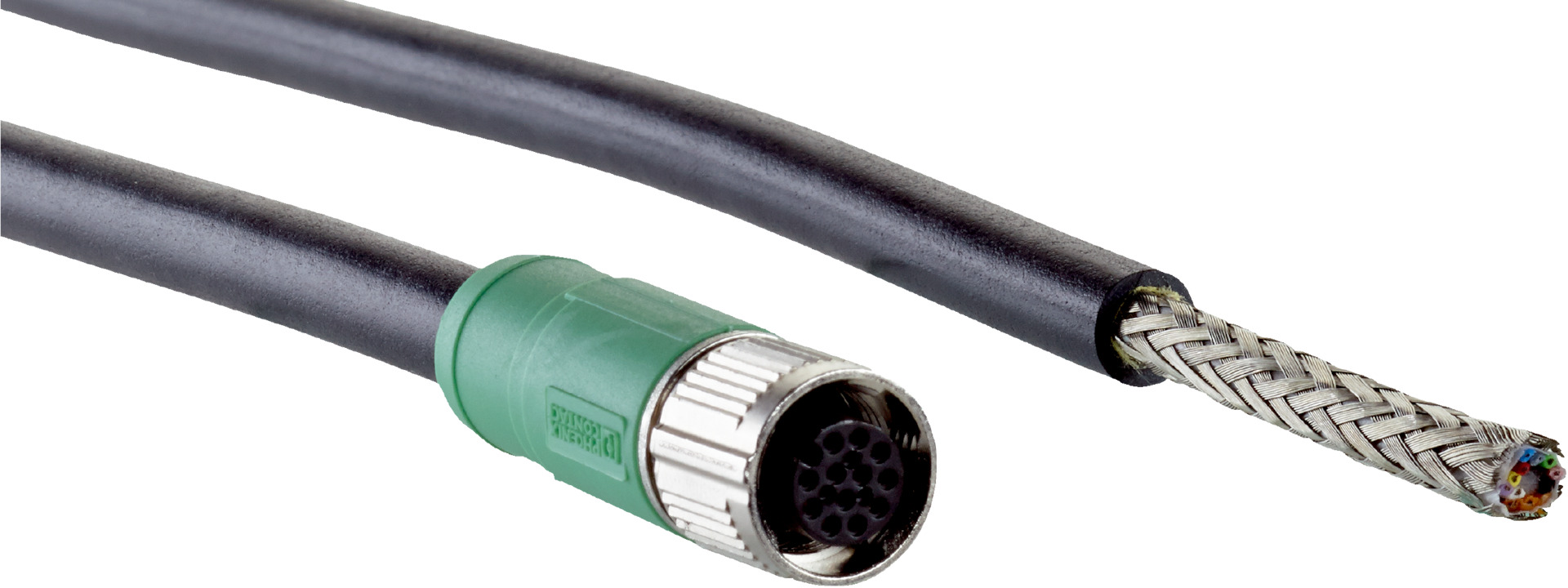

M12 12-Pin Sensor Cable | 5m Length | Shielded PUR Jacket | IP65/IP67/IP69K Rated | by SICK
The M12 12-pin sensor cable is designed for reliable connections in industrial automation systems. With a 5m length and a shielded PUR halogen-free jacket, it ensures durability and compliance with electrical standards. Ideal for sensor and encoder connections, this cable features a female M12 connector and flying leads for flexible installation, making it perfect for drag chain applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Female connector, M12, 12-pin, straight, A-coded
- Connection type head B: Flying leads
- Cable length: 5 m
- Cable wires: 12-wire, 0.14 mm² conductor cross section
- Jacket material: PUR, halogen-free
- Cable diameter: 8.5 mm
- Shielding: Shielded
- Bending radius flexible use: > 10 x cable diameter
- Bending radius stationary position: > 6 x cable diameter
- Reference voltage: ≤ 60 V
- Signal type: SSI
- Enclosure rating: IP65 / IP67 / IP69K
- Dimensions (H x L x W): 10mm x 5000mm x 10mm
- Weight: 0.2 kg
Key Features
- 5 m length, 12-wire shielded cable with PUR halogen-free jacket
- Female M12, 12-pin, straight, A-coded connector on head A
- Flying leads on head B for flexible connection
- High protection rating: IP65, IP67, IP69K
- Suitable for drag chain applications
- Flexible bending radius > 10 x cable diameter, stationary > 6 x cable diameter
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper connection and compliance with electrical standards.
Applications
- Industrial automation systems
- Sensor and encoder connections
- Drag chain use in machinery
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free PUR jacket reduces harmful emissions in case of fire
- Durable and shielded design extends product life and reduces waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK DOL-1212-G05MAC1 cable is available for immediate purchase, ideal for industrial automation and sensor connection applications.
