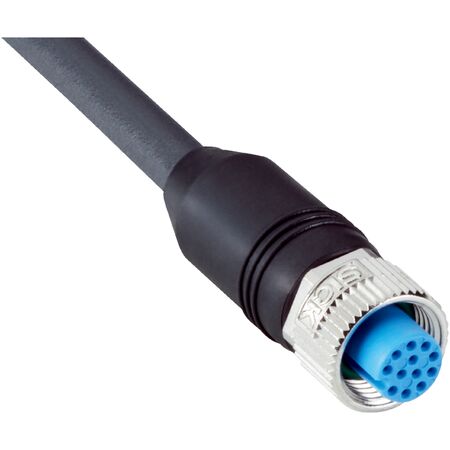

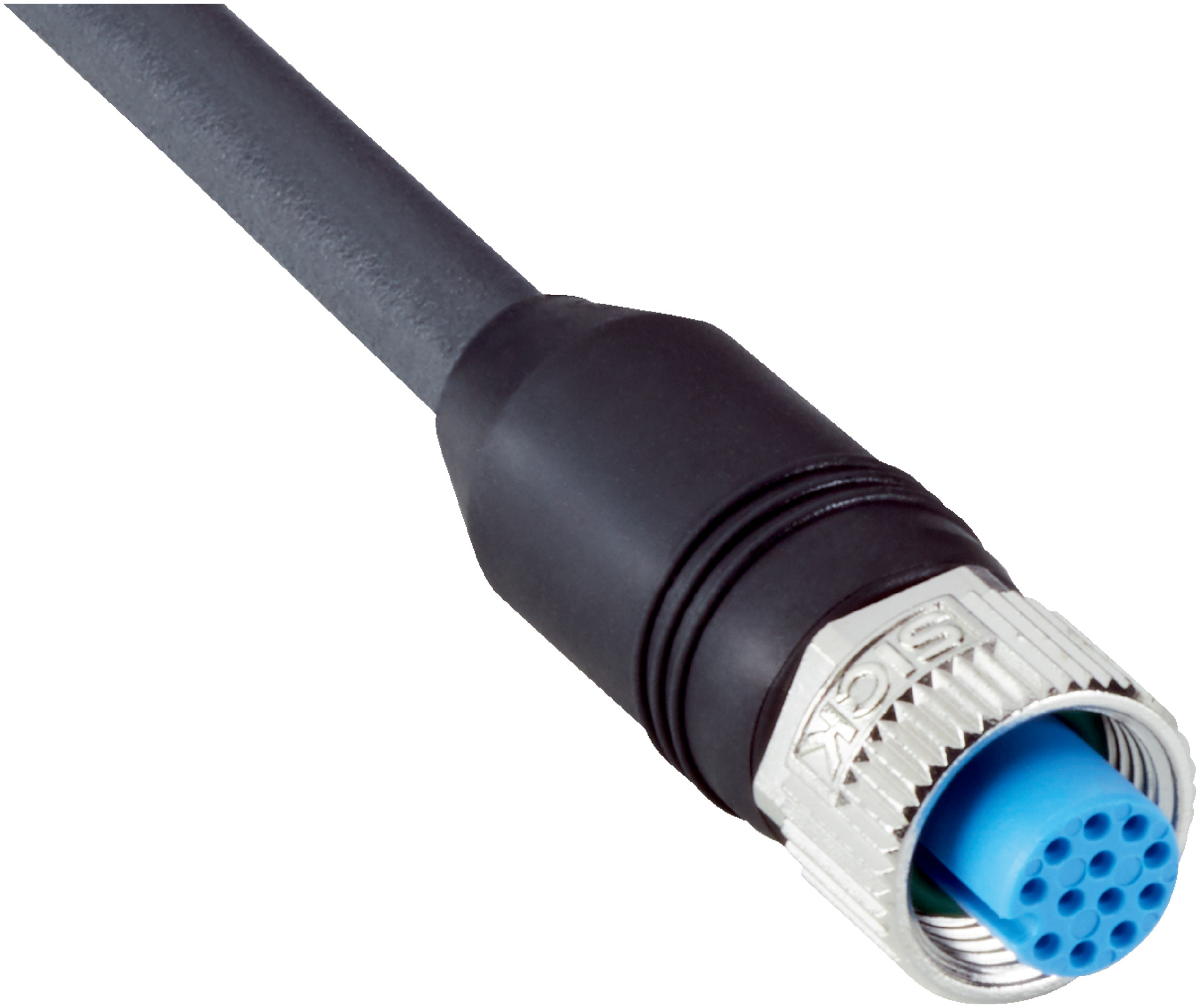

M12 12-Pin Sensor Cable | Female Connector & Flying Leads | IP65/IP66K/IP67 Rated | by SICK
The M12 12-pin sensor cable is designed for robust industrial applications, featuring a female connector and flying leads for versatile connectivity. With a durable TPU construction and IP65/IP66K/IP67 enclosure rating, this cable is perfect for use in uncontaminated zones, robotics, and drag chain operations, ensuring reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Female connector, M12, 12-pin, straight, A-coded
- Connection type head B: Flying leads
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Seal material: FKM
- Cable length: 10 m
- Cable material: PUR, halogen-free
- Cable diameter: 6.5 mm
- Conductor cross section: 0.14 mm²
- Shielding: Shielded
- Bending radius: Flexible use > 10 x cable diameter
- Operating temperature: Flexible use -25 °C to +80 °C, Stationary -40 °C to +80 °C, Drag chain -25 °C to +80 °C, Head -25 °C to +85 °C
- Enclosure rating: IP65 / IP66K / IP67
- Nominal voltage: 300 V AC
- Test voltage: 2000 V AC
- Current loading: 1.5 A
- Torsion force: 30° / 1 m
- Torsion cycles: 2,000,000
- Insulation resistance: 100 MΩ
- Overvoltage category: III
- Flame retardant according to UL 1581 Section 1090 (H), CSA FT2 / IEC 60332-2-2
- Dimensions (H x L x W): 13mm x 10000mm x 13mm
- Weight: 0.3 kg
Key Features
- Female connector, M12, 12-pin, straight, A-coded
- Flying leads connection
- Screw connection locking plug
- TPU connector material with black color
- Zinc die-cast, nickel-plated locking nut
- FKM seal material
- 10 m PUR halogen-free cable, black jacket
- Shielded cable with 0.14 mm² conductor cross section
- High bending radius suitable for flexible use, stationary position, and drag chain operation
- Operating temperature range from -40 °C to +85 °C depending on use
- IP65 / IP66K / IP67 enclosure rating
- Flame retardant cable according to UL 1581 Section 1090 (H), CSA FT2 / IEC 60332-2-2
- Nominal voltage 300 V AC, test voltage 2000 V AC
- Current loading 1.5 A
- Torsion cycles up to 2,000,000
- High insulation resistance of 100 MΩ
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Uncontaminated zones
- Zones with oils and lubricants
- Robot applications
- Drag chain operation
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free PUR cable reduces environmental impact in case of fire
- Flame retardant materials enhance safety and reduce fire hazards
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK YF2A2B-100UD2XLEAX sensor/actuator cable is available for immediate purchase, ideal for industrial automation, robotics, and drag chain applications.
