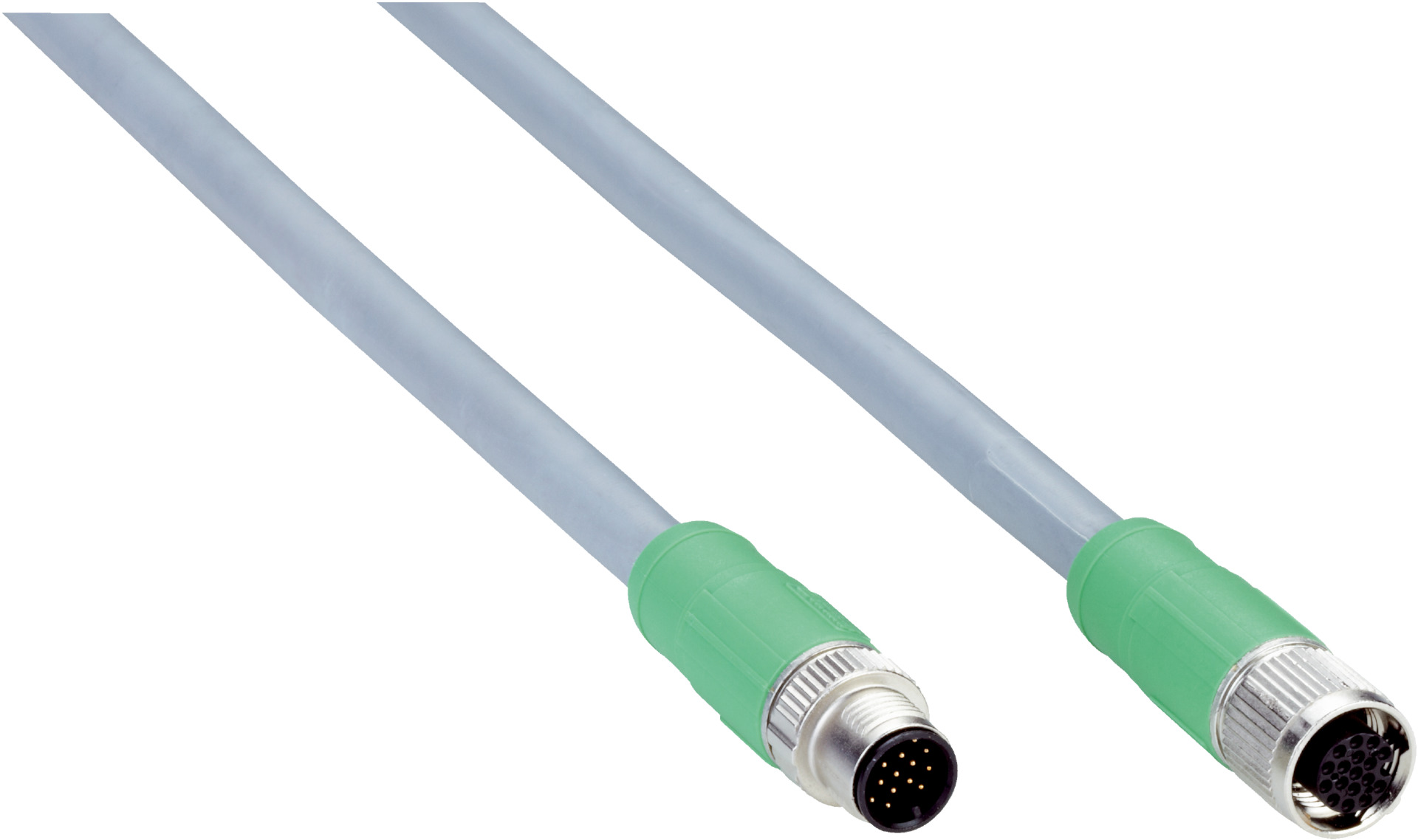

M12 17-Pin Cable Assembly | IP68 Rated | 2m Length | 1,000,000 Bending Cycles | by SICK
The M12 17-pin cable assembly is designed for industrial automation systems, featuring female and male connectors with a quick screw locking mechanism. With a robust IP68 rating and a flexible operating temperature range from -40 °C to +80 °C, this cable is perfect for drag chain operations and ensures reliable signal transmission for power, serial, CAN, and digital I/Os.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Female connector, M12, 17-pin, straight, A-coded
- Connection type head B: Male connector, M12, 17-pin, straight, A-coded
- Locking plug connector: Quick screw connection
- Cable length: 2 m
- Cable wires: 17-wire
- Cable diameter: 9.1 mm
- Shielding: Shielded
- Bending radius: Flexible use > 10 x cable diameter, Stationary position > 5 x cable diameter, Drag chain operation > 10 x cable diameter
- Bending cycles: 1,000,000
- Signal type: Power, serial, CAN, digital I/Os
- Special feature: Suitable for 2 A current
- Enclosure rating: IP68
- Operating temperature: Flexible use -25 °C to +80 °C, Stationary position -40 °C to +80 °C
- Dimensions (H x L x W): 20mm x 2000mm x 20mm
- Weight: 0.3 kg
Key Features
- Female and male M12, 17-pin straight A-coded connectors
- Quick screw locking plug connector
- Shielded 2 m, 17-wire cable with 9.1 mm diameter
- High bending radius suitable for flexible use and drag chain operation
- Operating temperature range from -40 °C to +80 °C
- IP68 rated enclosure for robust protection
- Supports current up to 2 A
- Durable with 1,000,000 bending cycles
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial electrical connections and compliance with AS/NZS 3000 standards.
Applications
- Industrial automation systems
- Drag chain operation environments
- Power, serial, CAN, and digital I/O signal transmission
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Shielded cable minimizes electromagnetic interference, improving system efficiency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now

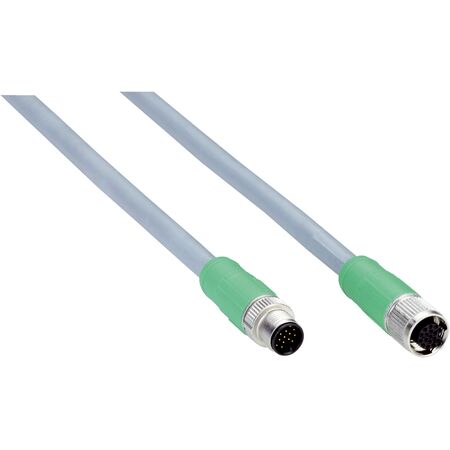

The SICK YM2A8D-020XXXF2A8D cable assembly is available for immediate purchase, ideal for industrial automation and drag chain applications requiring reliable and durable M12 17-pin connections.
