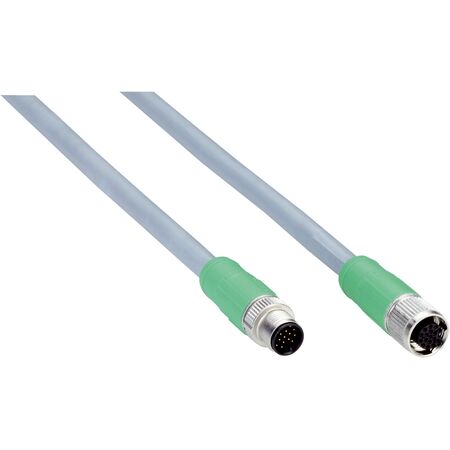

M12 17-Pin Cable Assembly | IP68 Rated | 0.4m Shielded | by SICK
The M12 17-pin cable assembly is designed for robust industrial automation systems, featuring female and male connectors with quick screw locking for secure connections. With a flexible 0.4m shielded cable and an IP68 rating, it ensures reliable performance in drag chain operations and harsh environments, making it ideal for power, serial, CAN, and digital I/O signal transmission.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Female connector, M12, 17-pin, straight, A-coded
- Connection type head B: Male connector, M12, 17-pin, straight, A-coded
- Locking plug connector: Quick screw connection
- Cable length: 0.4 m
- Cable wires: 17-wire
- Cable diameter: 9.1 mm
- Shielding: Shielded
- Bending radius: Flexible use > 10 x cable diameter, Stationary position > 5 x cable diameter, Drag chain operation > 10 x cable diameter
- Bending cycles: 1,000,000
- Signal type: Power, serial, CAN, digital I/Os
- Current rating: Suitable for 2 A
- Operating temperature: Flexible use -25 °C to +80 °C, Stationary position -40 °C to +80 °C
- Enclosure rating: IP68
- Dimensions (H x L x W): 20mm x 400mm x 20mm
- Weight: 0.1 kg
Key Features
- Female and male M12, 17-pin straight connectors with A-coding
- Quick screw locking plug connector
- Shielded 0.4 m, 17-wire cable with 9.1 mm diameter
- High bending radius suitable for flexible use, stationary position, and drag chain operation
- Durable for 1,000,000 bending cycles
- Operating temperature range from -40 °C to +80 °C
- Enclosure rating IP68 for dust and water protection
- Suitable for 2 A current
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with electrical standards.
Applications
- Industrial automation systems
- Drag chain operation environments
- Power, serial, CAN, and digital I/O signal transmission
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Shielded cable minimizes electromagnetic interference, improving system efficiency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's warranty policy for details.
Available Now
The SICK YM2A8D-C40XXXF2A8D cable assembly is available for immediate purchase, ideal for industrial automation and drag chain applications requiring reliable and durable connectivity.
