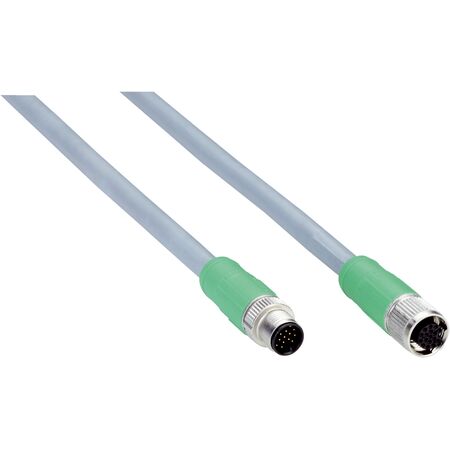

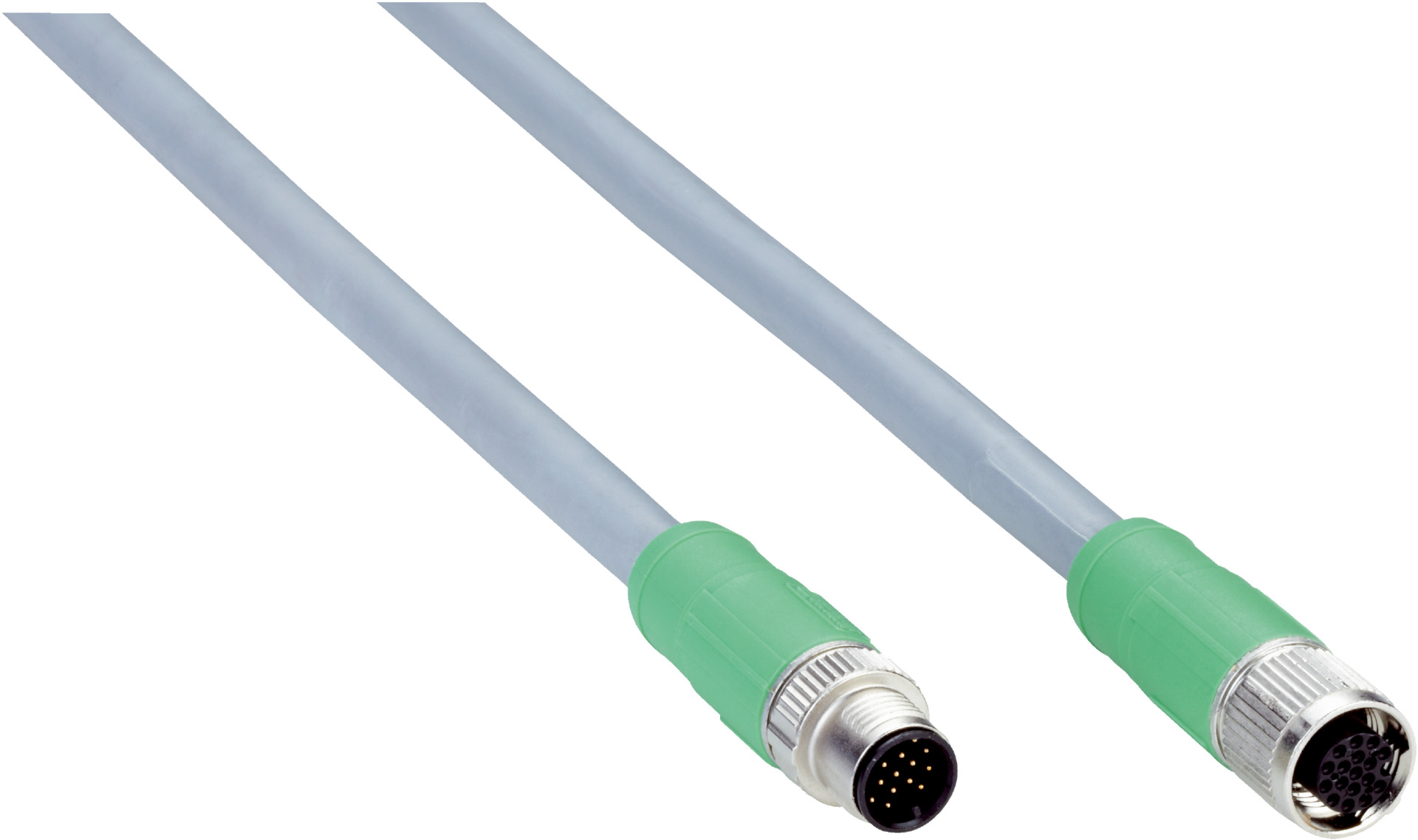

M12 17-Pin Cable Assembly | Shielded | 3m Length | IP68 Rated | by SICK
The M12 17-pin cable assembly is designed for industrial automation, featuring female and male connectors with a quick screw locking mechanism. This shielded 3m cable is built for drag chain operation, ensuring durability with a bending cycle rating of 1,000,000. With an IP68 enclosure rating, it provides excellent dust and water protection, making it ideal for demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Female connector, M12, 17-pin, straight, A-coded
- Connection type head B: Male connector, M12, 17-pin, straight, A-coded
- Locking plug connector: Quick screw connection
- Cable length: 3 m
- Cable wires: 17-wire
- Cable diameter: 9.1 mm
- Shielding: Shielded
- Bending radius: Flexible use > 10 x cable diameter, Stationary position > 5 x cable diameter, Drag chain operation > 10 x cable diameter
- Bending cycles: 1,000,000
- Signal type: Power, serial, CAN, digital I/Os
- Special feature: Suitable for 2 A
- Application: Drag chain operation
- Enclosure rating: IP68
- Operating temperature: Flexible use -25 °C to +80 °C, Stationary position -40 °C to +80 °C
- Dimensions (H x L x W): 20mm x 3000mm x 20mm
- Weight: 0.3 kg
Key Features
- Female and male M12, 17-pin straight A-coded connectors
- Quick screw locking plug connector
- Shielded 3 m, 17-wire cable with 9.1 mm diameter
- High bending radius suitable for flexible use and drag chain operation
- Durable for 1,000,000 bending cycles
- Operating temperature range from -40 °C to +80 °C
- Enclosure rating IP68 for dust and water protection
- Suitable for 2 A current
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with electrical standards.
Applications
- Industrial automation and control systems
- Drag chain operation environments
- Power, serial, CAN, and digital I/O signal transmission
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Shielded cable minimizes electromagnetic interference, improving system efficiency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK YM2A8D-030XXXF2A8D cable assembly is available for immediate purchase, ideal for industrial automation and control applications requiring durable and flexible cabling solutions.
