M12 17-Pin Cable Assembly | Shielded | IP68 Rated | 3m Length | by SICK

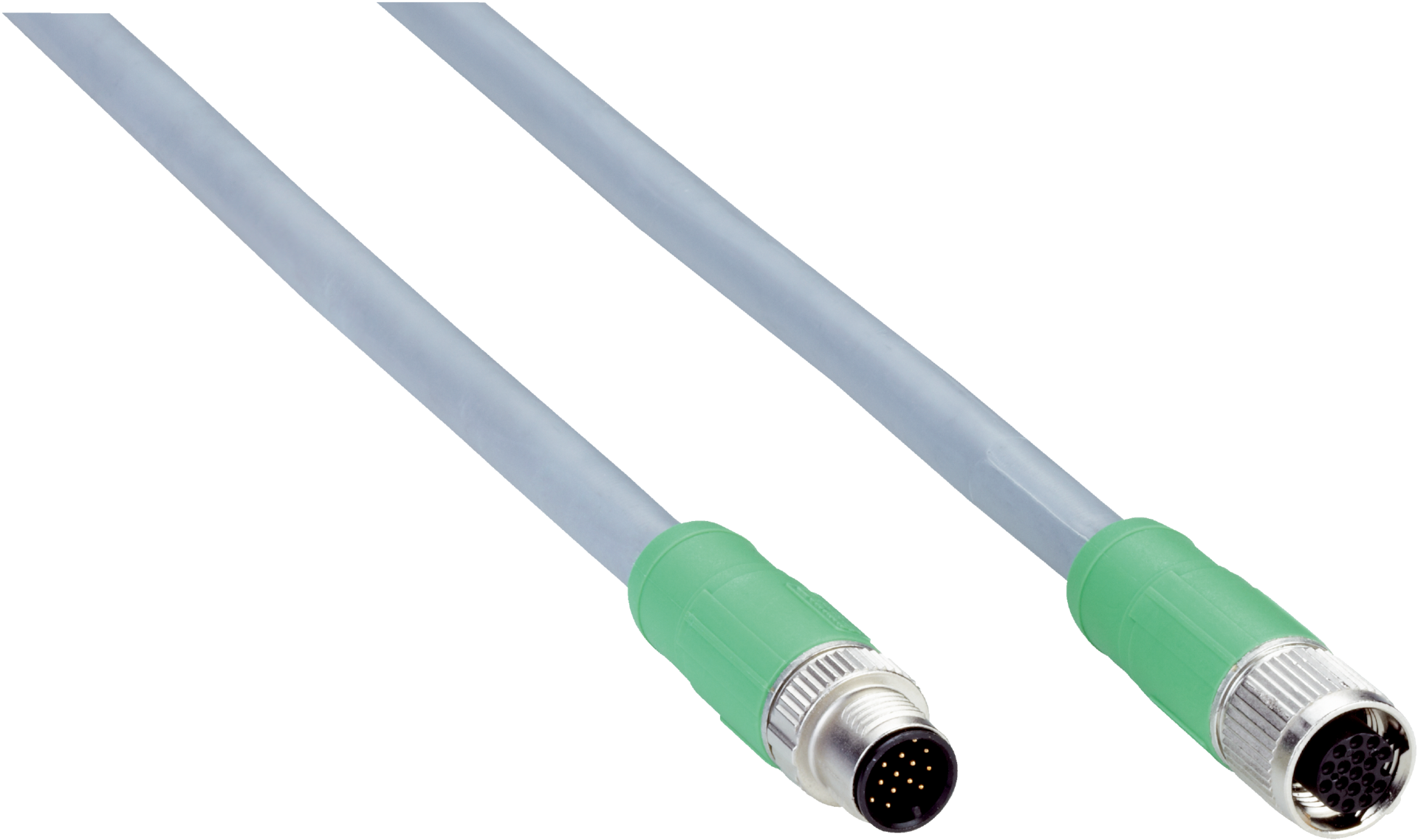

The M12 17-pin cable assembly is designed for industrial automation systems, featuring female and male connectors with quick screw locking. This shielded 3m cable supports power, serial, CAN, and digital I/O signal transmission, making it ideal for drag chain operation environments. With an IP68 rating and a durable design for 1,000,000 bending cycles, it ensures reliable performance in demanding conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: M12 17-pin cable assembly, Industrial M12 connector cable, Shielded M12 cable, Drag chain cable assembly
Technical Specifications
- Connection type head A: Female connector, M12, 17-pin, straight, A-coded
- Connection type head B: Male connector, M12, 17-pin, straight, A-coded
- Locking plug connector: Quick screw connection
- Cable length: 3 m
- Cable wires: 17-wire
- Cable diameter: 9.1 mm
- Shielding: Shielded
- Bending radius: Flexible use > 10 x cable diameter, Stationary position > 5 x cable diameter, Drag chain operation > 10 x cable diameter
- Operating temperature: Flexible use -25 °C to +80 °C, Stationary position -40 °C to +80 °C
- Bending cycles: 1,000,000
- Signal type: Power, serial, CAN, digital I/Os
- Current rating: Suitable for 2 A
- Enclosure rating: IP68
- Dimensions (H x L x W): 15mm x 3000mm x 15mm
- Weight: 0.2 kg
Key Features
- Female and male M12, 17-pin straight A-coded connectors
- Quick screw locking plug connector
- Shielded 3 m, 17-wire cable with 9.1 mm diameter
- High bending radius suitable for flexible use and drag chain operation
- Operating temperature range from -40 °C to +80 °C
- IP68 rated enclosure for protection against dust and water
- Supports up to 2 A current
- Durable for 1,000,000 bending cycles
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with electrical standards.
Applications
- Industrial automation systems
- Power, serial, CAN, and digital I/O signal transmission
- Drag chain operation environments
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Shielding reduces electromagnetic interference, improving system efficiency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now

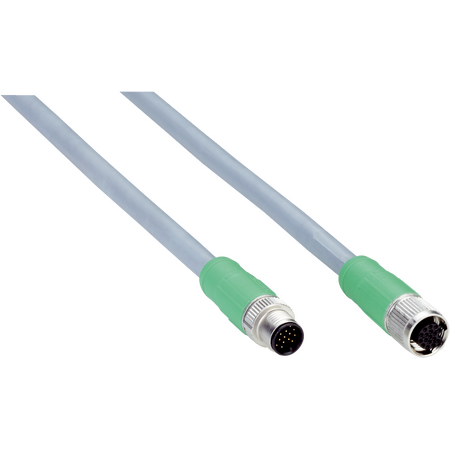

The SICK YM2A8D-030XXXF2A8D cable assembly is available for immediate purchase, ideal for industrial automation and control system applications.
