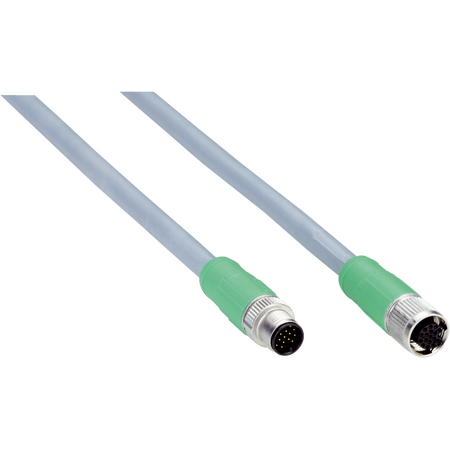

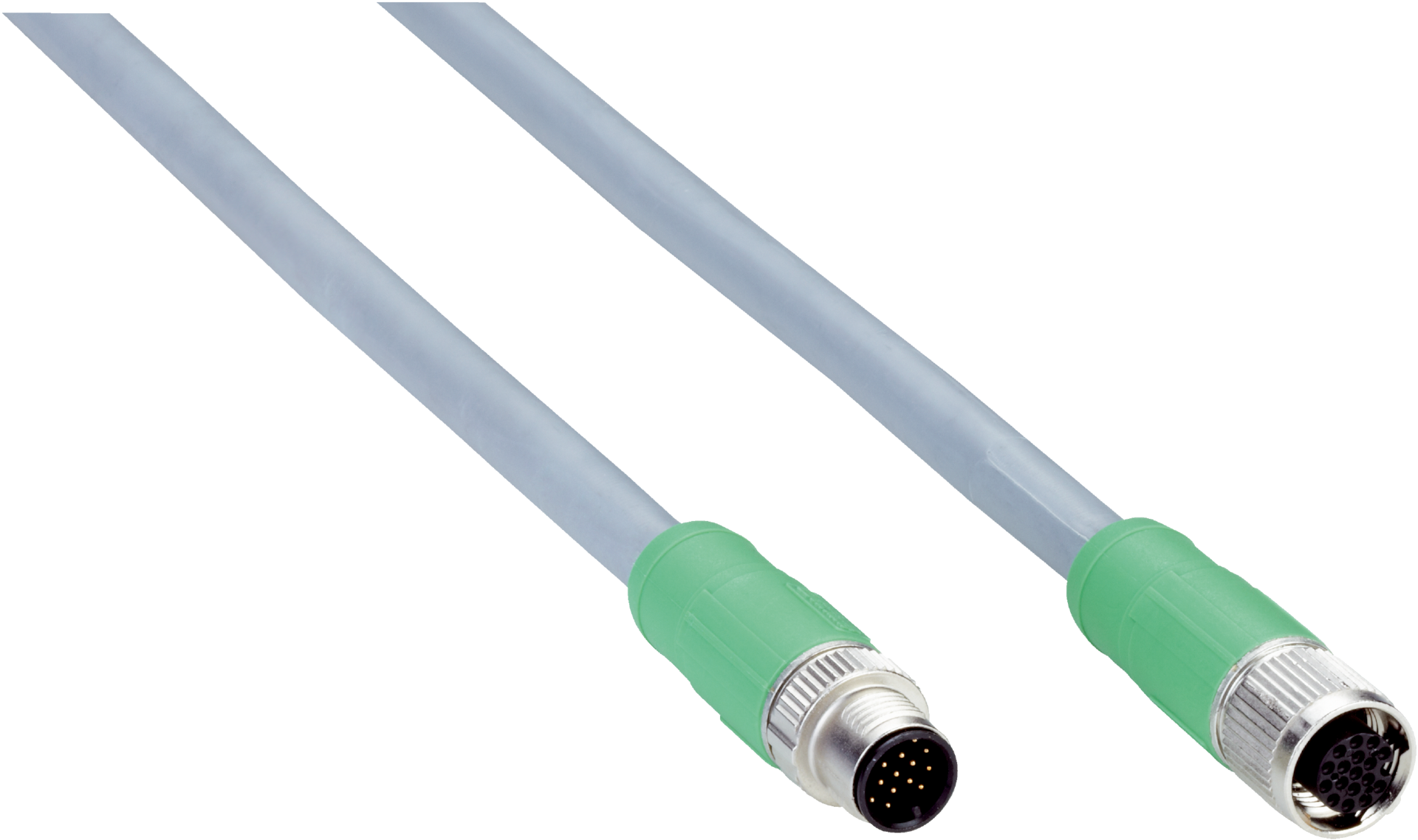

M12 17-Pin Industrial Cable Assembly | Shielded | IP68 Rated | 2m Length | by SICK
The M12 17-pin industrial cable assembly is designed for robust industrial automation systems, featuring female and male connectors with quick screw locking for secure connections. With a 2m shielded cable, it supports power, serial, CAN, and digital I/O signals, making it ideal for drag chain operations in demanding environments. Its IP68 rating ensures dust and water resistance, while the durable design withstands up to 1,000,000 bending cycles.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: M12 17-pin industrial cable, shielded automation cable, drag chain cable assembly
Technical Specifications
- Connection type head A: Female connector, M12, 17-pin, straight, A-coded
- Connection type head B: Male connector, M12, 17-pin, straight, A-coded
- Locking plug connector: Quick screw connection
- Cable length: 2 m
- Cable wires: 17-wire
- Cable diameter: 9.1 mm
- Shielding: Shielded
- Bending radius: Flexible use > 10 x cable diameter, Stationary position > 5 x cable diameter, Drag chain operation > 10 x cable diameter
- Bending cycles: 1,000,000
- Signal type: Power, serial, CAN, digital I/Os
- Special feature: Suitable for 2 A
- Application: Drag chain operation
- Enclosure rating: IP68
- Operating temperature: Flexible use -25 °C to +80 °C, Stationary position -40 °C to +80 °C
- Dimensions (H x L x W): 15mm x 2000mm x 15mm
- Weight: 0.2 kg
Key Features
- Female and male M12, 17-pin straight A-coded connectors
- Quick screw locking plug connector for secure connections
- Shielded 2 m, 17-wire cable with 9.1 mm diameter
- High bending radius suitable for flexible use and drag chain operation
- Operating temperature range from -40 °C to +80 °C
- Supports power, serial, CAN, and digital I/O signals
- Durable for 1,000,000 bending cycles
- Enclosure rating IP68 for dust and water resistance
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation systems
- Power transmission and serial communication
- Drag chain operation environments requiring flexible and durable cabling
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Shielding reduces electromagnetic interference, improving system efficiency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK YM2A8D-020XXXF2A8D cable assembly is available for immediate purchase, ideal for industrial automation and drag chain applications requiring reliable and durable cabling.
