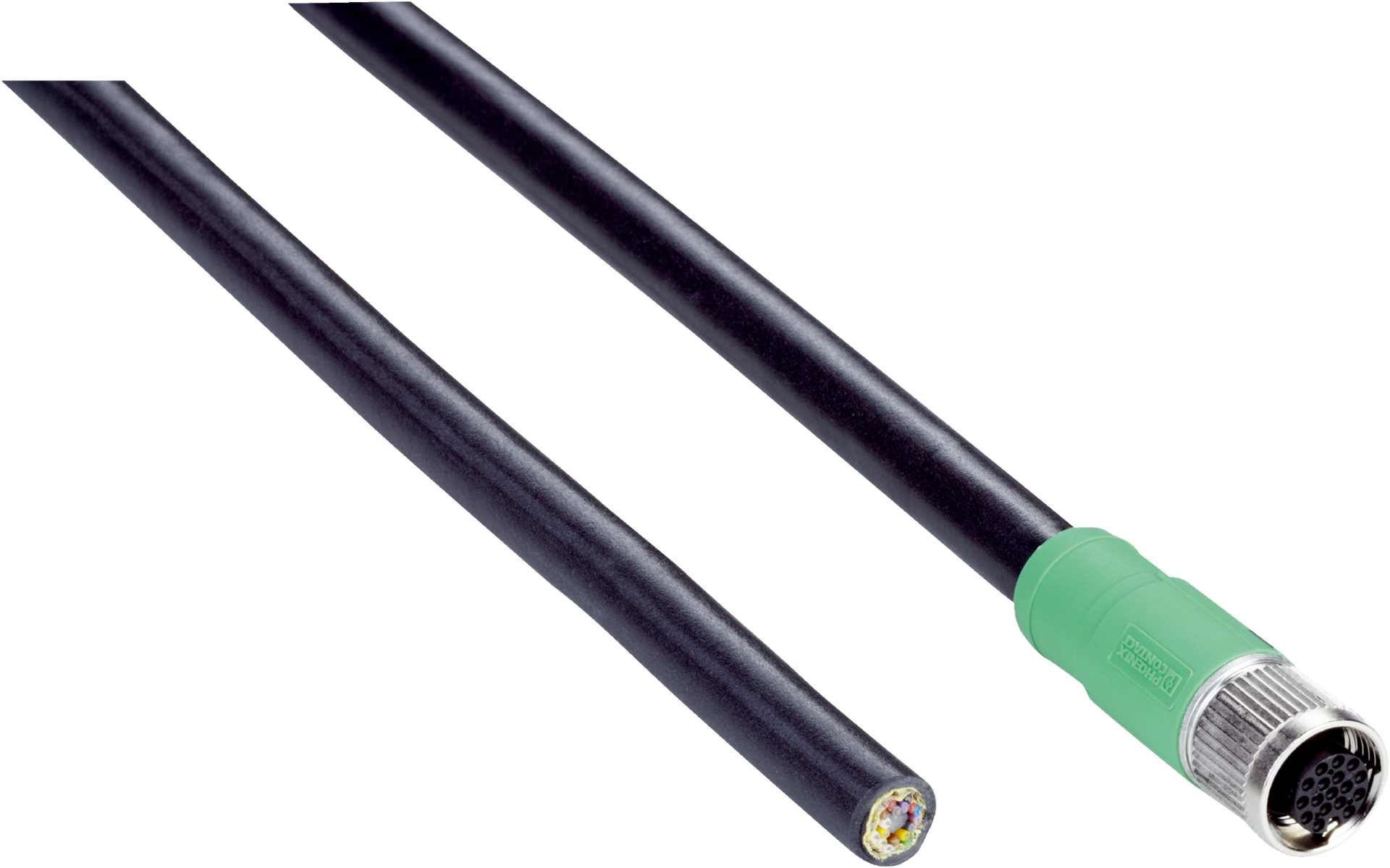

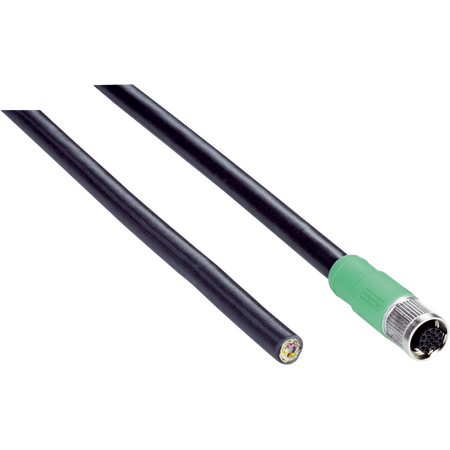

M12 17-Pin Sensor Actuator Cable | TPU Material | IP65/IP67 Rated | 3m Length | by SICK
The M12 17-Pin Sensor Actuator Cable is designed for robust industrial applications, featuring a durable TPU connector and a shielded twisted pair for optimal signal integrity. With an IP65/IP67 enclosure rating, it withstands harsh environments, making it ideal for robot drag chain operations and zones with oils and lubricants.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Sensor cable M12 17-pin, actuator cable, robot drag chain cable, shielded sensor cable
Technical Specifications
- Connection type head A: Female connector, M12, 17-pin, straight, A-coded
- Connection type head B: Flying leads
- Connector material: TPU
- Locking nut material: Nickel-plated brass
- Cable length: 3 m
- Cable type: 17-wire, PUR jacket
- Cable diameter: 9.2 mm
- Conductor cross section: 0.14 mm²
- Shielding: Shielded twisted pair
- Bending radius flexible use: > 10 x cable diameter
- Bending radius stationary position: > 5 x cable diameter
- Operating temperature flexible use: -5 °C to +80 °C
- Operating temperature stationary position: -30 °C to +80 °C
- Operating temperature head: -25 °C to +90 °C
- Enclosure rating: IP65/IP67
- Traversing speed: 3 m/s
- Travelling distance: 10 m
- Acceleration: ≤ 10 m/s²
- Tightening torque: 0.4 Nm
- Dimensions (H x L x W): 10mm x 3000mm x 10mm
- Weight: 0.2 kg
Key Features
- Female connector, M12, 17-pin, straight, A-coded
- Flying leads connection
- TPU connector material with black color
- Nickel-plated brass locking nut
- 3 m length, 17-wire PUR cable with 9.2 mm diameter
- Shielded twisted pair cable for signal integrity
- High bending radius for flexible use and stationary position
- Operating temperature range: -30 °C to +90 °C
- Enclosure rating IP65/IP67 for robust protection
- Supports traversing speed up to 3 m/s and travelling distance up to 10 m
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Zones with oils and lubricants
- Robot drag chain operation
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials and shielding reduce cable replacement frequency, minimizing waste
- High resistance to oils and lubricants extends product life in industrial environments
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK YF2A2D-030UV1XLEAX sensor/actuator cable is available for immediate purchase, ideal for industrial automation and robotics applications.
