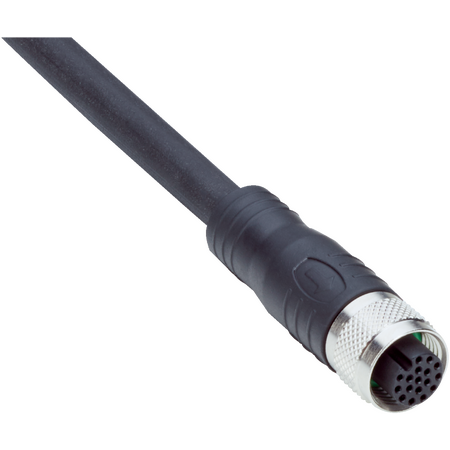

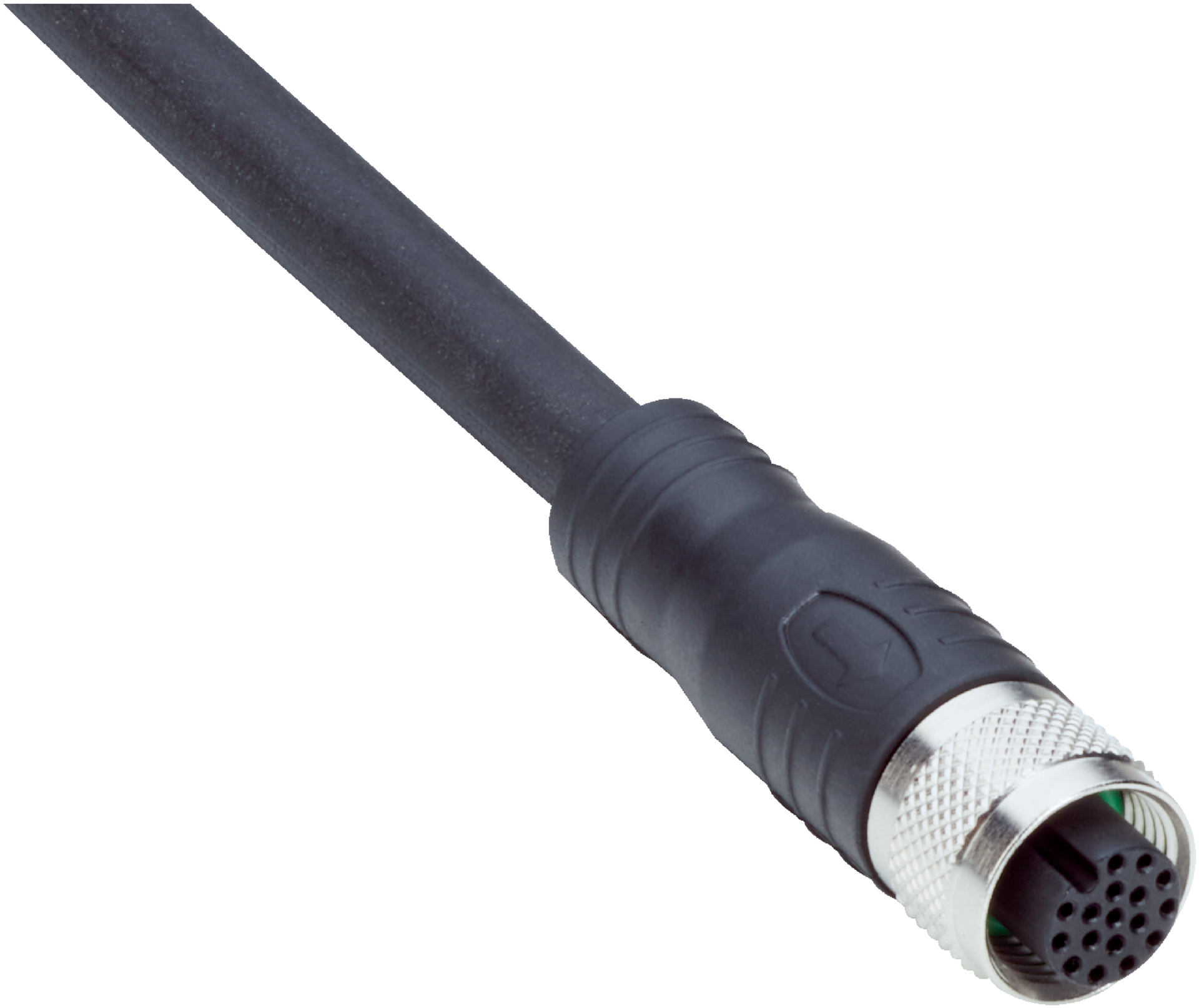

M12 17-Pin Sensor Cable | Shielded PUR Jacket | IP67 Rated | 10m Length | by SICK
The M12 17-pin sensor cable is designed for robust industrial applications, featuring a shielded PUR jacket for enhanced durability and IP67 rating for dust and water protection. Ideal for robot drag chain operations and environments with oils and lubricants, this cable ensures reliable signal transmission and longevity in demanding conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: M12 17-pin sensor cable, PUR sensor cable, Robot drag chain cable, Shielded actuator cable
Technical Specifications
- Connection type head A: Female connector, M12, 17-pin, straight, A-coded
- Connection type head B: Flying leads
- Locking plug connector: Screw connection
- Connector material: TPU
- Connector color: Black
- Locking nut material: Zinc die-cast, nickel-plated
- Seal material: FKM
- Tightening torque: 0.4 Nm
- Cable length: 10 m
- Cable wires: 17-wire
- Jacket material: PUR
- Jacket color: Black
- Cable diameter: 7.5 mm
- Conductor cross section: 0.14 mm²
- Shielding: Shielded
- Bending radius flexible use: > 12 x cable diameter
- Bending radius stationary position: > 8 x cable diameter
- Operating temperature flexible use: –20 °C to +80 °C
- Operating temperature stationary position: –40 °C to +80 °C
- Operating temperature head: –25 °C to +85 °C
- Reference voltage: ≤ 30 V AC/DC
- Rated impulse voltage: 1.5 kV
- Current loading: ≤ 1.5 A
- Signal type: Sensor/actuator cable
- Enclosure rating: IP67
- Contamination rating: 3
- Insulation resistance: 100 MΩ
- Overvoltage category: III
- Specific insulation resistance: 30 mΩ
- Dimensions (H x L x W): 7.5mm x 10000mm x 7.5mm
- Weight: 0.1 kg
Key Features
- Female connector, M12, 17-pin, straight, A-coded
- Flying leads connection type head B
- Screw connection locking plug connector
- TPU connector material with black color
- Zinc die-cast, nickel-plated locking nut material
- FKM seal material
- 10 m length, 17-wire PUR cable with black jacket
- Cable diameter 7.5 mm with 0.14 mm² conductor cross section
- Shielded cable for interference protection
- Bending radius: Flexible use > 12 x cable diameter, Stationary position > 8 x cable diameter
- Operating temperature: Flexible use –20 °C to +80 °C, Stationary position –40 °C to +80 °C, Head –25 °C to +85 °C
- Enclosure rating IP67 for dust and water protection
- Contamination rating 3
- Insulation resistance 100 MΩ
- Overvoltage category III
- Rated impulse voltage 1.5 kV
- Current loading ≤ 1.5 A
- Signal type: Sensor/actuator cable
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with sensor and actuator cable connections and compliant with electrical safety standards.
Applications
- Zones with oils and lubricants
- Robot drag chain operation
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable PUR jacket material extends cable life reducing waste
- Shielding reduces electromagnetic interference improving system efficiency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK YF2A2D-100UV2XLEAX PUR/17*0,14/BK/SH sensor/actuator cable is available for immediate purchase, ideal for industrial automation and robotics applications requiring durable and reliable cabling.
