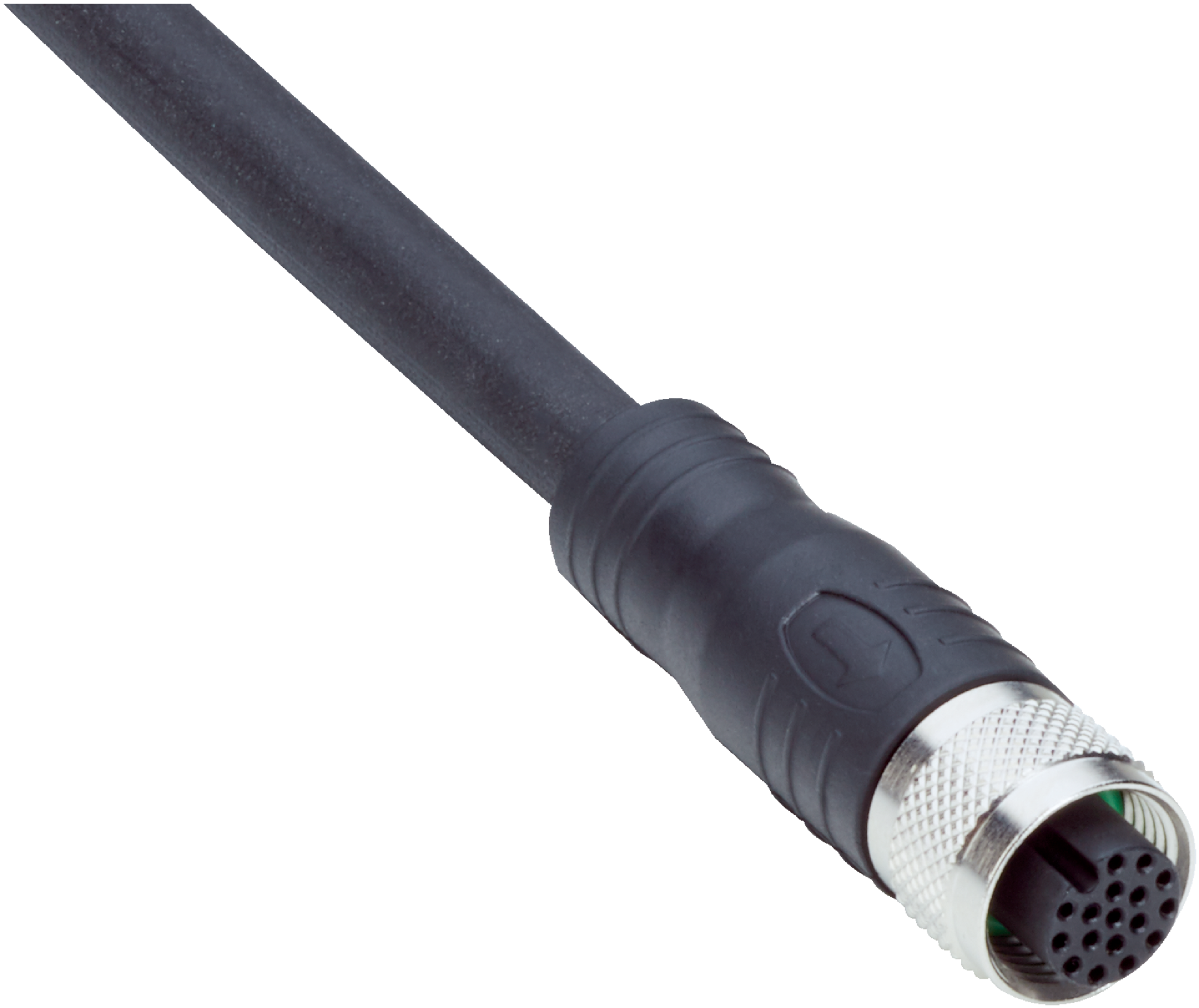

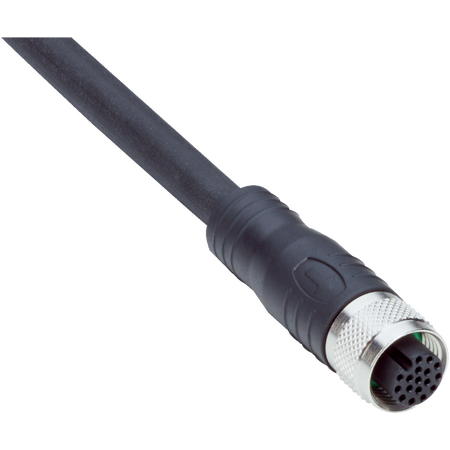

M12 17-Pin Sensor Cable | Shielded | TPU Material | IP67 Rated | by SICK
The M12 17-pin sensor cable is designed for robust industrial applications, featuring a shielded design and durable TPU material. With a temperature range of -20 °C to +80 °C for flexible use and an IP67 enclosure rating, this cable is perfect for environments with oils and lubricants, ensuring reliable performance in robotics and automation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: M12 17-pin sensor cable, actuator cable, robot drag chain cable, shielded sensor cable
Technical Specifications
- Connection type head A: Female connector, M12, 17-pin, straight, A-coded
- Connection type head B: Flying leads
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Seal material: FKM
- Cable length: 2 m
- Cable wires: 17-wire PUR
- Cable diameter: 7.5 mm
- Conductor cross section: 0.14 mm²
- Shielding: Shielded
- Bending radius flexible use: > 12 x cable diameter
- Bending radius stationary position: > 8 x cable diameter
- Operating temperature flexible use: –20 °C to +80 °C
- Operating temperature stationary position: –40 °C to +80 °C
- Operating temperature head: –25 °C to +85 °C
- Reference voltage: ≤ 30 V AC/DC
- Rated impulse voltage: 0.8 kV
- Current loading: ≤ 1.5 A
- Signal type: Sensor/actuator cable
- Insulation resistance: 100 MΩ
- Overvoltage category: III
- Specific insulation resistance: 30 mΩ
- Enclosure rating: IP67
- Contamination rating: 3
- Dimensions (H x L x W): 10mm x 2000mm x 10mm
- Weight: 0.1 kg
Key Features
- Female connector, M12, 17-pin, straight, A-coded on head A
- Flying leads on head B
- Screw connection locking plug connector
- TPU connector material with black color
- Zinc die-cast, nickel-plated locking nut
- FKM seal material
- 2 m, 17-wire PUR cable with black jacket
- Shielded cable with 7.5 mm diameter
- Flexible use temperature range: –20 °C to +80 °C
- Stationary position temperature range: –40 °C to +80 °C
- Head operating temperature: –25 °C to +85 °C
- IP67 enclosure rating
- Contamination rating 3
- Overvoltage category III
- Current loading up to 1.5 A
- Rated impulse voltage 0.8 kV
- Insulation resistance 100 MΩ
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician familiar with sensor and actuator cable connections to ensure proper functionality and safety.
Applications
- Zones with oils and lubricants
- Robot Drag chain operation
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials and robust design reduce replacement frequency and waste.
- Shielded cable minimizes electromagnetic interference, improving system efficiency.
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK YF2A2D-020UV2XLEAX sensor/actuator cable is available for immediate purchase, ideal for industrial automation and robotics applications requiring durable and reliable cabling.
