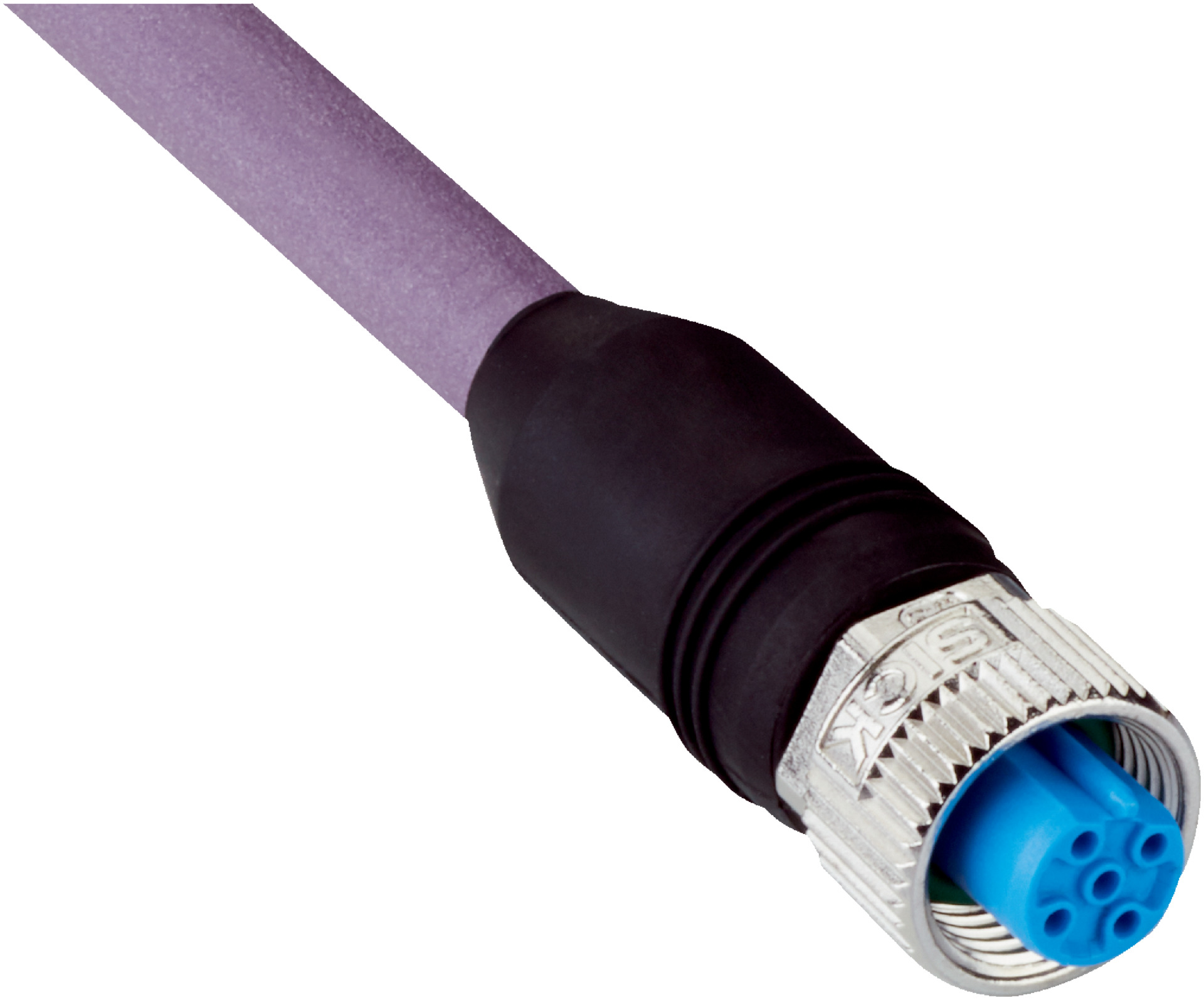

M12 2-Pin Female Connector Cable | 5m PUR Halogen-Free | IP65/IP66K/IP67 Rated | by SICK
The M12 2-pin female connector cable is designed for robust industrial automation applications, featuring a 5m halogen-free PUR cable and IP65/IP66K/IP67 enclosure rating. Ideal for drag chain operation, this cable supports data transmission for PROFIBUS DP systems, ensuring reliable connectivity in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Female connector, M12, 2-pin, straight, B-coded
- Connection type head B: Flying leads
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Seal material: FKM
- Tightening torque: 0.6 Nm
- Cable: 5 m, 2-wire, PUR, halogen-free
- Cable diameter: 7.7 mm
- Conductor cross section: 0.25 mm²
- Shielding: Shielded
- Bending radius flexible use: > 12 x cable diameter
- Bending radius stationary position: > 7.5 x cable diameter
- Bending radius drag chain operation: > 12 x cable diameter
- Bending cycles: 5,000,000
- Nominal voltage, cable: 300 V AC
- Test voltage, cable: 2,000 V AC
- Reference voltage: 48 V AC / 60 V DC
- Rated impulse voltage: 1.5 kV
- Current loading: 4 A
- Traversing speed: 3 m/s
- Travelling distance: 5 m
- Acceleration: ≤ 5 m/s²
- Signal type: Fieldbus, PROFIBUS DP
- Data transmission rate: ≤ 0.012 Gbit/s
- Enclosure rating: IP65 / IP66K / IP67
- Operating temperature flexible use: -20 °C to +60 °C
- Operating temperature stationary position: -40 °C to +80 °C
- Operating temperature drag chain operation: -20 °C to +60 °C
- Operating temperature head: -25 °C to +85 °C
- Contamination rating: 3
- Insulation resistance: > 100 mΩ
- Overvoltage category: III
- Thermal resistance piping: Flame retardant acc. to UL 1581 Section 1090, Section 1100 (FT2) / IEC 60332-1-2
- Dimensions (H x L x W): 10mm x 5000mm x 13mm
- Weight: 0.2 kg
Key Features
- Female connector, M12, 2-pin, straight, B-coded
- Cable length 5 m, 2-wire, PUR, halogen-free
- Shielded cable with violet PUR jacket
- High bending radius suitable for flexible use and drag chain operation
- Operating temperature range from -40 °C to +85 °C depending on use
- Enclosure rating IP65 / IP66K / IP67 for robust protection
- Current loading 4 A with rated impulse voltage 1.5 kV
- Data transmission rate up to 0.012 Gbit/s
- Flame retardant cable according to UL 1581 and IEC 60332-1-2
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial electrical connectors and fieldbus systems to ensure proper connection and compliance with safety standards.
Applications
- Drag chain operation in industrial automation
- Zones with oils and lubricants
- Fieldbus and PROFIBUS DP data transmission
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free PUR jacket reduces harmful emissions in case of fire
- Flame retardant materials enhance safety and reduce fire risk
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now

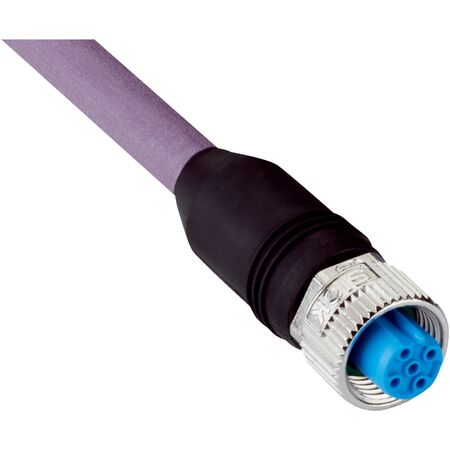

The SICK YF2B22-050PB1XLEAX M12 2-pin female connector cable is available for immediate purchase, ideal for industrial automation and drag chain applications.
