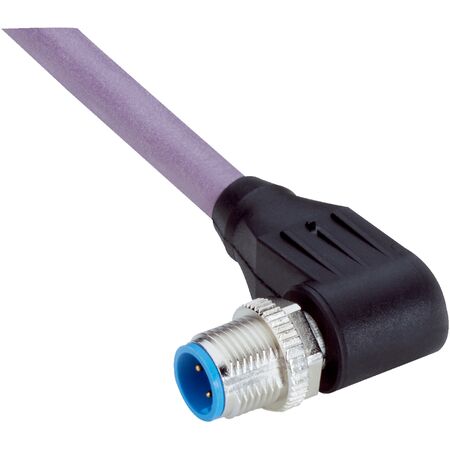

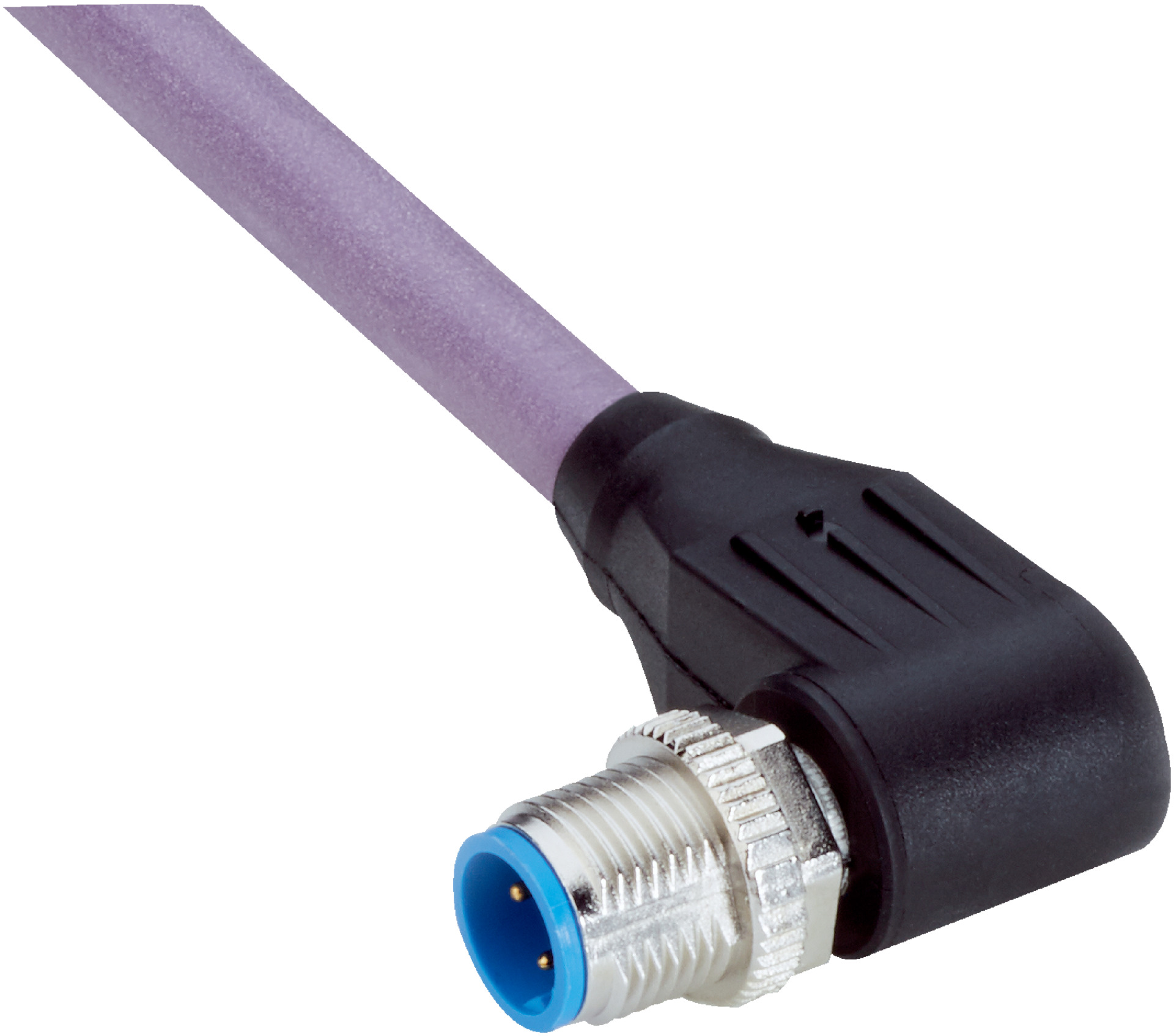

M12 2-Pin Male Connector Cable | 5m Shielded PUR | IP65/IP66K/IP67 Rated | by SICK
The M12 2-pin male connector cable is designed for robust industrial automation applications, featuring a 5m shielded PUR cable with a halogen-free violet jacket. Ideal for drag chain operation, it offers high flexibility and an enclosure rating of IP65/IP66K/IP67, ensuring reliable data transmission in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Male connector, M12, 2-pin, angled, B-coded
- Connection type head B: Flying leads
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Tightening torque: 0.6 Nm
- Cable: 5 m, 2-wire, PUR, halogen-free
- Cable diameter: 7.7 mm
- Conductor cross section: 0.25 mm²
- Shielding: Shielded
- Bending radius: Flexible use > 12 x cable diameter, Stationary position > 7.5 x cable diameter, Drag chain operation > 12 x cable diameter
- Bending cycles: 5,000,000
- Nominal voltage, cable: 300 V AC
- Test voltage, cable: 2,000 V AC
- Reference voltage: 60 V DC
- Rated impulse voltage: 1.5 kV
- Current loading: 4 A
- Traversing speed: 3 m/s
- Travelling distance: 5 m
- Acceleration: ≤ 5 m/s²
- Signal type: Fieldbus, PROFIBUS DP
- Data transmission rate: ≤ 0.012 Gbit/s
- Enclosure rating: IP65 / IP66K / IP67
- Operating temperature: Flexible use –20 °C to +60 °C, Stationary position –40 °C to +80 °C, Drag chain operation –20 °C to +60 °C, Head –25 °C to +85 °C
- Contamination rating: 3
- Insulation resistance: > 100 mΩ
- Overvoltage category: III
- Thermal resistance: Flame retardant acc. to UL 1581 Section 1090, Section 1100 (FT2) / IEC 60332-1-2
- Dimensions (H x L x W): 20mm x 5000mm x 13mm
- Weight: 0.1 kg
Key Features
- Male connector, M12, 2-pin, angled, B-coded
- Shielded PUR cable, halogen-free, violet jacket
- Cable length: 5 m with 2-wire configuration
- High bending radius suitable for flexible and drag chain use
- Operating temperature range from -40 °C to +85 °C depending on use
- Enclosure rating IP65 / IP66K / IP67 for robust protection
- Current loading capacity of 4 A
- Data transmission rate up to 0.012 Gbit/s
- Screw connection locking plug with zinc die-cast nickel-plated nut
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician experienced with industrial connectors and fieldbus systems to ensure proper connection and compliance with safety standards.
Applications
- Drag chain operation in industrial automation
- Zones with oils and lubricants
- Fieldbus and PROFIBUS DP data transmission
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free PUR cable reduces harmful emissions in case of fire
- Durable materials extend product life and reduce waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK YN2B22-050PB1XLEAX M12 2-pin male connector cable is available for immediate purchase, ideal for industrial automation and drag chain applications requiring robust and reliable connectivity.
