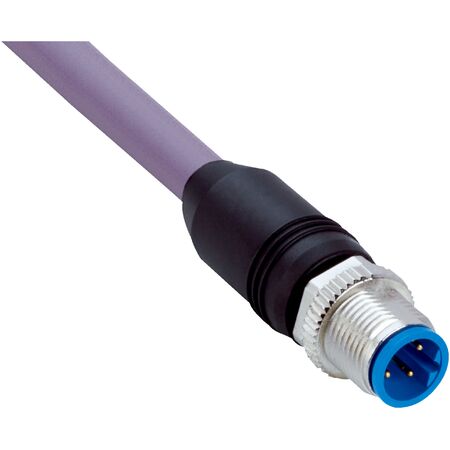

M12 2-Pin Male Connector Cable | Shielded PUR Jacket | IP65/IP66K/IP67 Rated | by SICK
The M12 2-Pin Male Connector Cable is designed for robust industrial automation applications, featuring a shielded PUR halogen-free jacket and high bending cycles up to 5,000,000. With an IP65/IP66K/IP67 enclosure rating, it ensures reliable performance in harsh environments, making it ideal for drag chain operations and PROFIBUS DP data transmission.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Male connector, M12, 2-pin, straight, B-coded
- Connection type head B: Flying leads
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Tightening torque: 0.6 Nm
- Cable length: 5 m, 2-wire, PUR, halogen-free
- Cable diameter: 7.7 mm
- Conductor cross section: 0.25 mm²
- Shielding: Shielded
- Bending cycles: 5,000,000
- Nominal voltage, cable: 300 V AC
- Test voltage, cable: 2,000 V AC
- Rated impulse voltage: 1.5 kV
- Current loading: 4 A
- Traversing speed: 3 m/s
- Travelling distance: 5 m
- Acceleration: ≤ 5 m/s²
- Signal type: Fieldbus, PROFIBUS DP
- Data transmission rate: ≤ 0.012 Gbit/s
- Enclosure rating: IP65 / IP66K / IP67
- Operating temperature: Flexible use –20 °C to +60 °C, Stationary position –40 °C to +80 °C, Drag chain operation –20 °C to +60 °C, Head –25 °C to +85 °C
- Contamination rating: 3
- Insulation resistance: > 100 mΩ
- Overvoltage category: III
- Thermal resistance: Flame retardant acc. to UL 1581 Section 1090, Section 1100 (FT2) / IEC 60332-1-2
- Dimensions (H x L x W): 20mm x 100mm x 13mm
- Weight: 0.1 kg
Key Features
- Male connector, M12, 2-pin, straight, B-coded
- Shielded cable with PUR halogen-free jacket
- High bending cycles up to 5,000,000
- Enclosure rating IP65 / IP66K / IP67 for robust protection
- Operating temperature range from -40 °C to +85 °C depending on use
- Screw connection locking plug with zinc die-cast nickel-plated nut
- Supports data transmission rate up to 0.012 Gbit/s
- UL File No. E335179 certified
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician experienced with industrial connectors and PROFIBUS DP systems to ensure proper connection and compliance with safety standards.
Applications
- Drag chain operation in industrial automation
- Zones with oils and lubricants
- Fieldbus and PROFIBUS DP data transmission environments
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free PUR cable jacket reduces environmental impact during disposal
- Flame retardant materials enhance safety and reduce fire hazards
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK YM2B22-050PB1XLEAX connector cable is available for immediate purchase, ideal for industrial automation and drag chain applications requiring robust and reliable connectivity.
