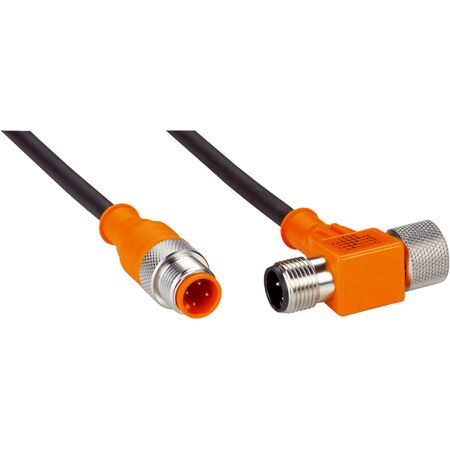

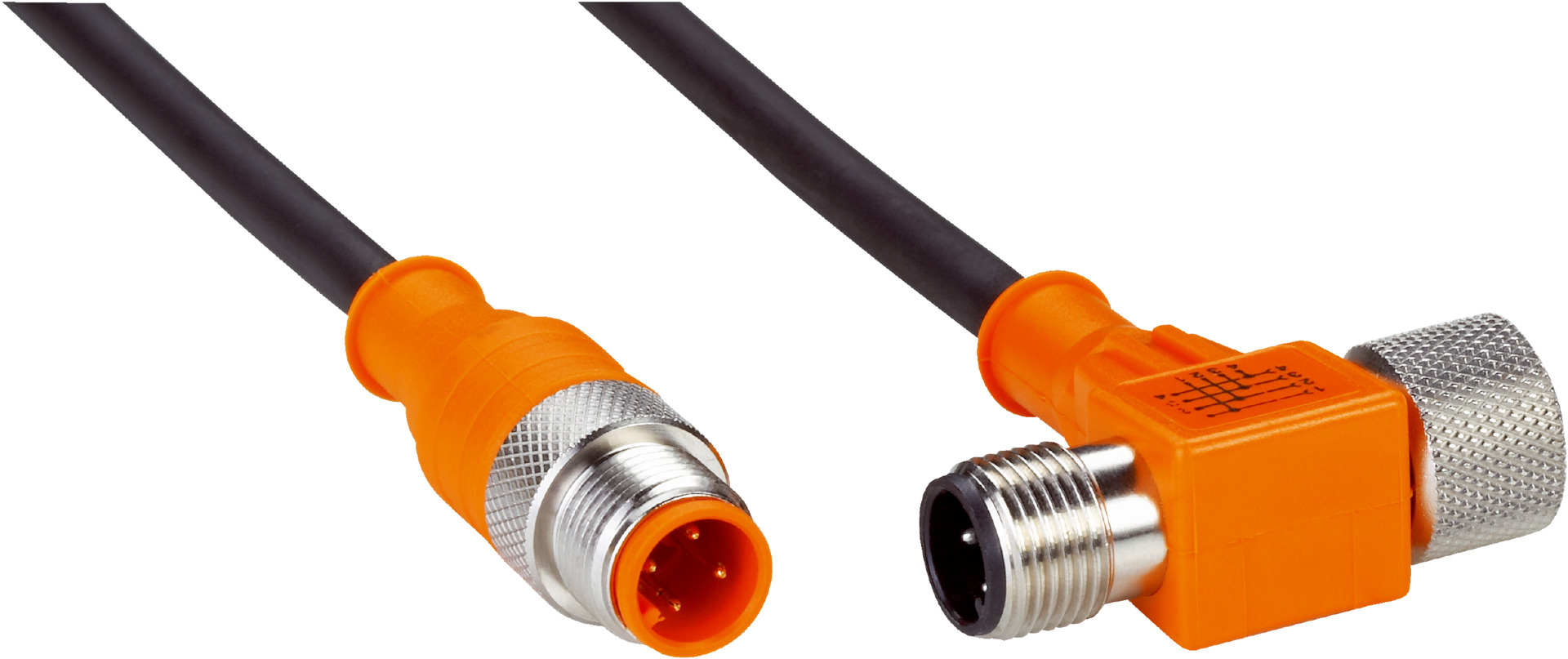

M12 4-Pin Cable Assembly | IP67 Rated | 0.3m Halogen-Free PUR Cable | Durable TPU Housing | by SICK
The M12 4-pin cable assembly is designed for reliable industrial automation sensor connections, featuring male and female connectors with a 0.3m halogen-free PUR cable. With an IP67 rating for dust and water protection, this durable assembly is perfect for harsh environments, ensuring optimal performance in control systems and signal interrogation applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Male connector, M12, 4-pin, A-coded
- Connection type head B: Female connector, M12, 4-pin, A-coded
- Connection type head C: Male connector, M12, 4-pin, A-coded
- Connecting cable length: 0.3 m
- Cable material: PUR, halogen-free
- Housing material: TPU
- Connector material head A and C: TPU
- Housing color: Orange
- Locking nut material: Zinc die-cast, nickel-plated
- Shielding: Unshielded
- Reference voltage: ≤ 60 V DC, ≤ 300 V DC
- Rated impulse voltage: 2 kV
- Current loading: 4 A
- Enclosure rating: IP67
- Operating temperature: -25 °C to +80 °C
- Dimensions (H x L x W): 10mm x 300mm x 10mm
- Weight: 0.1 kg
Key Features
- Male and female M12, 4-pin, A-coded connectors
- 0.3 m PUR halogen-free cable
- TPU housing and connector material for durability
- Zinc die-cast, nickel-plated locking nut
- Unshielded design
- IP67 rated enclosure for dust and water protection
- Operating temperature range from -25 °C to +80 °C
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with electrical standards.
Applications
- Industrial automation sensor connections
- Signal interrogation and logic interrupt in control systems
- Harsh environment electrical connections requiring IP67 protection
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free PUR cable reduces harmful emissions in case of fire
- Durable materials extend product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy.
Available Now
The SICK DSL-1104-T0M3 M12 4-pin cable assembly is available now for immediate purchase. Ideal for industrial automation and sensor connection applications.
