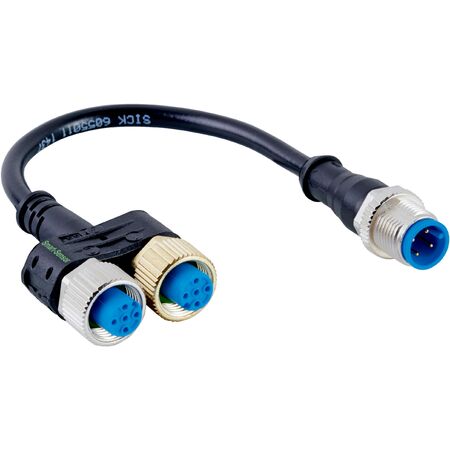

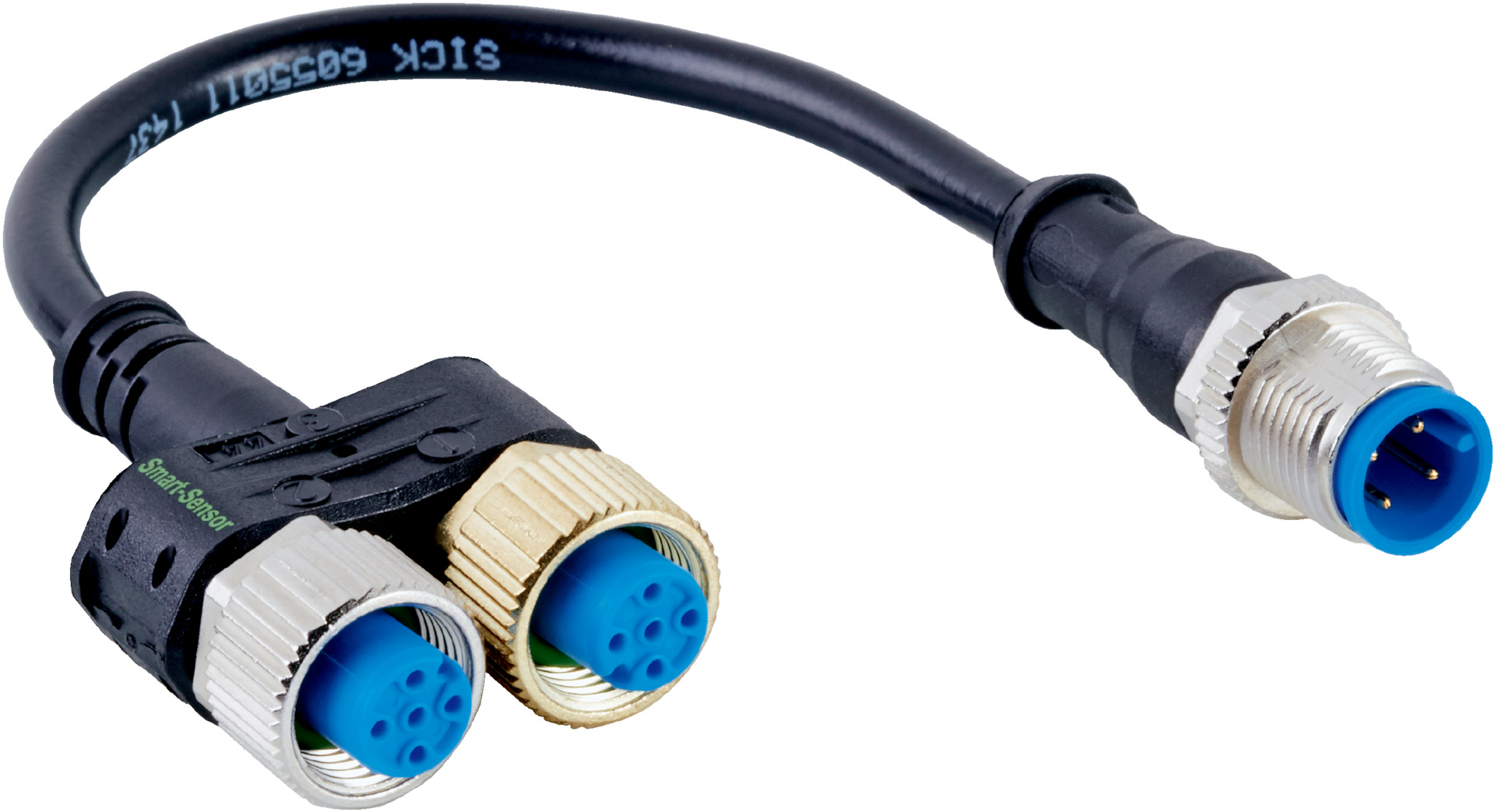

M12 4-Pin Connector Cable | Male & Female Connectors | IP67 Rated | 0.11m Length | by SICK
The M12 4-pin connector cable is designed for reliable industrial automation and sensor connectivity. Featuring male and female A-coded connectors, this unshielded PVC cable ensures optimal performance in harsh environments with an IP67 rating. Ideal for machine building and factory automation, it operates effectively within a temperature range of -25°C to +80°C, making it a durable choice for various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Male connector, M12, 4-pin, A-coded
- Connection type head B: Female connector, M12, 4-pin, A-coded
- Connection type head C: Female connector, M12, 4-pin, A-coded
- Connecting cable length: 0.11 m
- Cable material: PVC
- Conductor cross section: 0.34 mm²
- Locking nut material: Zinc die-cast, nickel-plated
- Shielding: Unshielded
- Reference voltage: ≤ 30 V DC
- Current loading: 4 A
- Contamination rating: 3
- Operating temperature: -25 °C to +80 °C
- Enclosure rating: IP67
- Dimensions (H x L x W): 10mm x 110mm x 13mm
- Weight: 0.1 kg
Key Features
- Male and female M12, 4-pin, A-coded connectors
- PVC connecting cable with 0.11 m length
- Unshielded cable and connectors
- Zinc die-cast, nickel-plated locking nut
- IP67 rated enclosure for dust and water protection
- Operating temperature range from -25°C to +80°C
- Current loading capacity of 4 A
- Contamination rating of 3
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper connection and compliance with electrical standards.
Applications
- Industrial automation and sensor connectivity
- Machine building and factory automation
- Signal transmission in harsh environments
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials reduce replacement frequency and waste
- IP67 rating ensures long service life in harsh environments
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's warranty policy for details.
Available Now
The SICK SYL-1204-G0M11-X1 M12 4-pin connector cable is available for immediate purchase, ideal for industrial automation and sensor connectivity applications.
