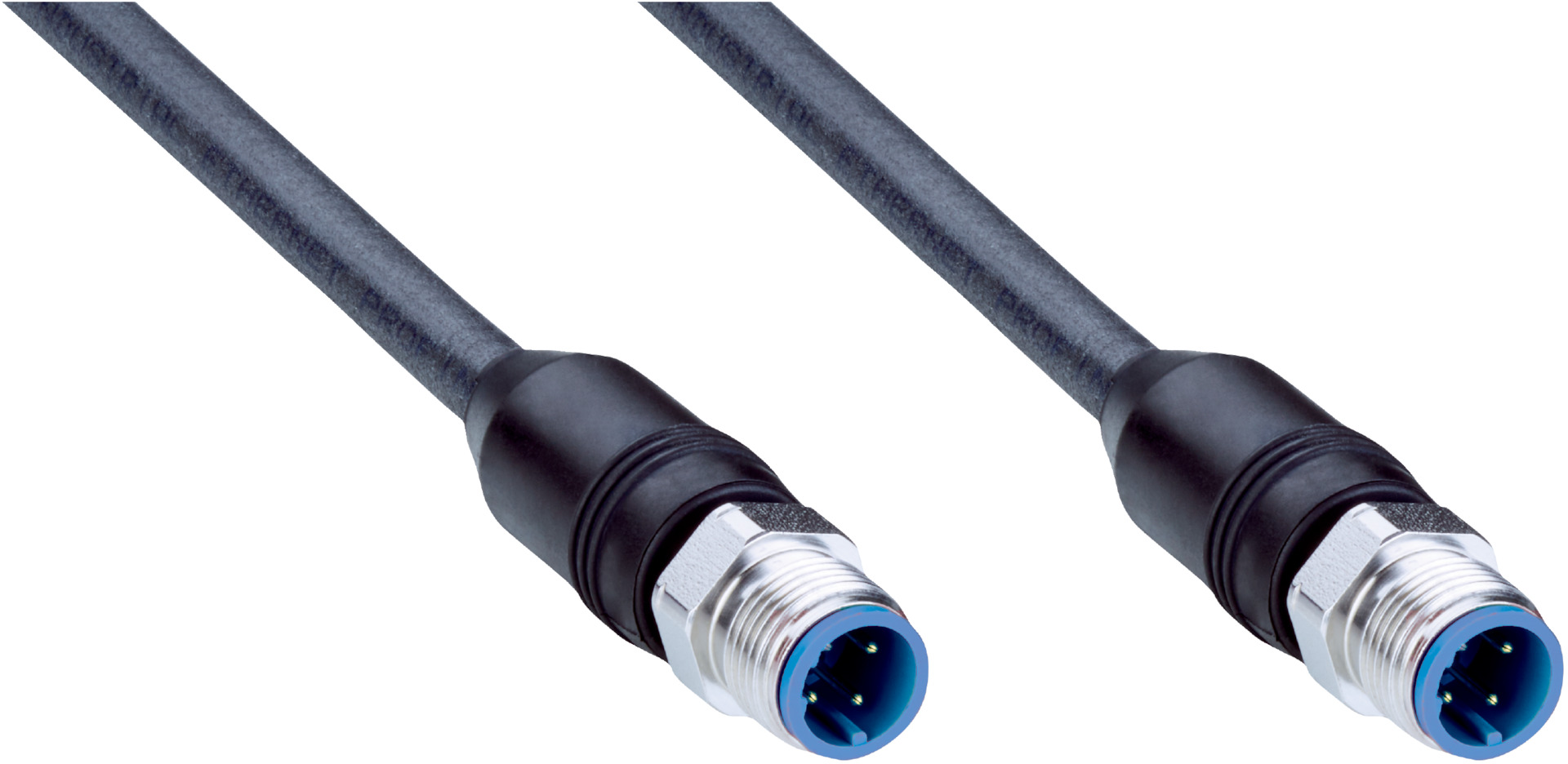

M12 4-Pin Ethernet Cable | Halogen-Free PUR | IP65/IP66K/IP67 Rated | by SICK
The M12 4-Pin Ethernet Cable is designed for robust industrial applications, featuring male connectors on both ends and a halogen-free PUR construction. With an IP65/IP66K/IP67 rating, this cable is perfect for environments exposed to oils and seawater, ensuring reliable data transmission for Ethernet and PROFINET systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Male connector, M12, 4-pin, straight, D-coded
- Connection type head B: Male connector, M12, 4-pin, straight, D-coded
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Stainless steel (V4A/1.4404)
- Tightening torque: 0.6 Nm
- Cable length: 1 m
- Cable type: 4-wire, PUR, halogen-free
- Cable diameter: 6.7 mm
- Shielding: Shielded
- Bending radius: Flexible use > 12 x cable diameter, Stationary position > 5 x cable diameter, Drag chain operation > 12 x cable diameter
- Operating temperature: Flexible use -30 °C to +70 °C, Stationary position -40 °C to +80 °C, Drag chain operation -30 °C to +70 °C, Head -25 °C to +85 °C
- Nominal voltage: 300 V AC
- Test voltage: 2000 V AC
- Rated impulse voltage: 1.5 kV
- Current loading: 4 A
- Signal type: Ethernet, PROFINET
- Transmission characteristics: CAT5e
- Data transmission rate: ≤ 0.1 Gbit/s
- Enclosure rating: IP65 / IP66K / IP67
- Contamination rating: 3
- Insulation resistance: > 100 MΩ
- Overvoltage category: III
- Specific insulation resistance: < 30 mΩ
- Dimensions (H x L x W): 6.7mm x 1000mm x 13mm
- Weight: 0.1 kg
Key Features
- Male M12, 4-pin, straight, D-coded connectors on both ends
- Screw connection locking plug with stainless steel locking nut
- Cable made of halogen-free PUR material, black color
- Shielded cable with 6.7 mm diameter and 1 m length
- High bending radius suitable for flexible use and drag chain operation
- Operating temperature range from -40 °C to +85 °C depending on use
- Rated for 4 A current loading and 300 V AC nominal voltage
- Supports Ethernet PROFINET with CAT5e transmission characteristics
- Enclosure rating IP65 / IP66K / IP67 for robust protection
- UL File No. E513908 and multiple international certifications
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation and control systems
- Ethernet and PROFINET data transmission
- Outdoor zones with exposure to oils, lubricants, and seawater
- Drag chain operation environments requiring flexible cables
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
Environmental Benefits
- Halogen-free cable material reduces harmful emissions in case of fire
- Durable construction extends product life and reduces waste
- Seawater and oil resistant for use in harsh environments, minimizing replacements
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now

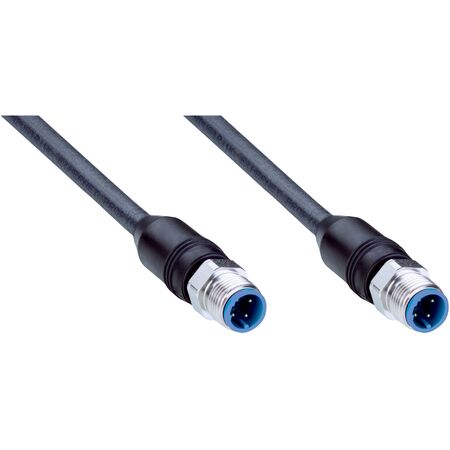

The SICK YM2D34-010PN4M2D34 M12 4-pin male connector cable is available for immediate purchase, ideal for industrial Ethernet and PROFINET applications in harsh environments.
