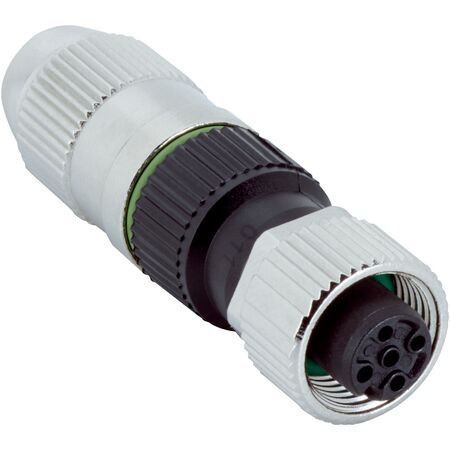

M12 4-Pin Female Connector Cable | IDC Quick Connection | IP67 Rated | by SICK
The M12 4-pin female connector cable is designed for reliable sensor and actuator applications, featuring an IDC quick connection and a robust IP67 rating for dust and water protection. Built with durable TPU material and a zinc die-cast locking nut, this cable is perfect for use in harsh environments, ensuring optimal performance in zones with oils and lubricants.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: M12 4-Pin Female Connector Cable | IDC Quick Connection | IP67 Rated | by SICK
Brand: SICK
SKU: 2109293
Alternatively Known As: M12 4-pin female connector cable, Sensor actuator cable M12, IP67 M12 connector
Technical Specifications
- Connection type head A: Female connector, M12, 4-pin, straight, A-coded
- Connection type: IDC quick connection
- Locking plug connector: Screw connection
- Connector material: TPU
- Connector color: Black
- Locking nut material: Zinc die-cast, nickel-plated
- Seal material: FKM / PUR
- Tightening torque: 0.6 Nm
- Width across flats: 13 mm
- Permitted cross-section: 0.25 mm² to 0.5 mm²
- Reference voltage: 32 V DC
- Rated impulse voltage: 0.8 kV
- Current loading: 4 A
- Signal type: Sensor/actuator cable
- Application: Zones with oils and lubricants
- Authorizations: CE
- Enclosure rating: IP67
- Operating temperature: -25 °C to +85 °C
- Contamination rating: 3
- Insulation resistance: 100 MΩ
- Overvoltage category: III
- Specific insulation resistance: 30 mΩ
- Dimensions (H x L x W): 20mm x 100mm x 13mm
- Weight: 0.1 kg
Key Features
- Female connector, M12, 4-pin, straight, A-coded
- IDC quick connection with screw locking plug connector
- Connector material made of TPU with black color
- Locking nut made of zinc die-cast, nickel-plated
- Seal material FKM / PUR ensuring durability
- IP67 rated enclosure for dust and water protection
- Operating temperature range from -25 °C to +85 °C
- Contamination rating 3 for harsh environments
- Current loading capacity of 4 A
- Rated impulse voltage of 0.8 kV
- Overvoltage category III
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure proper connection and compliance with safety standards.
Applications
- Sensor and actuator cable applications
- Suitable for zones with oils and lubricants
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials and sealing reduce waste and replacement frequency
- High insulation resistance improves energy efficiency and safety
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK YF12U14-2550K4051A M12 4-pin female connector cable is available for immediate purchase, ideal for industrial sensor and actuator applications in harsh environments.
