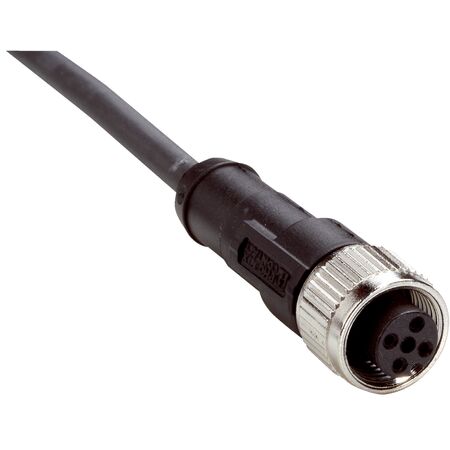

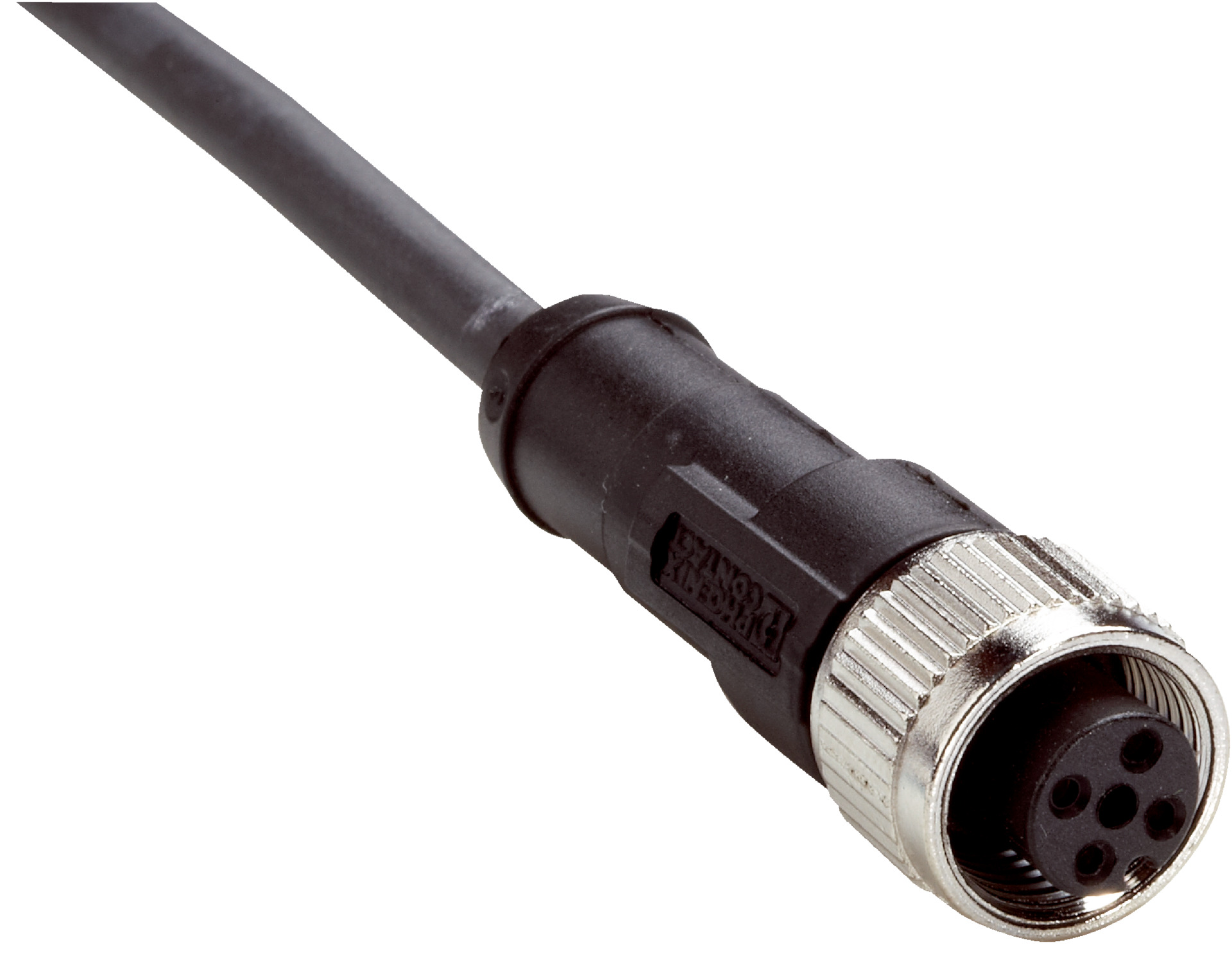

M12 4-Pin Industrial Cable | 10m Length | Halogen-Free PUR | IP65/IP67/IP68 Rated | by SICK
The M12 4-Pin Industrial Cable is designed for drag chain operation in industrial automation, featuring a 10m length and halogen-free PUR construction. With an IP65/IP67/IP68 rating, this cable is perfect for harsh environments, ensuring durability and flexibility for machine wiring applications. Its zinc die-cast, nickel-plated locking nut and high bending radius make it ideal for both flexible and stationary use.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Female connector, M12, 4-pin, straight
- Connection type head B: Flying leads
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Tightening torque: 0.4 Nm
- Cable length: 10 m
- Cable type: 4-wire, PUR, halogen-free
- Cable diameter: 4.7 mm
- Conductor cross section: 0.34 mm²
- Shielding: Unshielded
- Bending radius flexible use: > 10 x cable diameter
- Bending radius stationary position: > 5 x cable diameter
- Operating temperature flexible use: -25 °C to +80 °C
- Operating temperature stationary position: -40 °C to +80 °C
- Operating temperature head: -25 °C to +90 °C
- Bending cycles: ≥ 4,000,000
- Reference voltage: ≤ 250 V
- Current loading: 4 A
- Traversing speed: 3 m/s
- Travelling distance: 10 m
- Acceleration: ≤ 10 m/s²
- Application: Drag chain operation
- Authorizations: UL certified (File No. CYJV.E335179)
- Enclosure rating: IP65/IP67/IP68
- Dimensions (H x L x W): 10mm x 10000mm x 10mm
- Weight: 0.1 kg
Key Features
- Female connector, M12, 4-pin, straight
- 10 m length, 4-wire PUR halogen-free cable
- Zinc die-cast, nickel-plated locking nut
- High bending radius for flexible use and stationary position
- Operating temperature range from -40 °C to +90 °C
- Unshielded cable with 0.34 mm² conductor cross section
- Current loading capacity of 4 A
- UL certified with file number CYJV.E335179
- Enclosure rating IP65/IP67/IP68 for harsh environments
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician experienced with industrial cabling to ensure proper connection and compliance with safety standards.
Applications
- Drag chain operation in industrial automation
- Machine wiring requiring flexible and durable cable connections
- Environments requiring IP65/IP67/IP68 rated cables
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free cable reduces toxic emissions in case of fire
- Durable materials extend product life and reduce waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK YF2Z14-100XXXXLEAX industrial cable is available for immediate purchase, ideal for industrial automation and drag chain applications requiring durable and flexible cabling.
