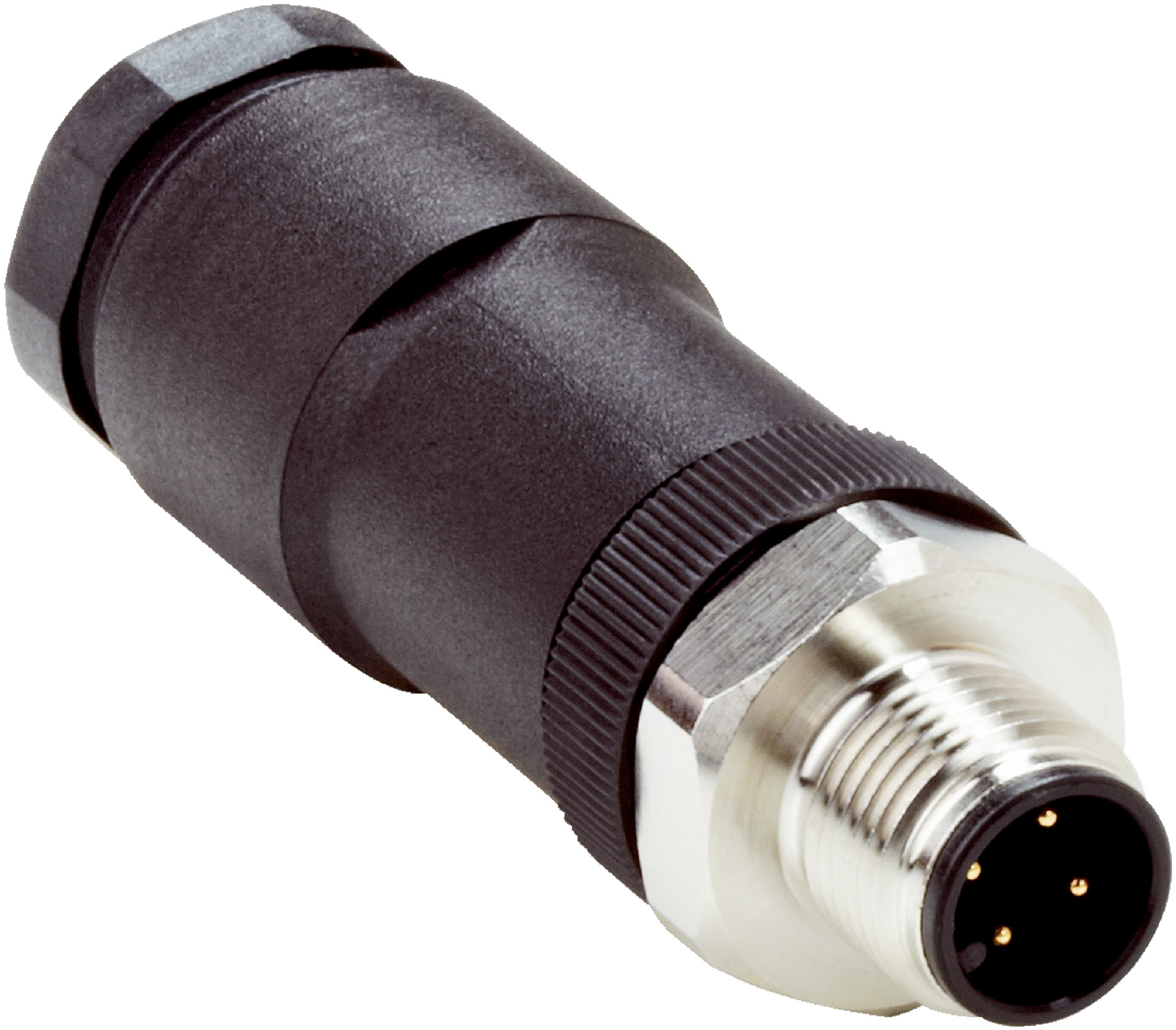

M12 4-Pin Male Connector Cable | IP67/IP69K Rated | Durable PBT Material | by SICK
The M12 4-Pin Male Connector Cable is designed for hygienic and washdown zones, featuring a robust IP67/IP69K rating for dust and water protection. Built with durable PBT material and stainless steel locking nut, it ensures reliable electrical connections in industrial applications. With screw-type terminals and a current loading capacity of 4 A, this connector is perfect for environments requiring high durability and safety.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: M12 4-Pin Male Connector Cable | IP67/IP69K Rated | Durable PBT Material | by SICK
Brand: SICK
SKU: 6028360
Alternatively Known As: M12 4-pin male connector cable, SICK M12 connector, Industrial M12 cable, IP67 M12 connector
Technical Specifications
- Connection type head A: Male connector, M12, 4-pin, straight, A-coded
- Connection type: Screw-type terminals
- Connector material: PBT
- Connector color: Black
- Locking nut material: Stainless steel (V4A/1.4404)
- Shielding: Unshielded
- Permitted cross-section: ≤ 0.75 mm²
- Reference voltage: ≤ 250 V
- Current loading: 4 A
- Application: Hygienic and washdown zones
- Note: For 2 cable connections
- Enclosure rating: IP67/IP69K
- Operating temperature: -25 °C to +90 °C
- Dimensions (H x L x W): 20mm x 60mm x 20mm
- Weight: 0.1 kg
Key Features
- Male connector, M12, 4-pin, straight, A-coded
- Screw-type terminals for secure connection
- Connector material: PBT with black color
- Locking nut made of stainless steel (V4A/1.4404)
- Unshielded design
- Permitted cross-section up to 0.75 mm²
- Current loading capacity of 4 A
- Enclosure rating IP67/IP69K for dust and water protection
- Operating temperature range from -25 °C to +90 °C
- Suitable for 2 cable connections
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure compliance with electrical safety standards and proper connection.
Applications
- Hygienic and washdown zones requiring reliable electrical connections
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials and IP69K rating ensure long product life and reduced waste
- RoHS compliant, reducing hazardous substances in the environment
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for specific warranty details.
Available Now

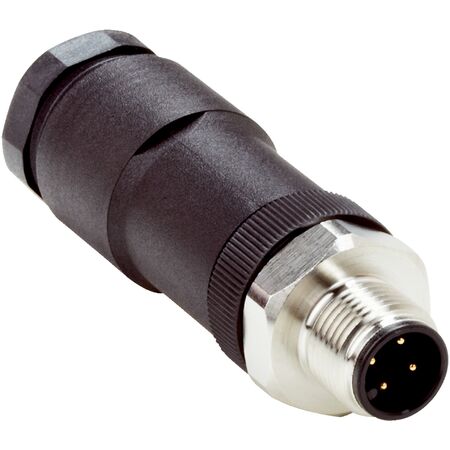

The SICK STE-1204-TN M12 4-pin male connector cable is available for immediate purchase, ideal for industrial and hygienic zone applications requiring durable and reliable connections.
