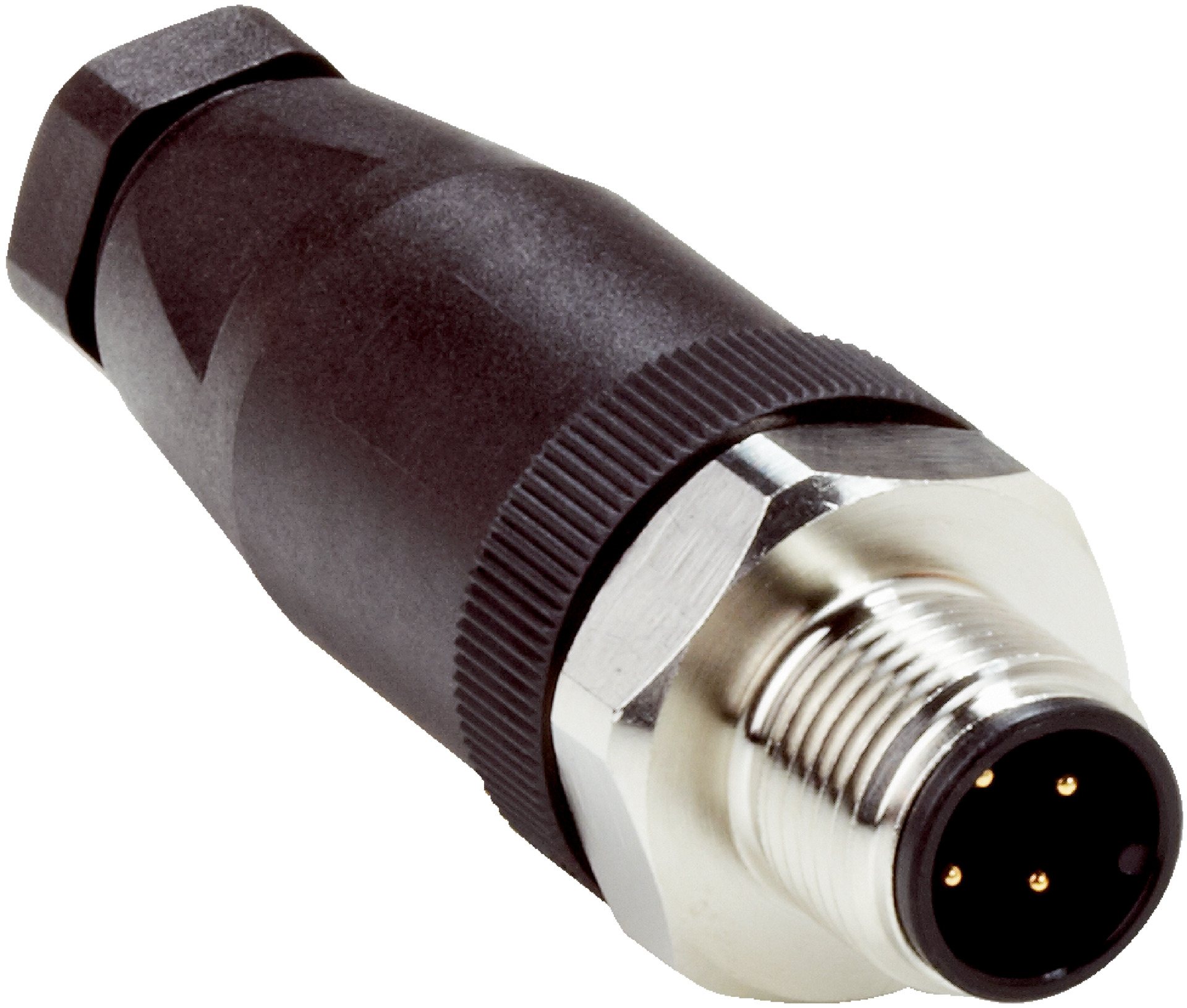

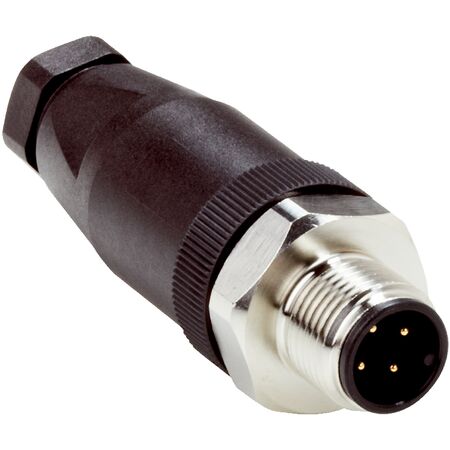

M12 4-Pin Male Connector | IP67/IP69K Rated | Screw-Type Terminals | by SICK
The M12 4-Pin Male Connector is designed for secure electrical connections in industrial automation and hygienic zones. With an IP67/IP69K rating, it offers excellent dust and water protection, while the screw-type terminals ensure reliable wiring. Built for durability, this connector operates in extreme temperatures from -40 °C to +85 °C, making it ideal for demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: M12 4-Pin Male Connector | IP67/IP69K Rated | Screw-Type Terminals | by SICK
Brand: SICK
SKU: 6028359
Alternatively Known As: M12 4-pin male connector, M12 screw terminal connector, Industrial M12 connector, IP67 M12 connector
Technical Specifications
- Connection type head A: Male connector, M12, 4-pin, straight, A-coded
- Connection type: Screw-type terminals
- Connector material: PA
- Locking nut material: Stainless steel (V4A/1.4404)
- Tightening torque: 0.6 Nm
- Shielding: Unshielded
- Permitted cross-section: ≤ 0.75 mm²
- Reference voltage: ≤ 250 V
- Current loading: 4 A
- Enclosure rating: IP67/IP69K
- Operating temperature: -40 °C to +85 °C
- UL File No.: E335179
- Dimensions (H x L x W): 15mm x 50mm x 15mm
- Weight: 0.1 kg
Key Features
- Male connector, M12, 4-pin, straight, A-coded
- Screw-type terminals for secure wiring
- Connector material: PA with black color
- Locking nut made of stainless steel (V4A/1.4404)
- Tightening torque of 0.6 Nm
- Unshielded design
- Permitted cross-section up to 0.75 mm²
- Current loading capacity of 4 A
- Enclosure rating IP67/IP69K for dust and water protection
- Operating temperature range from -40 °C to +85 °C
- UL certified (UL File No. E335179)
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with IP ratings and electrical safety standards.
Applications
- Suitable for hygienic and washdown zones in industrial environments
- Used for secure electrical connections in automation and sensor systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials and IP69K rating ensure long product life and reduced waste
- Complies with China RoHS for restricted hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy.
Available Now
The SICK STE-1204-GN connector is available for immediate purchase, ideal for industrial automation and hygienic zone applications.
