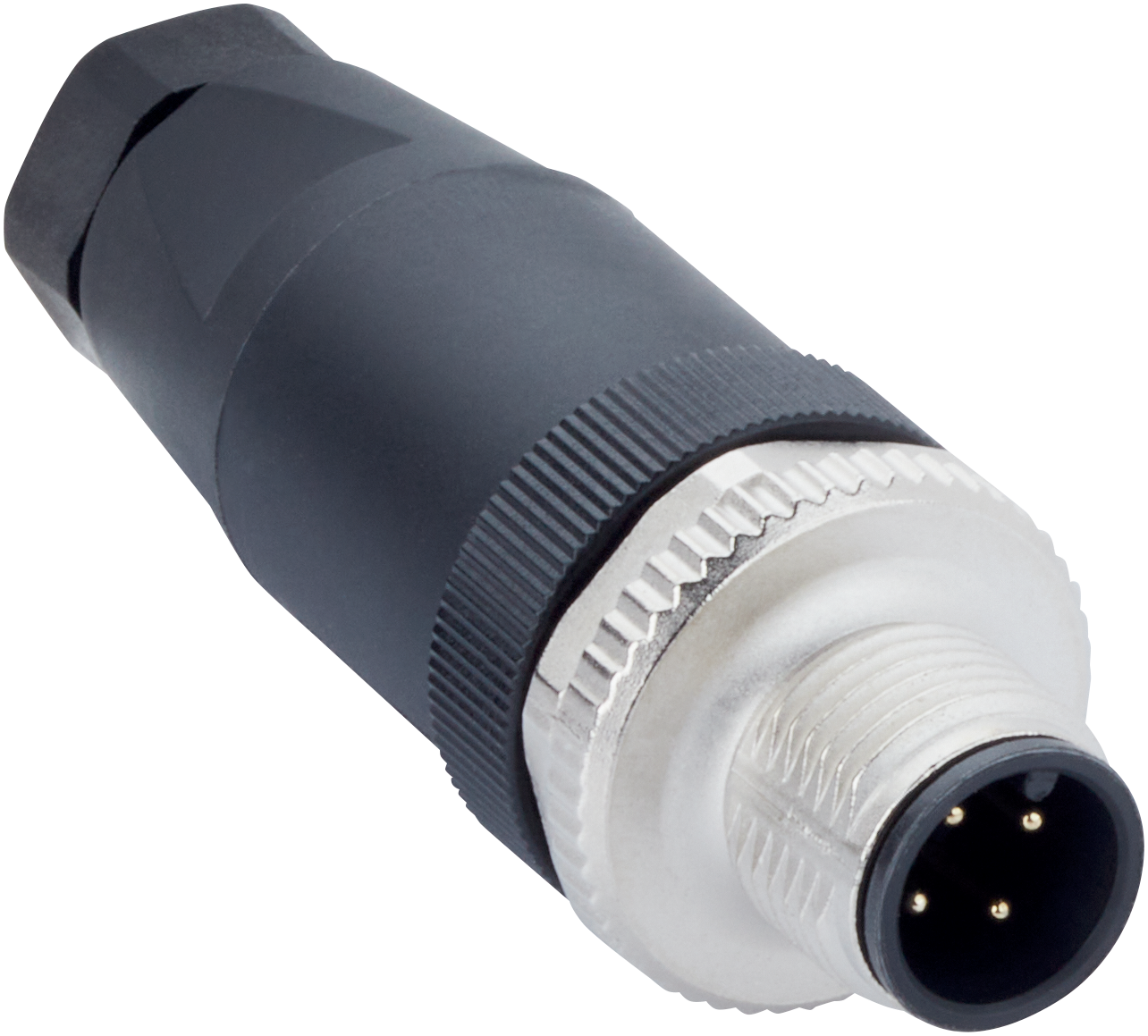

M12 4-Pin Male Connector | IP67 Rated | Screw-Type Terminals | Black | by SICK
The M12 4-Pin Male Connector is designed for reliable industrial automation and sensor connectivity. With an IP67 rating for dust and water protection, this connector features screw-type terminals for secure wiring and operates within a temperature range of -40 °C to +85 °C. Ideal for machine building and factory automation, it ensures optimal performance in harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: M12 4-pin male connector, M12 sensor connector, Industrial M12 connector, SICK M12 connector
Technical Specifications
- Connection type head A: Male connector, M12, 4-pin, straight, A-coded
- Connection type: Screw-type terminals
- Connector material: PA
- Connector color: Black
- Locking nut material: CuZn
- Tightening torque: 0.6 Nm
- Shielding: Unshielded
- Permitted cable diameter: 4 mm to 6 mm
- Permitted cross-section: ≤ 0.75 mm²
- Reference voltage: ≤ 250 V
- Current loading: ≤ 4 A
- Enclosure rating: IP67
- Operating temperature: -40 °C to +85 °C
- Dimensions (H x L x W): 20mm x 50mm x 20mm
- Weight: 0.1 kg
Key Features
- Male connector, M12, 4-pin, straight, A-coded
- Screw-type terminals for secure wiring
- Connector material: PA with black color
- Locking nut made of CuZn with 0.6 Nm tightening torque
- Unshielded design
- Permitted cable diameter: 4 mm to 6 mm
- Permitted cross-section: ≤ 0.75 mm²
- Current loading up to 4 A
- Enclosure rating IP67 for dust and water protection
- Operating temperature range from -40 °C to +85 °C
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper connection and compliance with electrical standards.
Applications
- Industrial automation and sensor connectivity
- Machine building and factory automation
- Signal transmission in harsh environments
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable IP67 rated design reduces replacement frequency and waste
- Complies with China RoHS for restricted hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy.
Available Now

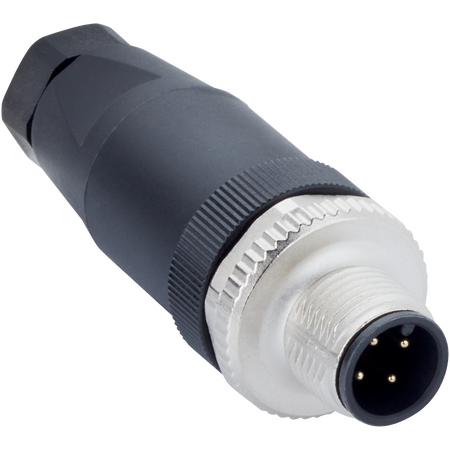

The SICK STE-1204-G M12 4-pin male connector is available for immediate purchase, ideal for industrial automation and sensor connectivity applications.
