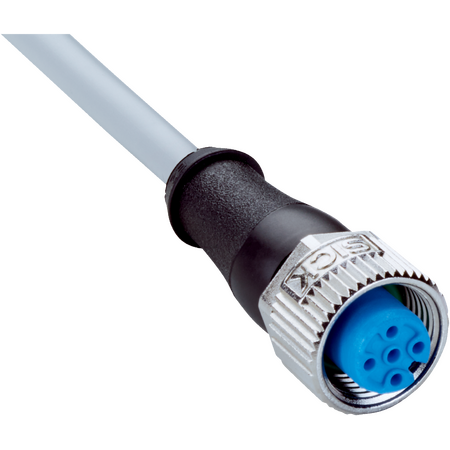

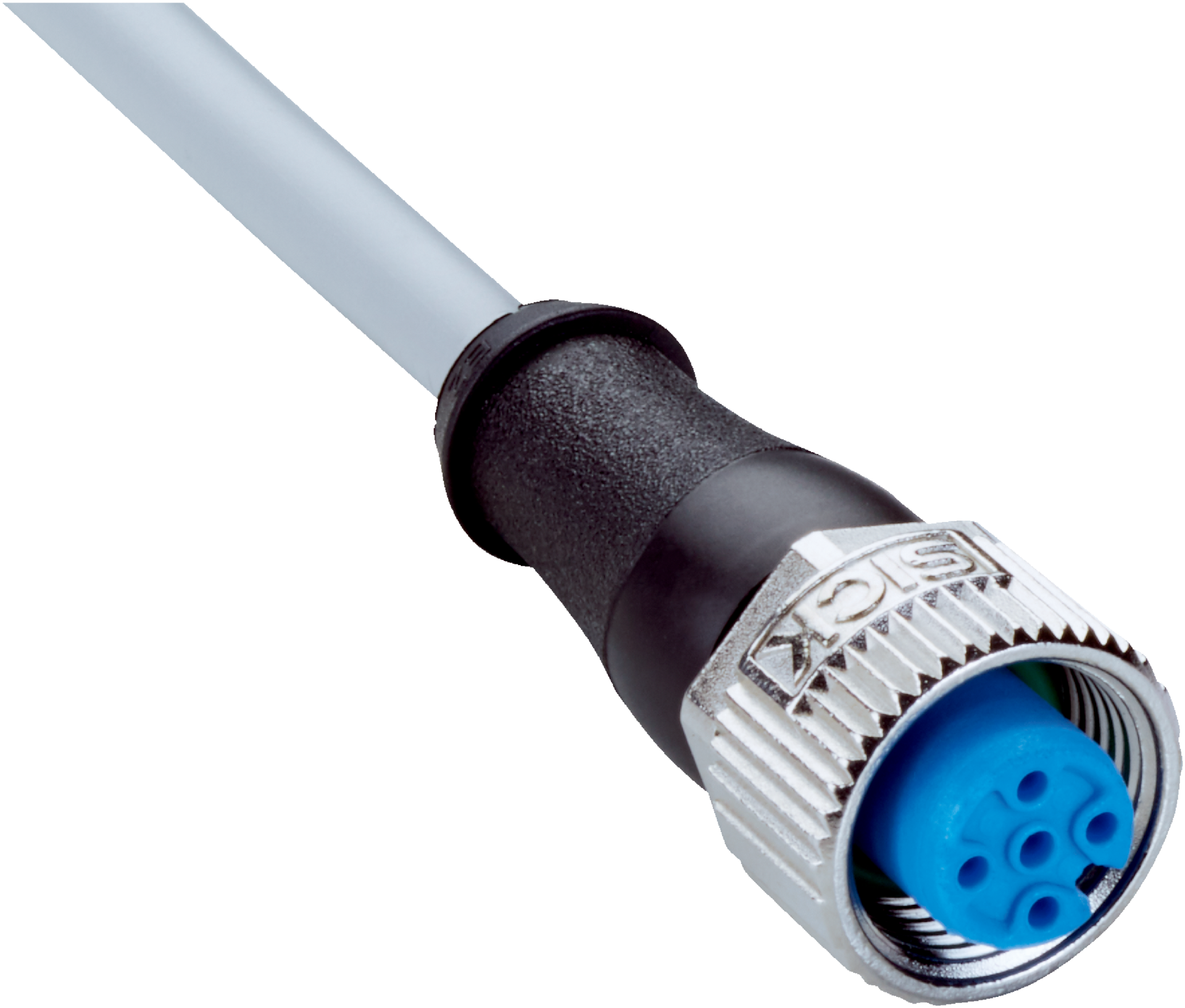

M12 4-Pin Sensor/Actuator Cable | 20m Length | PVC Jacket | IP65/IP66K/IP67 Rated | by SICK
The M12 4-Pin Sensor/Actuator Cable is designed for reliable connections in industrial environments, featuring a durable PVC jacket and a 20m length. With an IP65/IP66K/IP67 rating, it's perfect for sensor and actuator applications in uncontaminated and chemically exposed zones, ensuring safety and compliance with AS/NZS 3000 standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Sensor cable M12 4-pin, Actuator cable PVC 4x0.34, M12 female connector cable, Industrial sensor cable 20m
Technical Specifications
- Connection type head A: Female connector, M12, 4-pin, straight, A-coded
- Connection type head B: Flying leads
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Seal material: FKM
- Tightening torque: 0.6 Nm
- Cable length: 20 m
- Cable type: 4-wire, PVC jacket
- Jacket color: Gray
- Cable diameter: 5 mm
- Conductor cross section: 0.34 mm²
- Shielding: Unshielded
- Bending radius flexible use: > 10 x cable diameter
- Bending radius stationary position: > 5 x cable diameter
- Operating temperature flexible use: -5 °C to +80 °C
- Operating temperature stationary position: -30 °C to +80 °C
- Operating temperature head: -25 °C to +85 °C
- Nominal voltage cable: 300 V AC
- Test voltage cable: 2000 V AC
- Rated impulse voltage: 2.5 kV
- Current loading: 4 A
- Signal type: Sensor/actuator cable
- Insulation resistance: 100 MΩ
- Overvoltage category: III
- Specific insulation resistance: 30 mΩ
- Thermal resistance piping: Flame retardant UL 1581 VW1 / CSA FT1
- Dimensions (H x L x W): 5mm x 20000mm x 13mm
- Weight: 0.2 kg
Key Features
- Female connector M12, 4-pin, straight, A-coded
- Screw connection locking plug
- TPU connector material with zinc die-cast nickel-plated locking nut
- PVC jacket with gray color
- Unshielded 4-wire cable with 0.34 mm² conductor cross section
- IP65 / IP66K / IP67 enclosure rating
- Flame retardant according to UL 1581 VW1 / CSA FT1
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper connection and compliance with electrical standards.
Applications
- Sensor and actuator connections in uncontaminated zones
- Use in zones with chemical exposure
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable PVC jacket reduces need for frequent replacements
- Flame retardant properties enhance safety and reduce fire risk
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK YF2A14-200VB3XLEAX sensor/actuator cable is available for immediate purchase, ideal for industrial sensor and actuator connections in uncontaminated and chemical zones.
