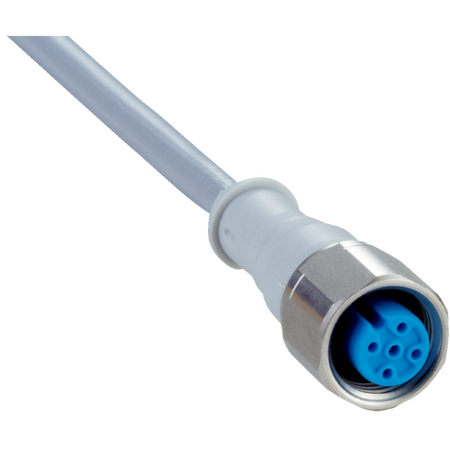

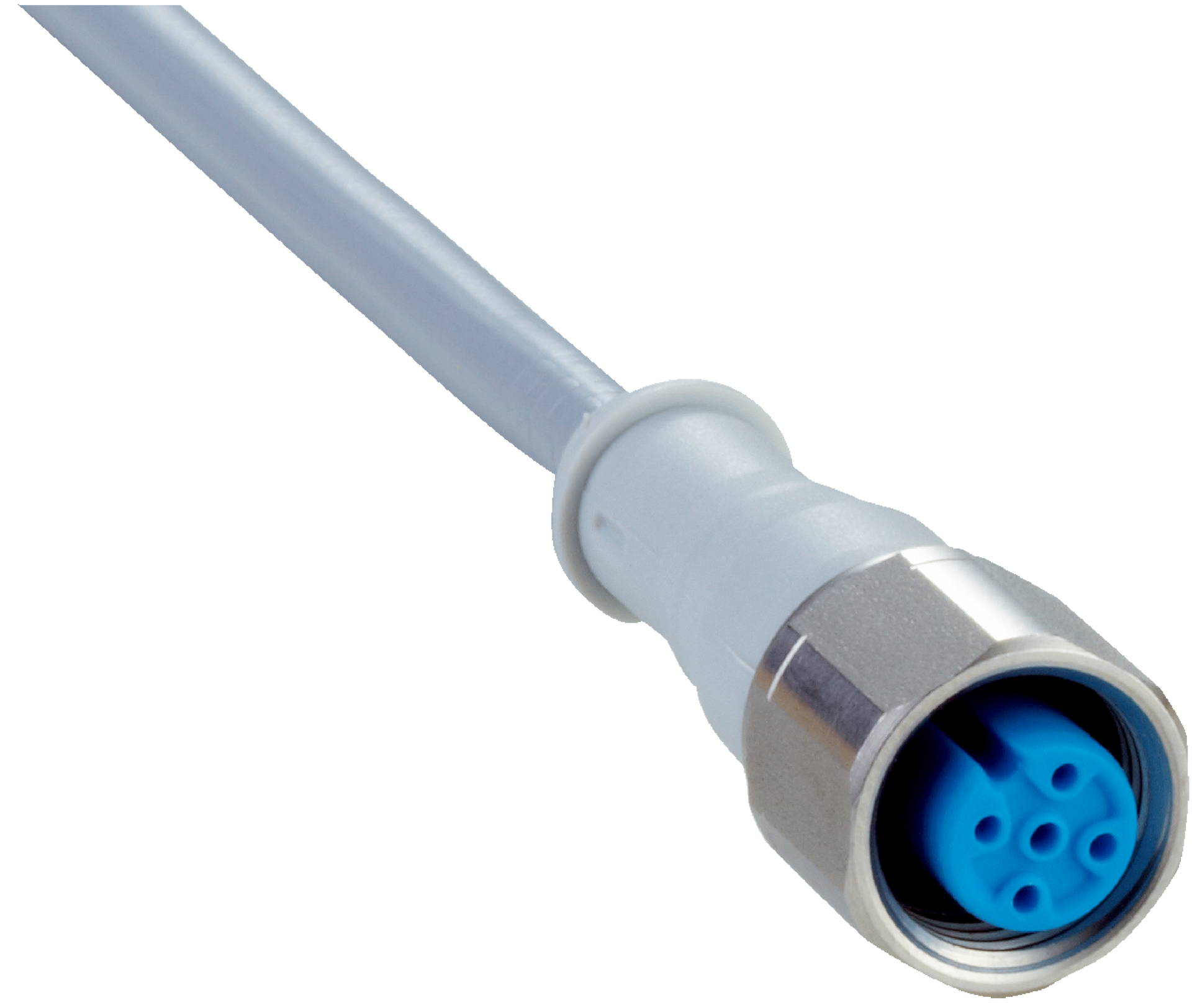

M12 4-Pin Sensor Cable | 5m Length | PUR Material | IP65/IP67/IP69K Rated | by SICK
The M12 4-Pin Sensor Cable is designed for reliable sensor and actuator connections in industrial automation. With a 5m length and made from durable PUR material, it withstands operating temperatures from -5 °C to +80 °C. Ideal for hygienic and washdown zones, this unshielded cable features an IP65/IP67/IP69K enclosure rating, ensuring protection against dust and water ingress.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: M12 4-pin sensor cable, actuator cable 5m, female M12 connector cable, industrial sensor cable
Technical Specifications
- Connection type head A: Female connector, M12, 4-pin, straight
- Connection type head B: Flying leads
- Connector material: PUR
- Locking nut material: Stainless steel (V4A/1.4404)
- Tightening torque: 0.6 Nm
- Cable length: 5 m, 4-wire, PVC jacket
- Cable diameter: 5 mm
- Conductor cross section: 0.34 mm²
- Shielding: Unshielded
- Rated impulse voltage: 2.5 kV
- Current loading: 4 A
- Signal type: Sensor/actuator cable
- Operating temperature: Flexible use –5 °C to +80 °C, Stationary position –30 °C to +80 °C, Head –25 °C to +85 °C
- Enclosure rating: IP65 / IP67 / IP69K
- Dimensions (H x L x W): 5mm x 5000mm x 14mm
- Weight: 0.1 kg
Key Features
- Female connector, M12, 4-pin, straight
- 5 m length, 4-wire PVC cable
- Connector material: PUR with gray color
- Locking nut made of stainless steel (V4A/1.4404)
- Tightening torque: 0.6 Nm
- Cable diameter: 5 mm with conductor cross section 0.34 mm²
- Unshielded sensor/actuator cable
- Operating temperature range: Flexible use –5 °C to +80 °C, Stationary position –30 °C to +80 °C, Head –25 °C to +85 °C
- Enclosure rating: IP65 / IP67 / IP69K
- Chemical resistant to ECOLAB certified cleaning agents, not resistant to lactic acid & hydrogen peroxide
Professional Installation Requirements
- Installation should be performed by a qualified professional to ensure proper connection and compliance with electrical standards.
Applications
- Uncontaminated zones
- Hygienic and washdown zones
- Zones with chemicals
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable PUR and PVC materials extend product life reducing waste
- Chemical resistance reduces need for frequent replacements
- Compliant with China RoHS for restricted hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's warranty policy for details.
Available Now
The SICK DOL-1204-G05MNI sensor/actuator cable is available for immediate purchase, ideal for industrial automation and sensor connection applications.
