M12 4-Pin Sensor Cable | Female & Male Connectors | IP65/IP66K/IP67 Rated | by SICK
The M12 4-Pin Sensor Cable is designed for reliable connections in industrial automation and robotics. Featuring female and male connectors, this shielded cable is halogen-free and suitable for flexible use with a high bending radius. With an impressive operating temperature range from -40°C to +85°C and an IP65/IP66K/IP67 enclosure rating, it’s perfect for applications in uncontaminated zones and environments with oils and lubricants.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: M12 4-Pin Sensor Cable | Female & Male Connectors | IP65/IP66K/IP67 Rated | by SICK
Brand: SICK
SKU: 2121365
Alternatively Known As: M12 4-pin sensor cable, M12 actuator cable, SICK sensor connector cable, industrial sensor cable, robot sensor cable
Technical Specifications

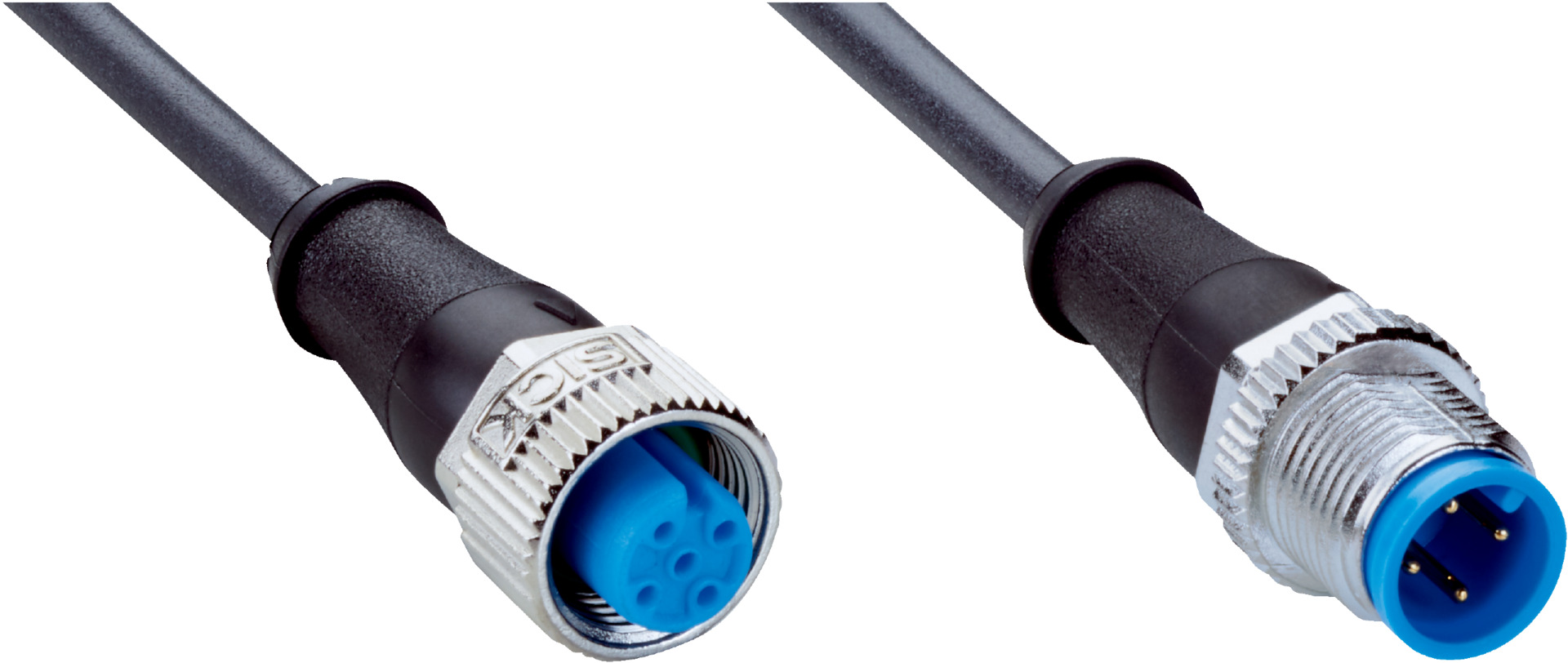

- Connection type head A: Female connector, M12, 4-pin, straight, A-coded
- Connection type head B: Male connector, M12, 4-pin, straight, A-coded
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Seal material: FKM
- Tightening torque: 0.6 Nm
- Cable length: 5 m
- Cable type: 4-wire, PUR, halogen-free
- Cable diameter: 5.3 mm
- Conductor cross section: 0.34 mm²
- Shielding: Shielded
- Bending radius: Flexible use > 10 x cable diameter
- Operating temperature: Flexible use -25°C to +80°C, Stationary -40°C to +80°C, Drag chain -25°C to +80°C, Head -25°C to +85°C
- Nominal voltage: 300 V AC
- Test voltage: 2000 V AC
- Rated impulse voltage: 1.5 kV
- Current loading: 4 A
- Traversing speed: 3.3 m/s
- Torsion cycles: 2,000,000
- Enclosure rating: IP65 / IP66K / IP67
- Insulation resistance: 100 MΩ
- Overvoltage category: III
- Flame retardant according to UL 1581 Section 1090 (H), CSA FT2 / IEC 60332-2-2
- Dimensions (H x L x W): 13mm x 5000mm x 13mm
- Weight: 0.15 kg
Key Features
- Female connector M12, 4-pin, straight, A-coded on head A
- Male connector M12, 4-pin, straight, A-coded on head B
- Screw connection locking plug
- Shielded sensor/actuator cable
- Halogen-free PUR jacket
- High bending radius suitable for flexible use and drag chain operation
- Operating temperature range from -40°C to +85°C depending on use
- IP65 / IP66K / IP67 enclosure rating
- Flame retardant according to UL 1581 Section 1090 (H), CSA FT2 / IEC 60332-2-2
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Uncontaminated zones
- Zones with oils and lubricants
- Robot applications
- Drag chain operation
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free cable jacket reduces harmful emissions in case of fire
- Durable materials extend product lifespan reducing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK YF2A24-050UB4M2A24 sensor/actuator cable is available for immediate purchase, ideal for industrial automation, robotics, and sensor connection applications.
