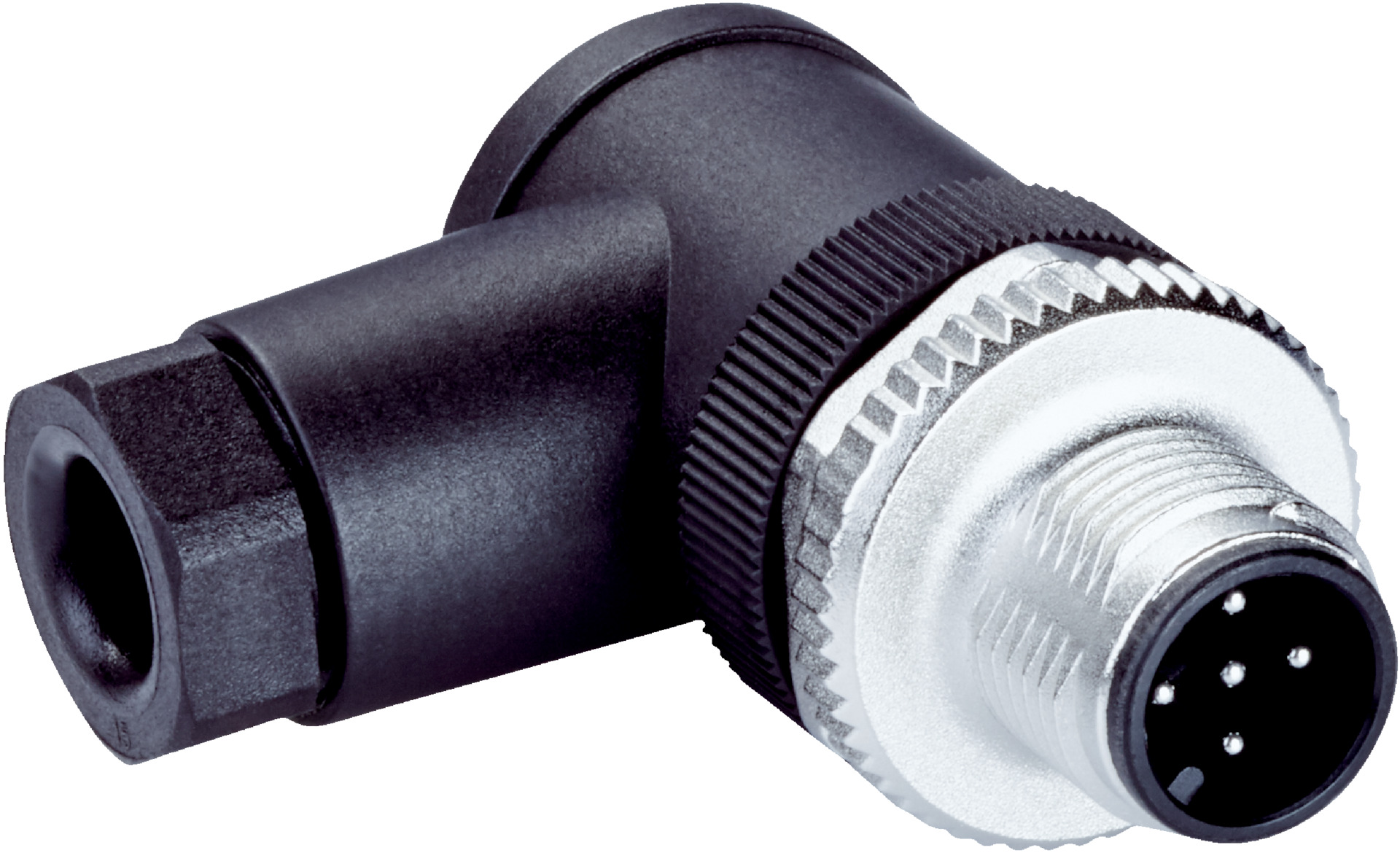

M12 5-Pin Angled Connector | IP67 Rated | Durable PBT Material | Screw-Type Terminals | by SICK
The M12 5-Pin Angled Connector is designed for reliable industrial automation and sensor connectivity. With an IP67 rating for dust and water protection, this connector features durable PBT material and screw-type terminals for secure wiring. Ideal for field bus technology applications, it operates in extreme temperatures from -40 °C to +85 °C, ensuring long-lasting performance in harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: M12 5-Pin Angled Connector | IP67 Rated | Durable PBT Material | Screw-Type Terminals | by SICK
Brand: SICK
SKU: 6022082
Alternatively Known As: M12 5-pin angled connector, Male M12 connector, Industrial sensor connector
Technical Specifications
- Connection type head A: Male connector, M12, 5-pin, angled, A-coded
- Connection type: Screw-type terminals
- Connector material: PBT
- Connector color: Black
- Locking nut material: CuZn
- Tightening torque: 0.6 Nm
- Shielding: Unshielded
- Permitted cross-section: ≤ 0.75 mm²
- Reference voltage: ≤ 125 V
- Current loading: 4 A
- Enclosure rating: IP67
- Operating temperature: -40 °C to +85 °C
- Authorizations: UL (UL File No. E335179)
- Dimensions (H x L x W): 20mm x 40mm x 20mm
- Weight: 0.1 kg
Key Features
- Male connector, M12, 5-pin, angled, A-coded
- Screw-type terminals for secure wiring
- Connector material: durable PBT
- Locking nut made of CuZn for reliable fastening
- IP67 rated enclosure for dust and water protection
- Operating temperature range from -40 °C to +85 °C
- UL certified (UL File No. E335179)
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Field bus technology connections
- Industrial automation and sensor connectivity
- Machine and equipment wiring requiring IP67 rated connectors
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials reduce replacement frequency and waste
- IP67 rating ensures long service life in harsh environments
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy.
Available Now

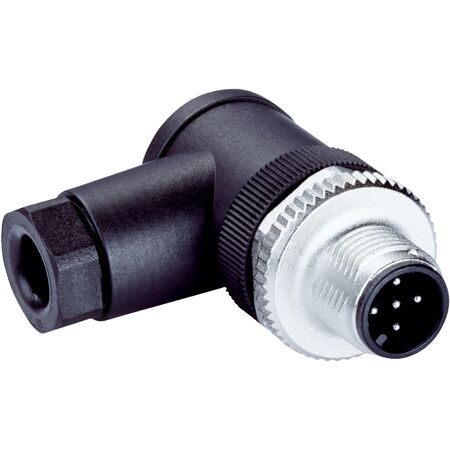

The SICK STE-1205-W Male M12 5-Pin Angled Connector is available for immediate purchase, ideal for industrial automation and field bus technology applications.
