M12 5-Pin Cable Assembly | Shielded & Halogen-Free | IP65/IP66K/IP67 Rated | by SICK
The M12 5-pin cable assembly is designed for industrial automation, featuring female and male connectors with a secure screw locking mechanism. This shielded cable, with a halogen-free PUR jacket, is perfect for drag chain operations and fieldbus communication systems, ensuring reliable connectivity in harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications

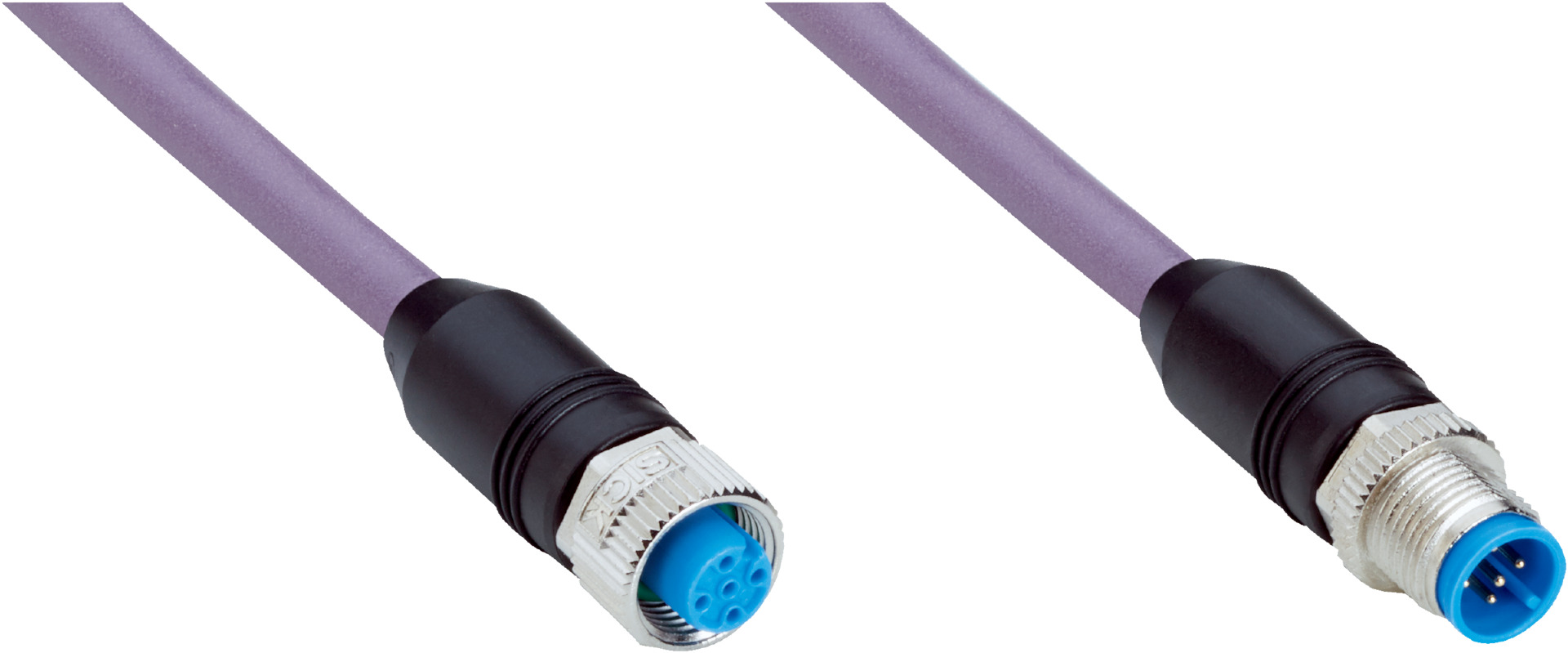

- Connection type head A: Female connector, M12, 5-pin, straight, A-coded
- Connection type head B: Male connector, M12, 5-pin, straight, A-coded
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Seal material: FKM
- Tightening torque: 0.6 Nm
- Cable length: 10 m
- Cable type: 4-wire, PUR, halogen-free
- Cable diameter: 6.9 mm
- Conductor cross section: 0.25 mm² + 0.35 mm² + 1 x drain wire
- Shielding: Shielded
- Bending radius: Flexible use > 10 x cable diameter, Stationary position > 6 x cable diameter, Drag chain operation > 10 x cable diameter
- Operating temperature: Flexible use -30 °C to +70 °C, Stationary position -40 °C to +80 °C, Drag chain operation -30 °C to +80 °C, Head -25 °C to +85 °C
- Nominal voltage: 300 V AC
- Test voltage: 2000 V AC
- Rated impulse voltage: 1.5 kV
- Current loading: 4 A
- Traversing speed: 3 m/s
- Travelling distance: 5 m
- Acceleration: ≤ 5 m/s²
- Signal type: Fieldbus, CANopen, DeviceNet™
- Enclosure rating: IP65 / IP66K / IP67
- Contamination rating: 3
- Insulation resistance: > 100 mΩ
- Overvoltage category: III
- Thermal resistance: Flame retardant acc. to UL 1581 Section 1090, Section 1100 (FT2) / IEC 60332-1-2
- Dimensions (H x L x W): 13mm x 10000mm x 13mm
- Weight: 0.2 kg
Key Features
- Female and male M12, 5-pin, straight, A-coded connectors
- Screw locking plug connector for secure connection
- Shielded cable with PUR halogen-free jacket in violet color
- High bending radius suitable for flexible and drag chain use
- Operating temperature range from -40 °C to +85 °C depending on use
- Rated for 4 A current loading and 300 V AC nominal voltage
- Enclosure rating IP65 / IP66K / IP67 for robust protection
- Flame retardant cable according to UL 1581 and IEC 60332-1-2
- 1,000,000 bending cycles durability
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician experienced with industrial fieldbus cabling to ensure proper connection and compliance with safety standards.
Applications
- Drag chain operation in industrial automation
- Zones with oils and lubricants
- Fieldbus communication systems including CANopen and DeviceNet™
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free PUR jacket reduces harmful emissions in case of fire
- Durable design reduces replacement frequency and waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now

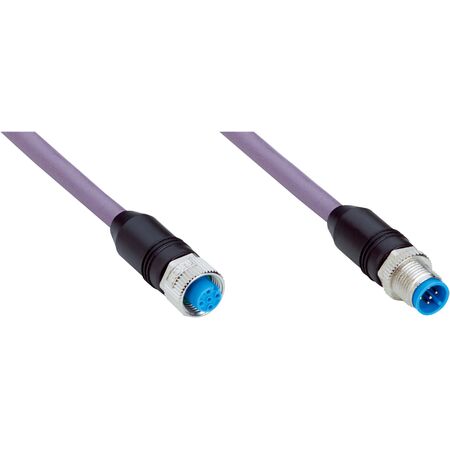

The SICK YF2A15-100C1BM2A15 cable assembly is available for immediate purchase, ideal for industrial automation and drag chain applications requiring robust and reliable connectivity.
